Product Features

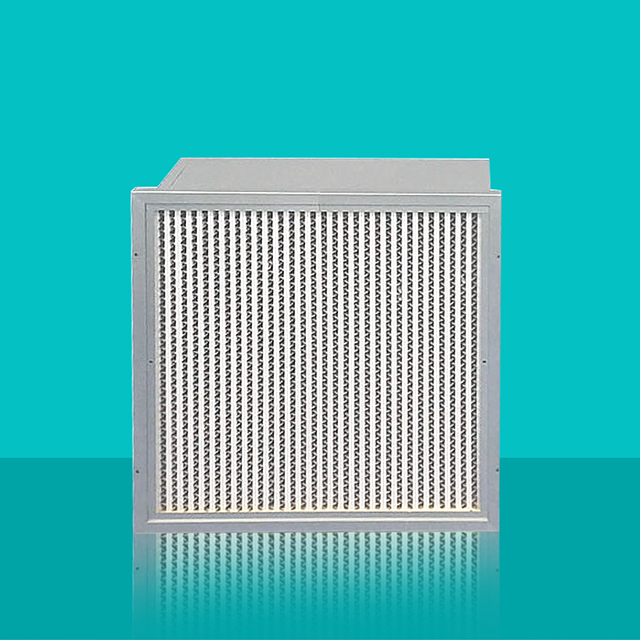

FeinAir I medium-efficiency separator box filter is widely used in the medium-efficiency filtration section of ventilation systems for various industrial, commercial and civil buildings for its extended filter surface of high air volume, compact structure and light weight.
Preferred material, sturdy structure, easy transportation and installation.
The high-quality fiberglass filter paper is used, with coarser fibers on the inlet side and finer fibers on the outlet side. It can make full use of the area and depth of the filter media to maximize the dust holding capacity, thus extending the service life of the filter and reducing operating costs.
The extended filter surface with corrugated aluminum separator maintains a uniform fold space and increases the strength of the filter to adapt to the pressure on the filter caused by various air volume changes. It also effectively prevents damage to the filter in transit. Smaller thickness and sturdy construction make it easier to install and disassemble.
Specifications
| Outer frame | Galvanized frame (wooden frame, aluminum frame and stainless steel frame, optional) | ||||||||||||||||||
| Filter media | Fiberglass filter media | ||||||||||||||||||
| Flange structure | Single flange, double flange, no flange | ||||||||||||||||||
| Filtration efficiency | M6/F 7/F8/F9(EN779) | ||||||||||||||||||
| Fire rating | Undergoing UL900 certification | ||||||||||||||||||
| Continuous operating temperature | ≤70℃ | ||||||||||||||||||
| Suggested final resistance | 292MM≤445Pa 150MM≤360Pa | ||||||||||||||||||
| Main applications | Medium filtration of ventilation and air conditioning systems for commercial and industrial use | ||||||||||||||||||
| Sealant | Polyurethane adhesive | ||||||||||||||||||

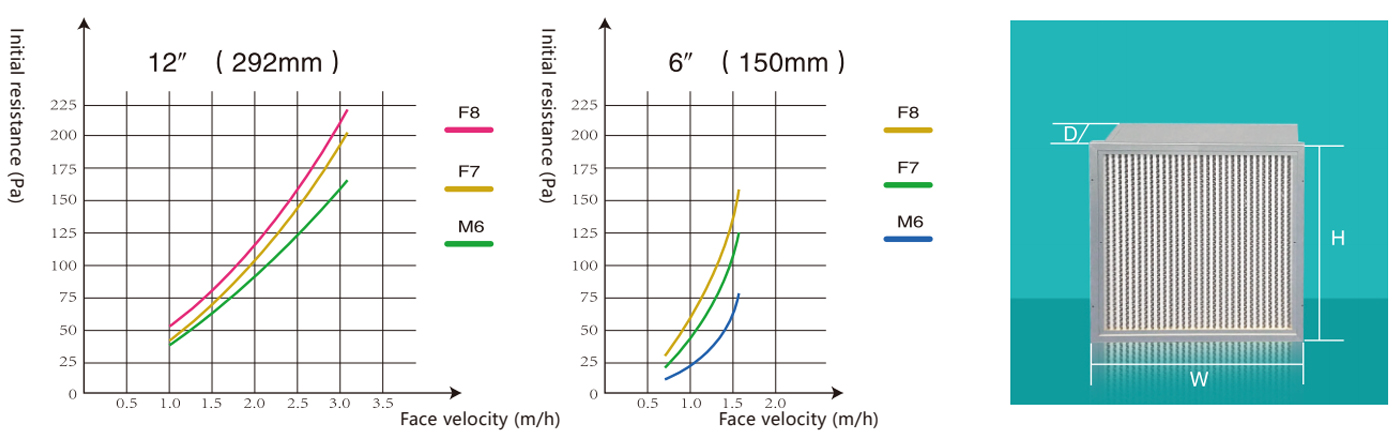

Initial resistance - air speed relationship graph

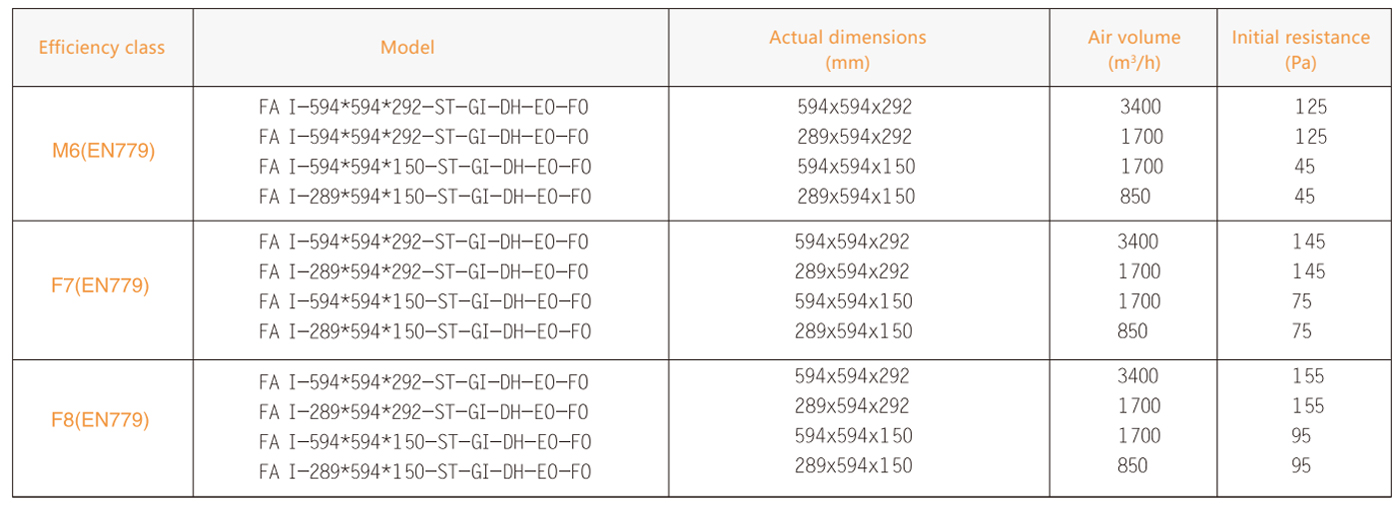

Dimensions (rated initial resistance: ±+15%, non-standard dimensions can be customized)
Naming Rules

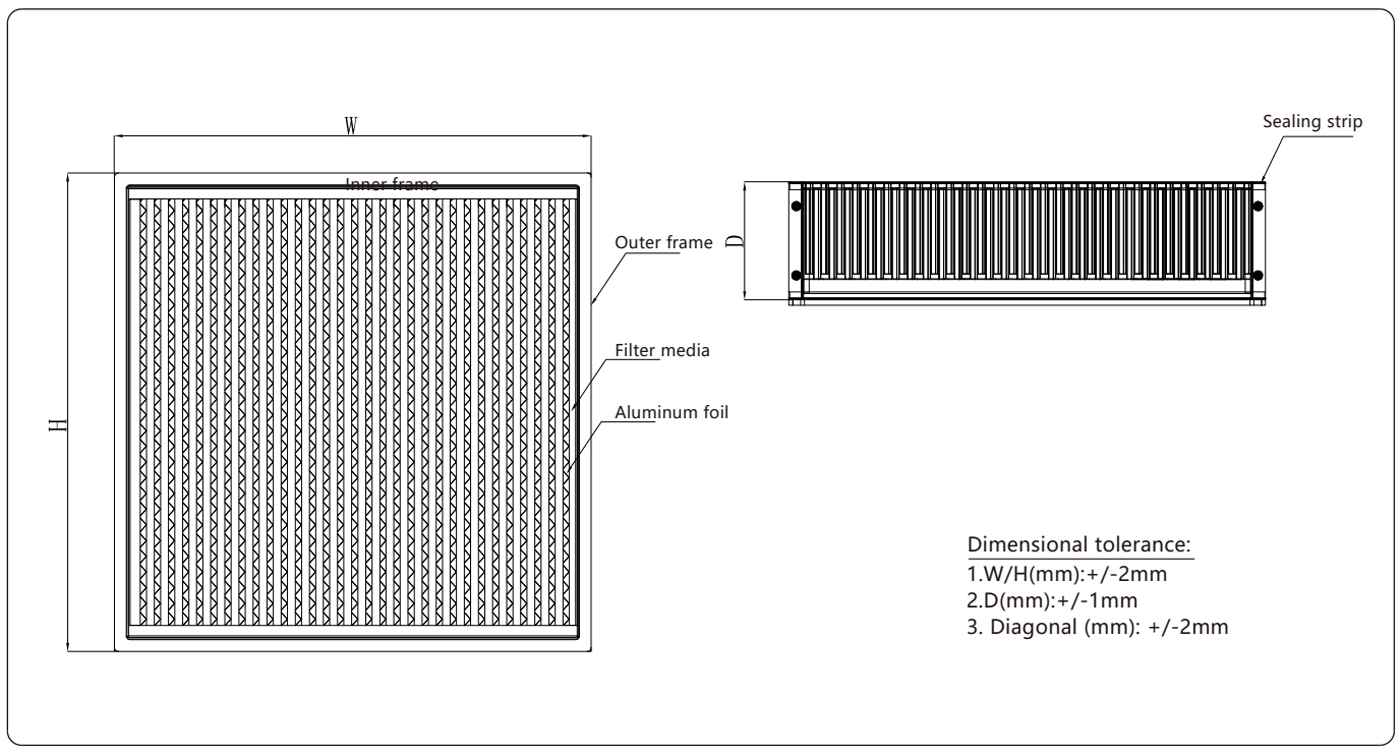

Drawing
