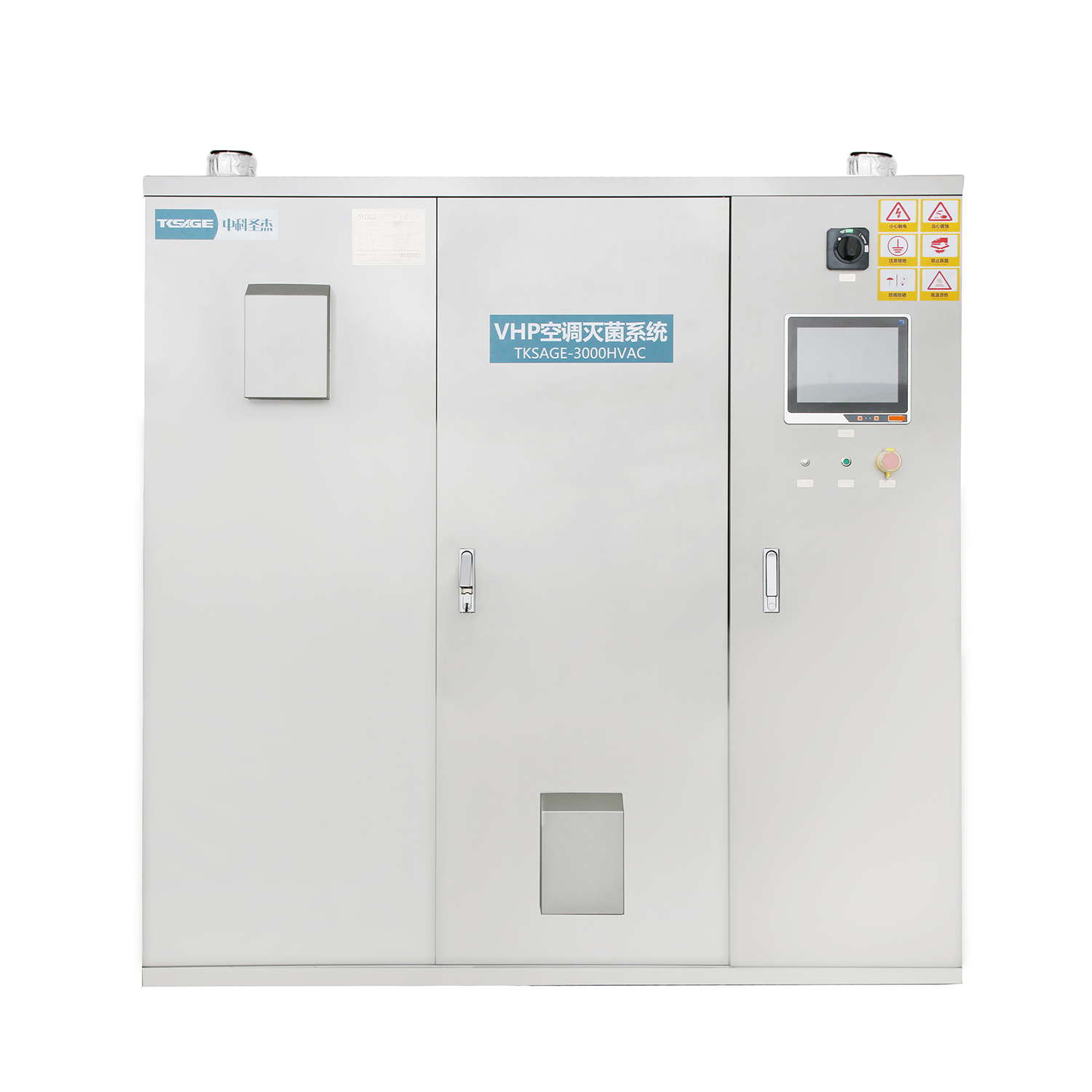

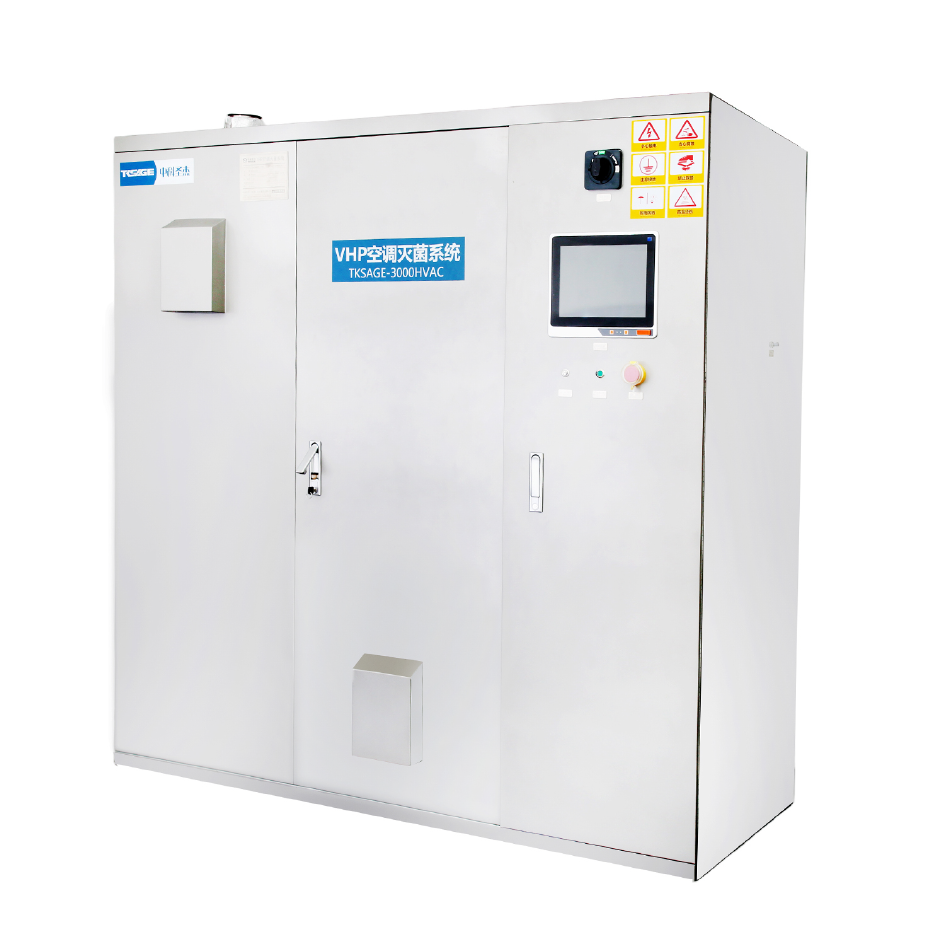

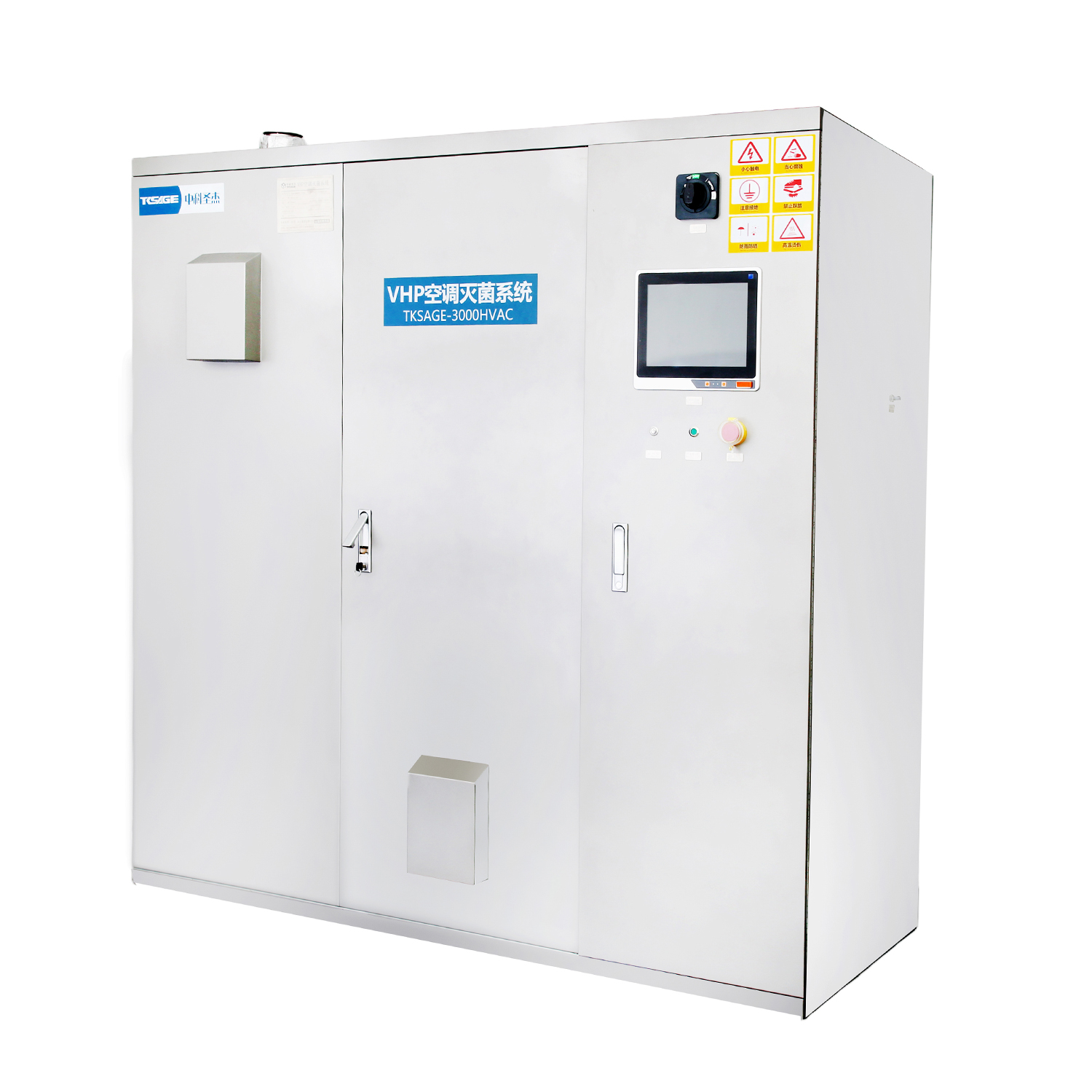

VHP HVAC Sterilization System
The CIGEAIR-HVAC series VHP sterilizer adopts flash vaporization technology, which vaporizes 30%-35% hydrogen peroxide and then quickly and evenly distributes it in the sterilization space through the HVAC system, realizing space 6LOG sterilization without dead end; after the sterilization, the hydrogen peroxide can be rapidly degraded with no residue and no toxicity. The system adopts modular design with four parallel groups of VHP generation modules to ensure the reliability of the system; the sterilization process is controlled by saturation and dew point to ensure the vaporization state of hydrogen peroxide. The overall equipment is made of stainless steel, which is smooth in appearance without dead ends; through the user-friendly operating interface, users can quickly master the operating skills; the system's project management and implementation team can provide services from design, production, installation, commissioning, parameter development to verification, and can complete turnkey projects in the field of pharmaceutical, biosafety, medical and public safety.
Pre-order now to make sure you do not miss out! As soon as it's in stock, we will ship it to you.
VHP Space Sterilization System adopts low-temperature flash evaporation technology, delivering Log6-level broad-spectrum sterilization with strong gas penetration and no dead zones. It features closed-loop intelligent concentration control and catalytic degradation for ultra-low residue and good material compatibility. Fully automatic operation with traceable sterilization data meets high-level validation requirements for GMP, P3 laboratories and pharmaceutical cleanrooms. Modular design adapts to spaces ranging from small enclosures to large workshops and full air duct sterilization.
CIGEAIR-3000 Parameter Table
The below parameters are for preliminary engineering discussion. Final capacity, utilities, dimensions, control functions, and performance limits must be confirmed by the project technical specification and approved design documents.

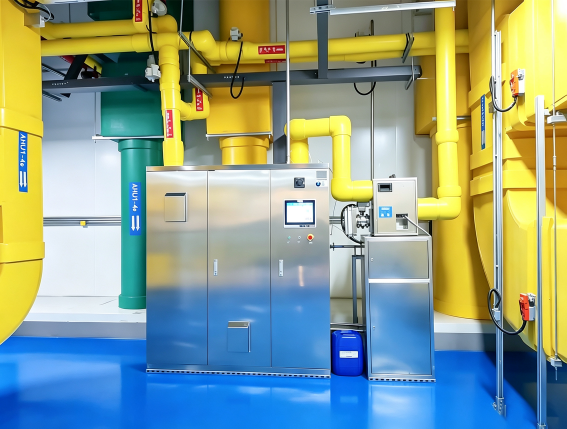

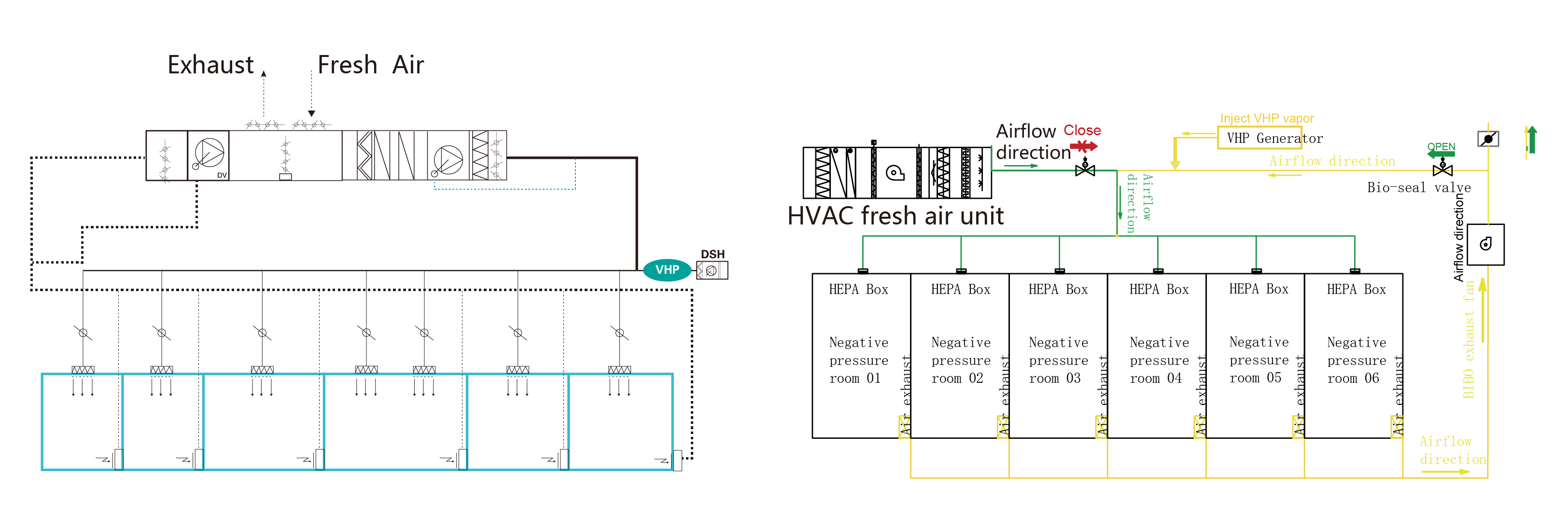

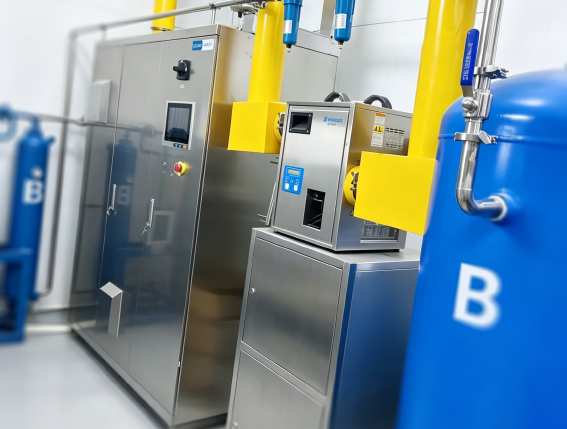

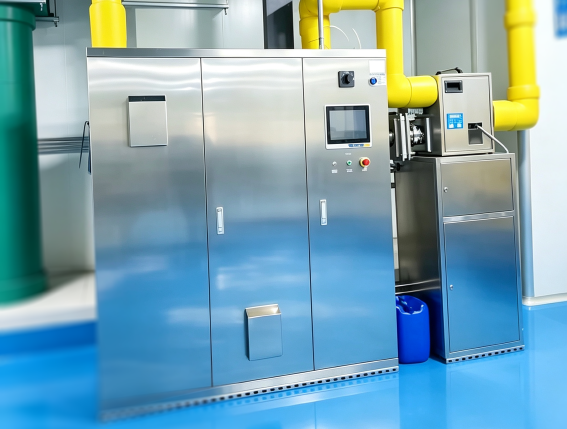

Installation and connection method
1.A/B/C clean area sterilization
2.P3 workshop sterilization
Humidity Management

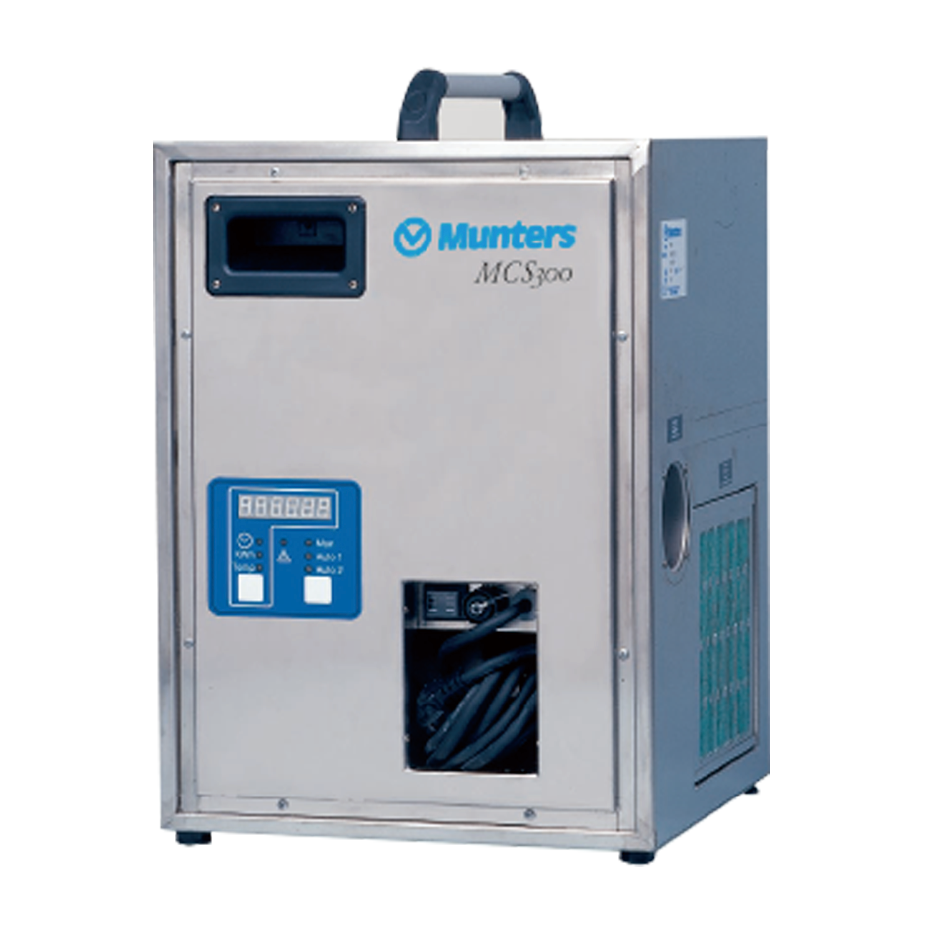

Dehumidifier
Ensure that the fresh air humidity
is lower than 30%
Process Monitoring and Control

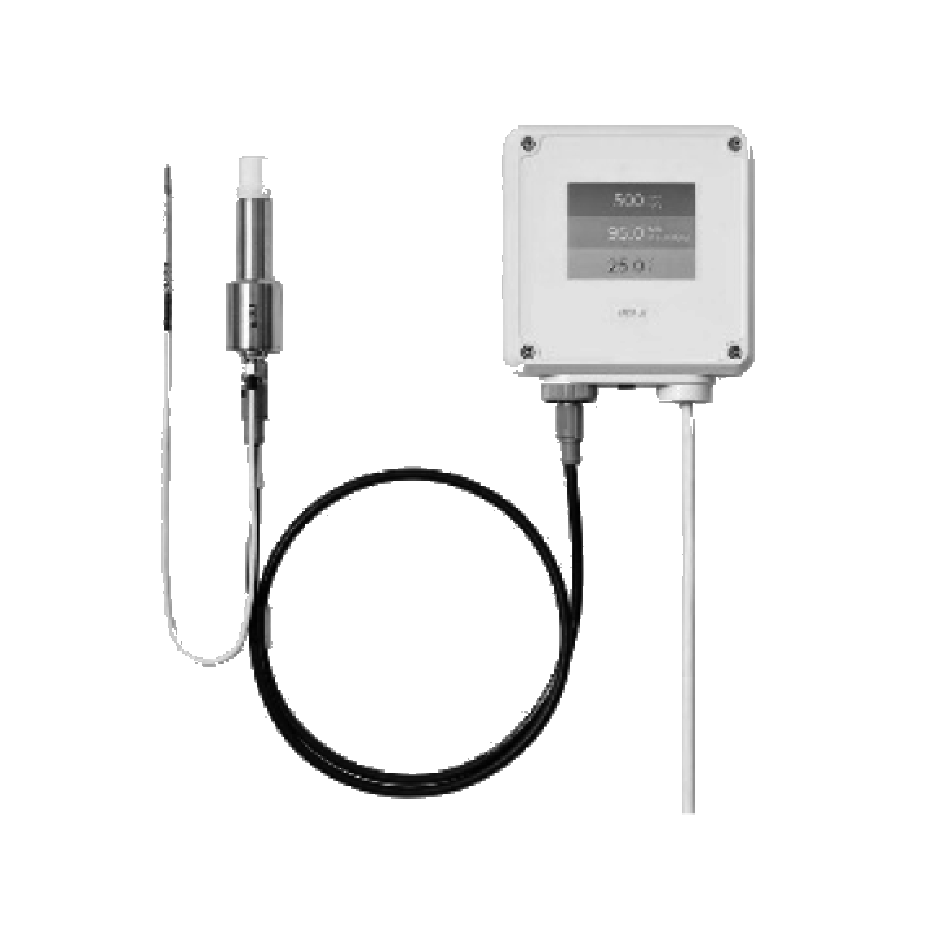

Process temperature, humidity, and concentration monitoring
Process saturation control
Process cold point and dew point control
Modular VHP Generation
160g/min generating capacity
30KW generation power
1000CMH delivery air volume
Design Considerations
Control of hydrogen peroxide vaporization state throughout the sterilization process
Hydrogen peroxide generation: Ensure that the hydrogen bond is completely broken and flash evaporation is adopted
Hydrogen peroxide delivery: Fresh air temperature, humidity and air volume, pipeline preheating, and pipeline airtightness
Process control: Saturation, dew point control and cold point control
Coordination of HVAC system
Cyclic or non-cyclic
Disinfection mode: Dehumidification - cut off chilled water to restore room temperature - frequency reduction (about 10 times)
Air duct tightness - Material of air duct sealing ring (neoprene)

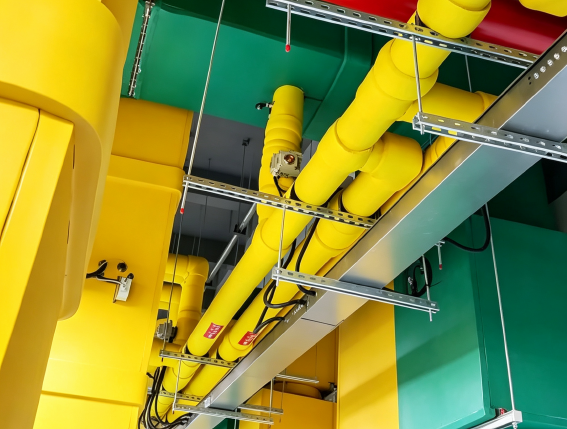

VHP delivery line requirements
Pay attention to geographical and seasonal variations

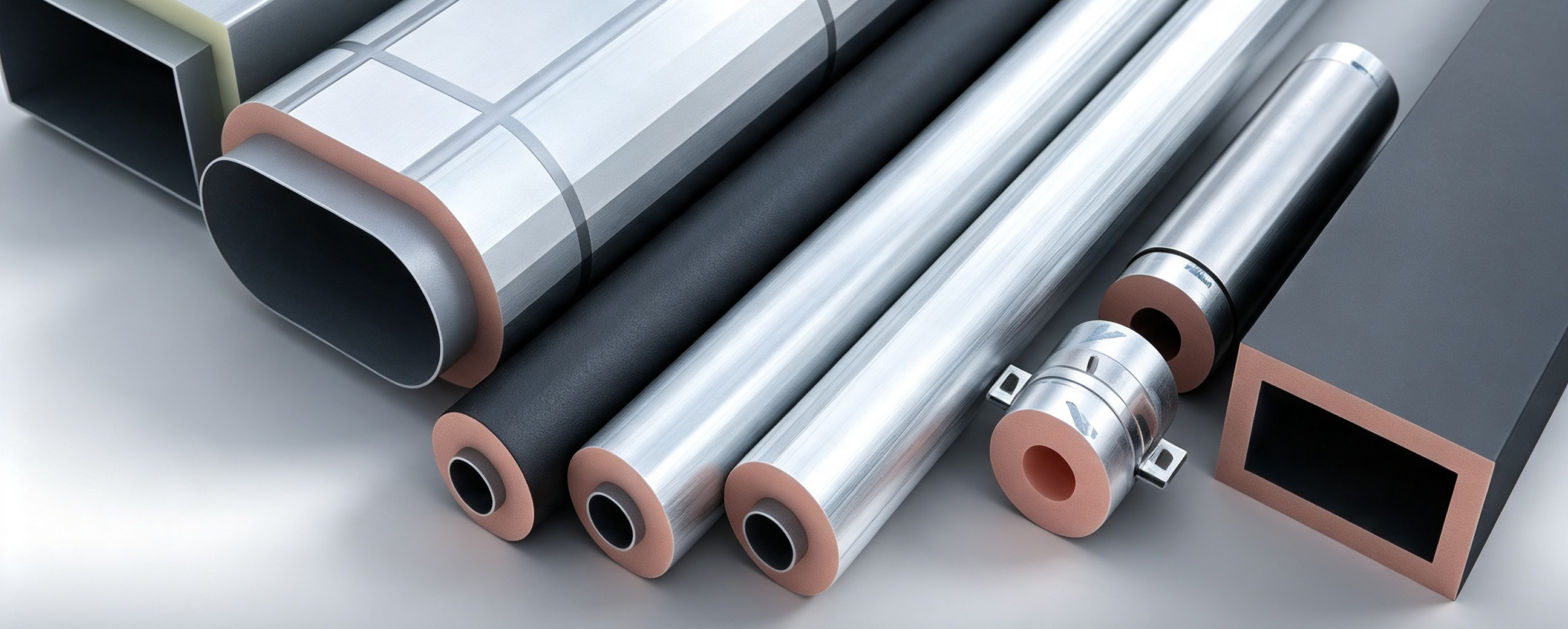

Pipeline insulation, sealing and corrosion resistance
Get A Quote
You can contact us any way that is convenient for you. We are available 24/7 via email.
You can also use a quick contact form below or visit our office personally.
FAQ
What if VHP generator fails to vaporize with no hydrogen peroxide vapor output?
What if VHP generator fails to vaporize with no hydrogen peroxide vapor output?
A: It is a fault of VHP generation unit. The generator cannot fully vaporize H₂O₂, no VHP enters HVAC circulation pipeline, and sterilization cycle cannot start normally.
What deviation will occur if H₂O₂ feed pump is abnormal and liquid supply flow is lower than setpoint?
What is the impact if trace heating of VHP pipeline fails and hydrogen peroxide condenses inside pipeline?
What consequence will occur when room relative humidity exceeds process window during sterilization?
What type of deviation is it if room temperature exceeds allowable range during sterilization?
