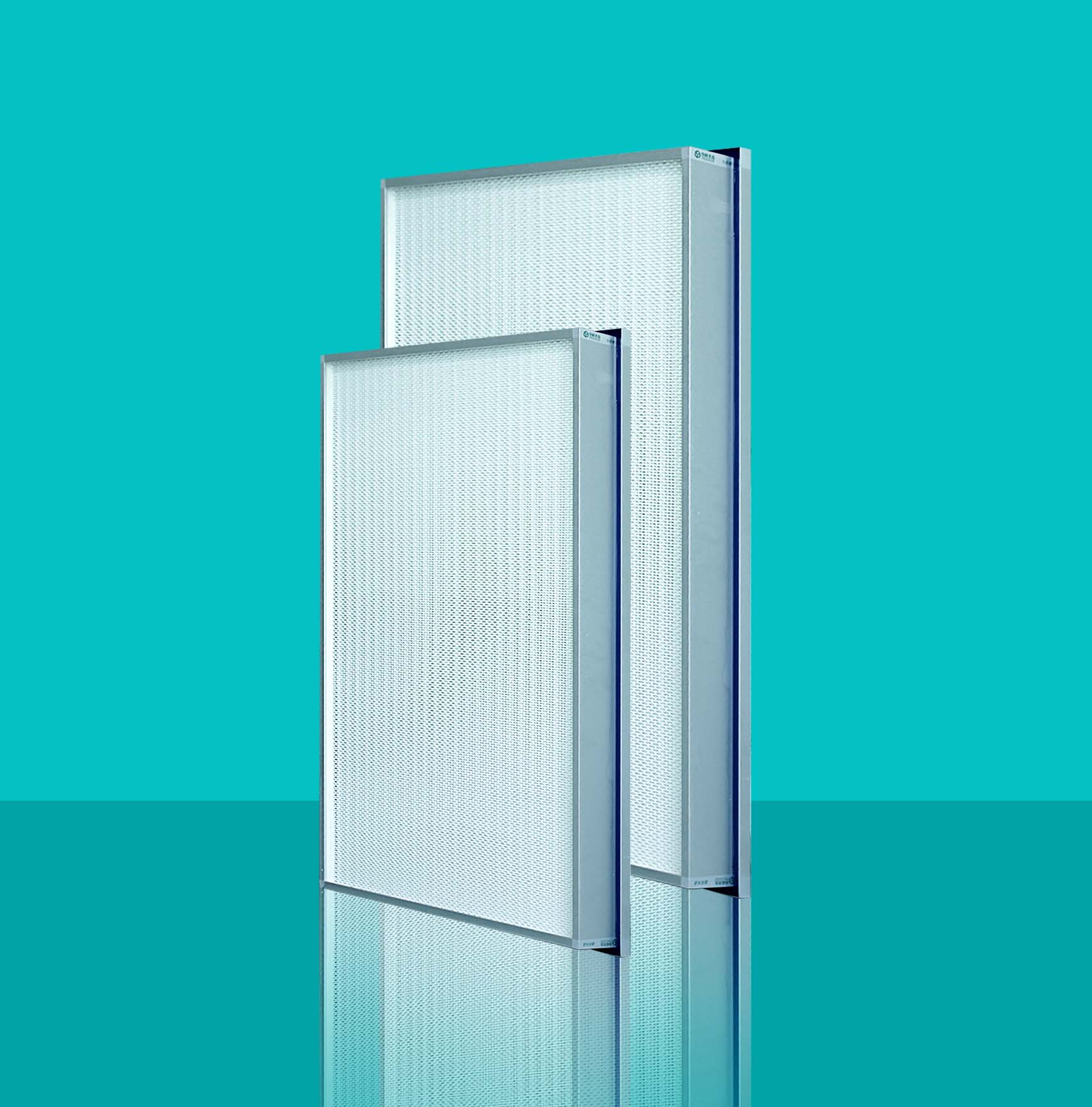

PuriCel Ⅱ GEL
TKSAGE
| Quantity: | |
|---|---|
Product features
Gel seal design to ensure perfect sealing By adopting international brand gel seal design, the filter has excellent chemical stability, corrosion resistance, mildew resistance, bacteria resistance and moderate hardness. Even after repeated assembly and disassembly, it can still maintain a good seal after a period of time. Strictly selected materials, with very low chemical volatilization All components are made of very low chemical volatile materials to meet the requirements of conventional cleanrooms for air filtration equipment. Compact structure, easy installation and replacement The PuriCel II GEL frame is made of flanged aluminum profile, and the imported phosphorus-free polyurethane adhesive is used to seal the waterproof and flame-retardant fiberglass filter element which is spaced by hot melt adhesive, supplemented by the surface protective mesh, gel sealant and other components. It features a compact structure, small and light, easy installation and replacement. Separator-free structure, with low resistance and good energy saving | |
The specially designed hot melt adhesive is used to separate the HEPA filter paper to ensure the same and reasonable spacing between the filter paper, which can make full use of the filter paper to achieve uniform air speed and low resistance.
Testing efficiency according to EN1822
According to EN1822 standard, the PMS laser particle counter and PSL test particles are used to test the efficiency of the filter using the most penetrating particle size (MPPS) method to ensure that the filter efficiency meets requirements. An online test report is also available.
Specifications
| Outer frame | Aluminum oxide extruded profile | ||||||||||||||||||||||||||||||
| Filter media | Moisture-proof and flame-retardant fiberglass filter media | ||||||||||||||||||||||||||||||
| Filter media separator | Hot melt adhesive | ||||||||||||||||||||||||||||||
| Filtration efficiency | H13/H14/U15/U16/U17(EN1822) | ||||||||||||||||||||||||||||||
| Fire rating | UL900 | ||||||||||||||||||||||||||||||
| Continuous operating temperature | ≤70°C | ||||||||||||||||||||||||||||||
| Suggested final resistance | ≤500Pa | ||||||||||||||||||||||||||||||
| Sealant | Flame retardant phosphorus-free polyurethane adhesive | ||||||||||||||||||||||||||||||
| Protective mesh | Sprayed steel mesh, aluminum alloy mesh, and stainless steel mesh | ||||||||||||||||||||||||||||||
| Main applications | High-level electronic, biological, pharmaceutical cleanrooms, air purification equipment and other places that require strict control of air pollutants | ||||||||||||||||||||||||||||||

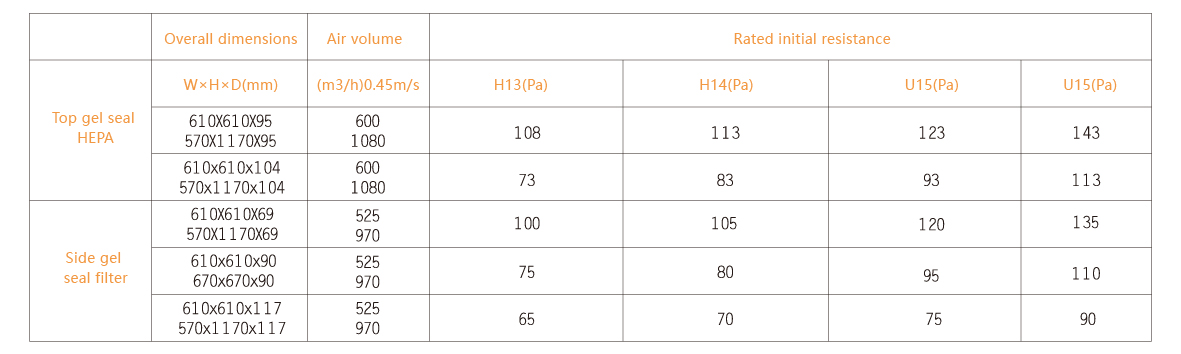

Dimensions

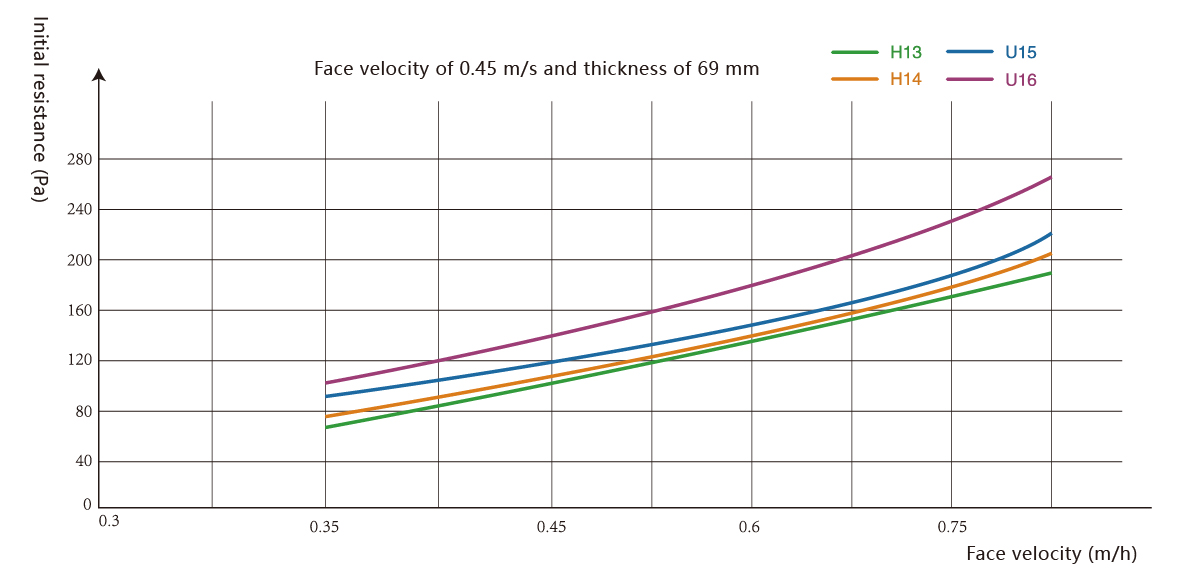

Initial resistance - air speed relationship graph

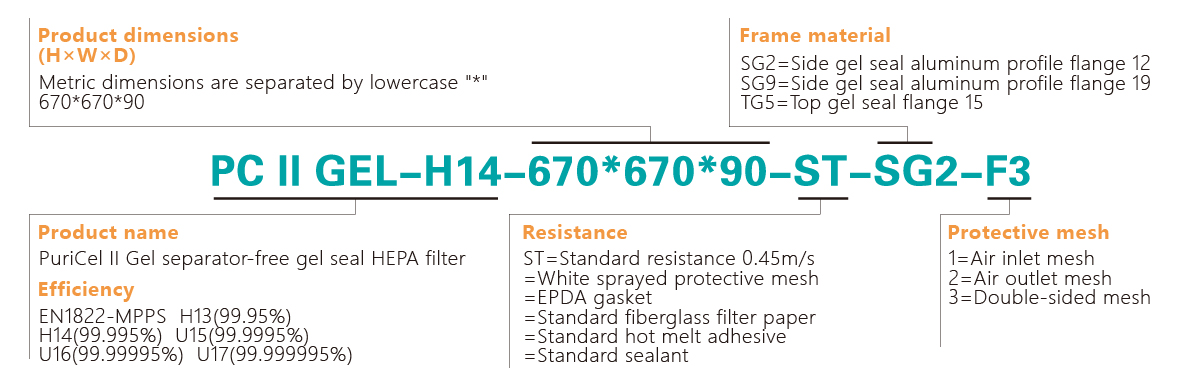

Naming Rules

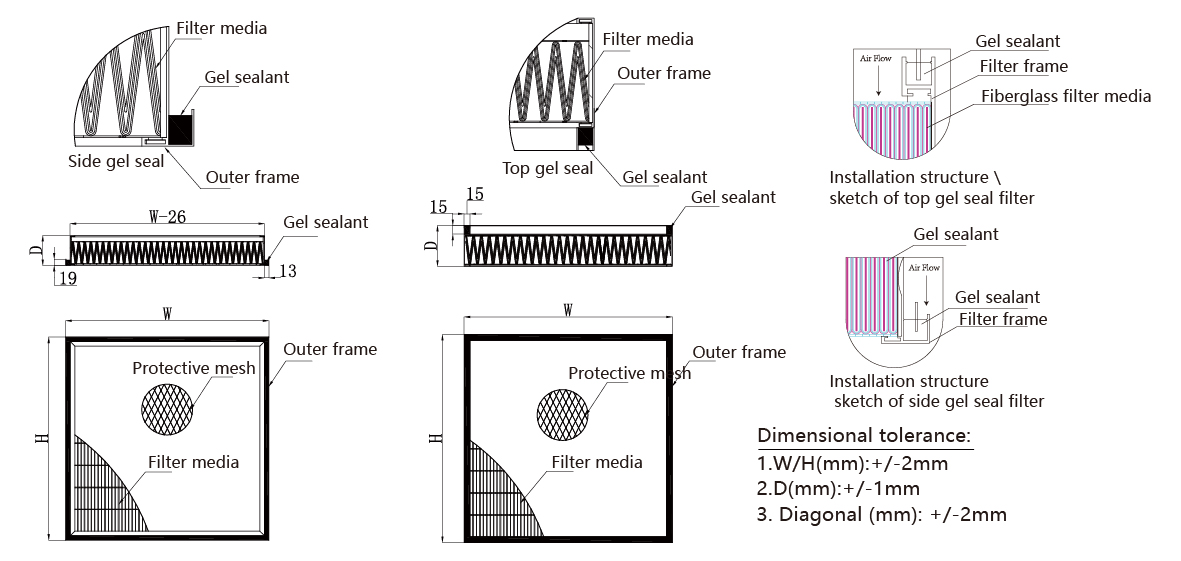

Drawing
