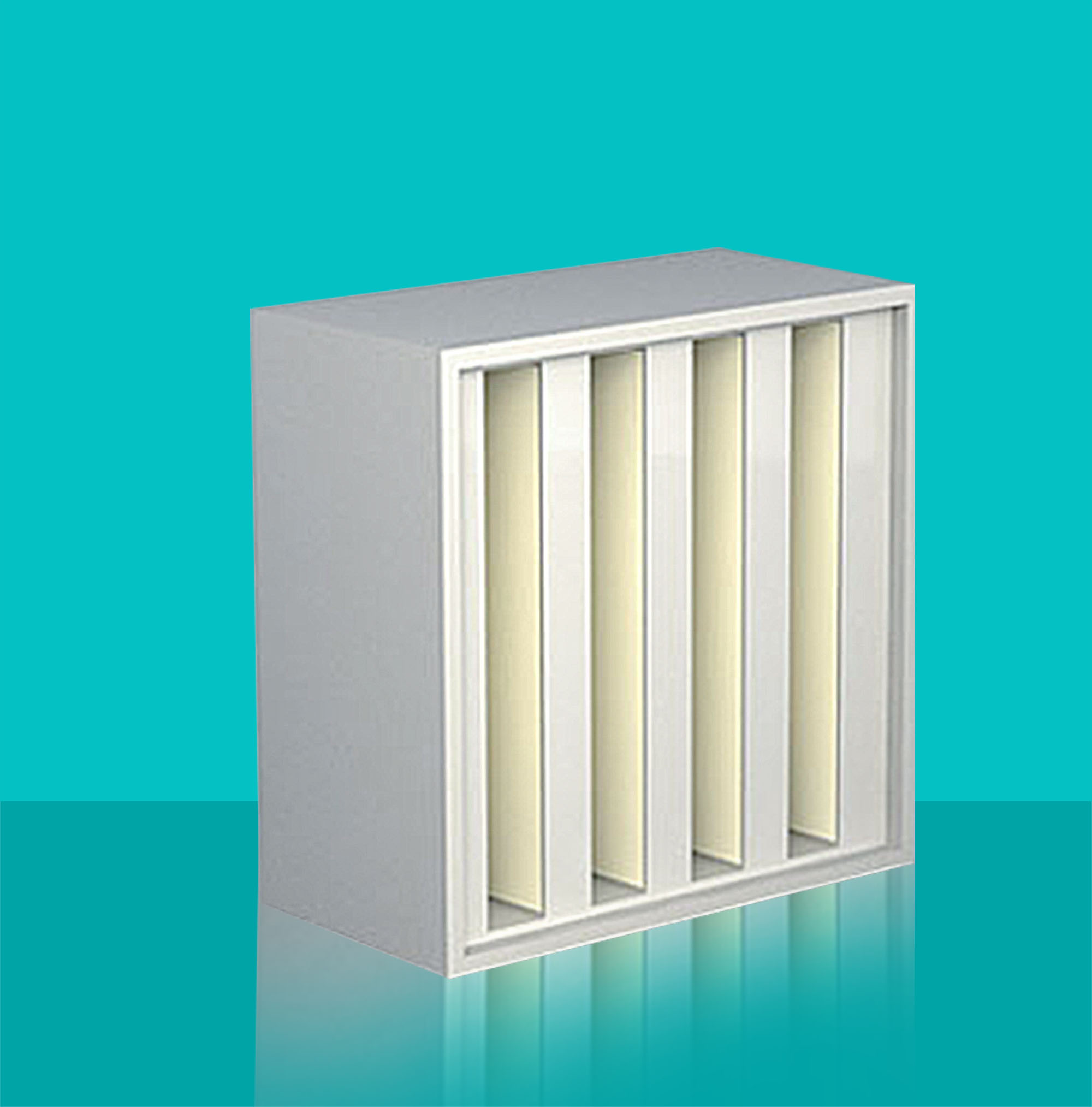

PuriCel Ⅲ
Cigeair
| Quantity: | |
|---|---|
Product features
Excellent design, high-density filter media, and targeted filtration PuriCel II HEPA filter has excellent filtration of tiny particles in the air. The filter element is made of high-quality fiberglass filter media (pleated) with a linear hot melt adhesive strip separator to minimize the resistance to air. V-shaped structure assembly is adopted to hold more filter media. Air volume up to 4000 m/h, saving installation space PuriCel II is designed with higher air volume for high air volume environments, so the number of filters used in the fresh air system is reduced under the same air volume, saving space and reducing energy consumption. In existing systems, the PuriCel II's large filter area ensures a low resistance and reduced operating costs. | |
Specifications
| Outer frame | Galvanized frame or stainless steel frame | ||||||||||||||||||||||||||||||
| Filter media | Moisture-proof and flame-retardant ultra-fine fiberglass | ||||||||||||||||||||||||||||||
| Product thickness | 292mm | ||||||||||||||||||||||||||||||
| Filtration efficiency | H13/H14(EN1822) | ||||||||||||||||||||||||||||||
| Fire rating | Undergoing UL900 certification | ||||||||||||||||||||||||||||||
| Continuous operating temperature | ≤70°C | ||||||||||||||||||||||||||||||
| Suggested final resistance | ≤600Pa | ||||||||||||||||||||||||||||||
| Main applications | Commercial and industrial ventilation and cleanrooms Final filtration of ventilation and air conditioning systems | ||||||||||||||||||||||||||||||
| Sealant | Flame retardant phosphorus-free polyurethane adhesive | ||||||||||||||||||||||||||||||

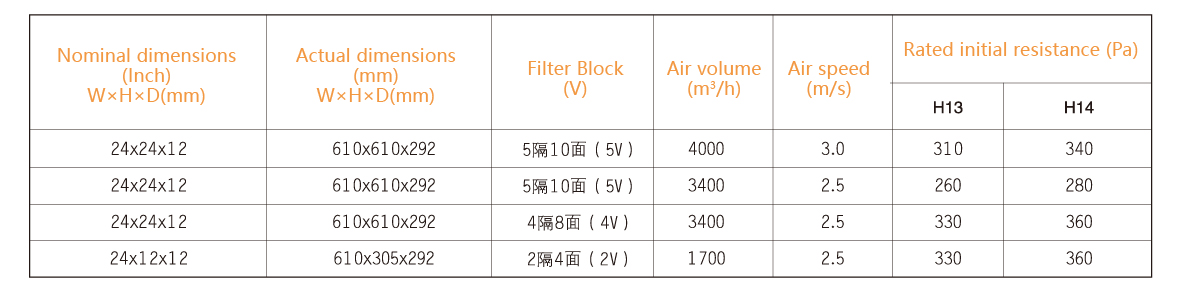

Dimensions

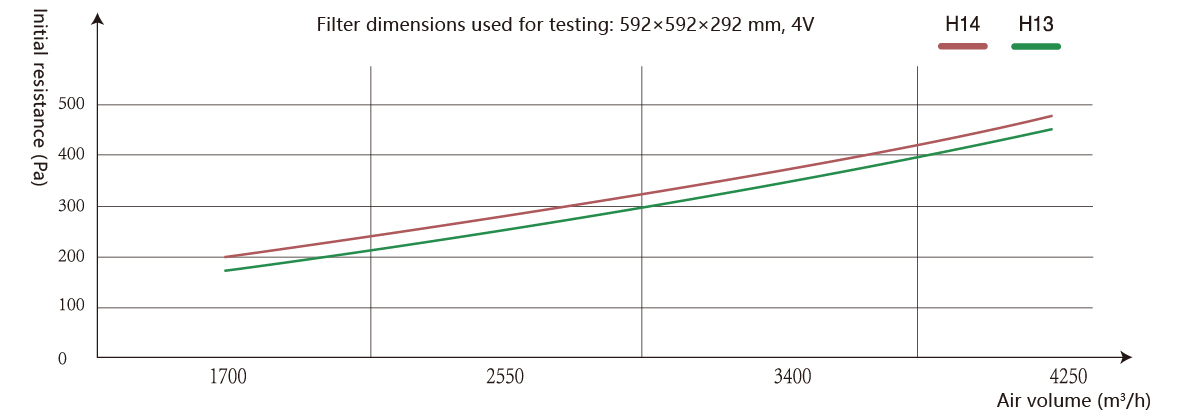

Initial resistance - air speed relationship graph

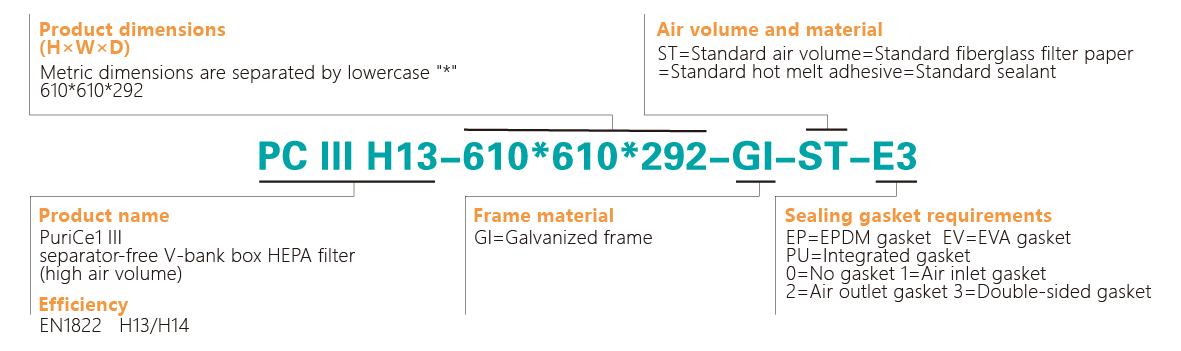

Naming Rules

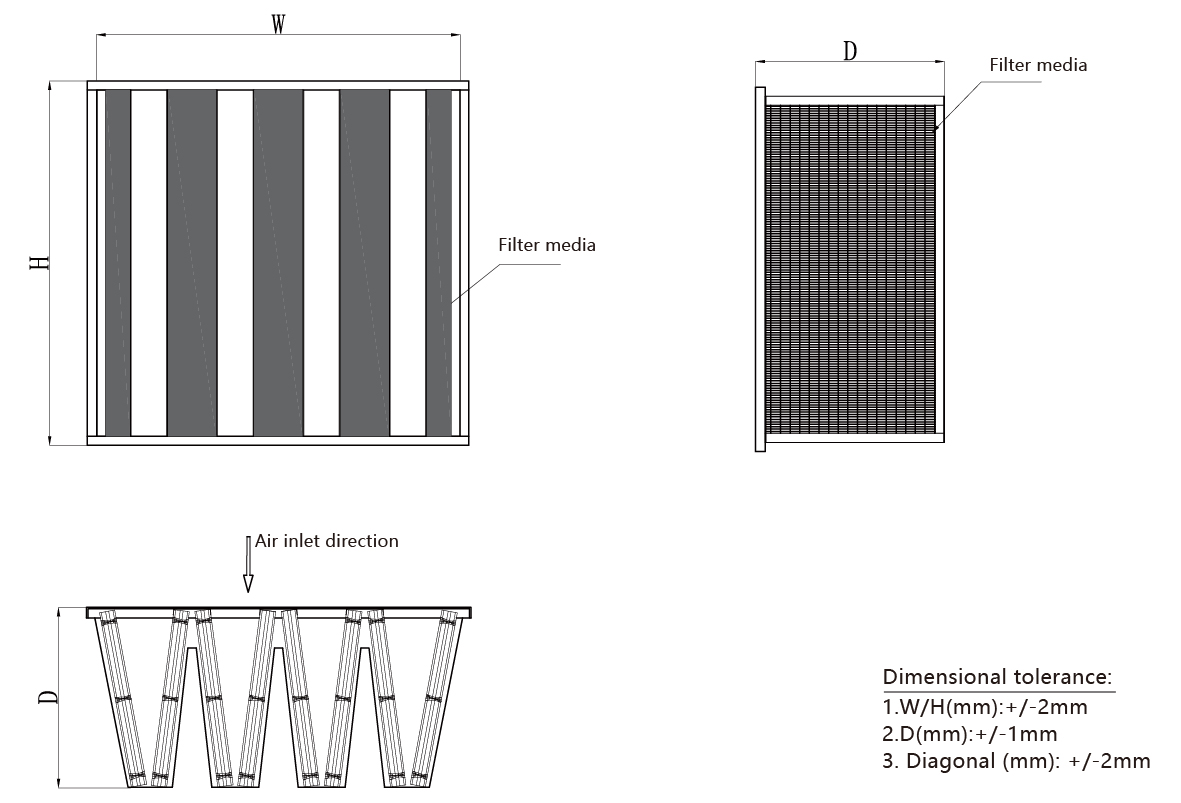

Drawing
