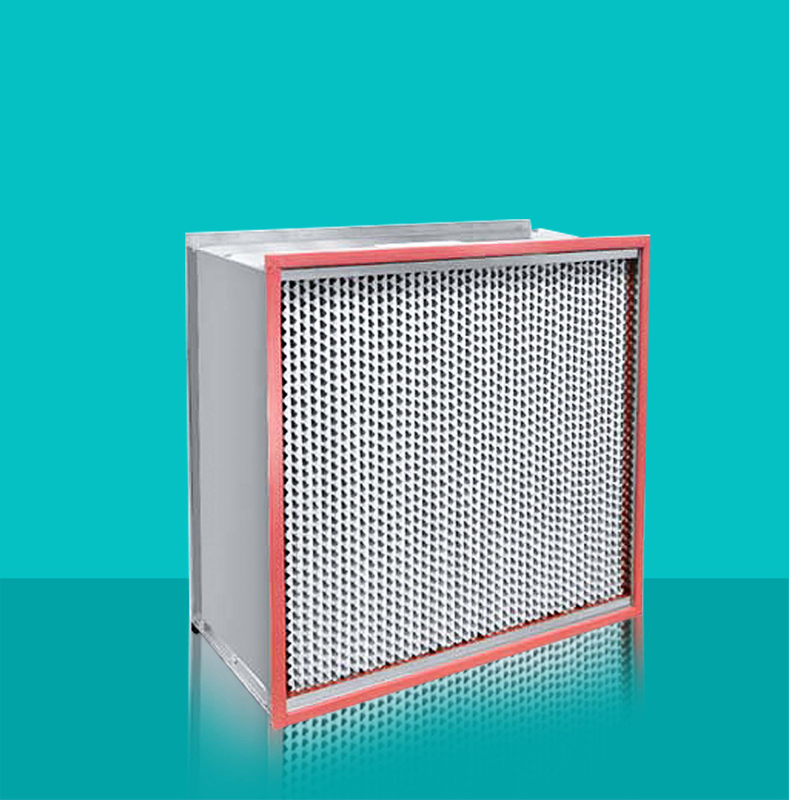

PuriCel Ⅰ HT
TKSAGE
| Quantity: | |
|---|---|
Product features
Wedge-shaped pleated layer design to prevent damage to the filter media; ultra-fine fiberglass high-density filter paper, featuring water resistance and flame retardancy; 100% leak-free, with product assembly and test being performed in a controlled clean environment; high temperature-resistant design, suitable for high-temperature environments. | |
Specifications
| Outer frame | Galvanized frame or stainless steel frame | ||||||||||||||||||||||||||||||
| Filter media | Special ultra-fine fiberglass filter paper | ||||||||||||||||||||||||||||||
| Product thickness | 150mm/292mm/220mm | ||||||||||||||||||||||||||||||
| Filtration efficiency | H13(EN1822) | ||||||||||||||||||||||||||||||
| Fire rating | Undergoing UL900 certification | ||||||||||||||||||||||||||||||
| Maximum service temperature | ≤150℃、≤250℃ | ||||||||||||||||||||||||||||||
| Suggested final resistance | ≤500Pa | ||||||||||||||||||||||||||||||
| Main applications | High temperature-resistant purification equipment and special high-temperature air supply systems, widely used in pharmaceutical, medical, chemical, food, coating and other industries | ||||||||||||||||||||||||||||||
| Sealant | High-temperature silicone | ||||||||||||||||||||||||||||||
| Protective mesh | Stainless steel mesh and aluminum oxide mesh (optional) | ||||||||||||||||||||||||||||||
| Sealing gasket | High temperature-resistant silicone rubber | ||||||||||||||||||||||||||||||

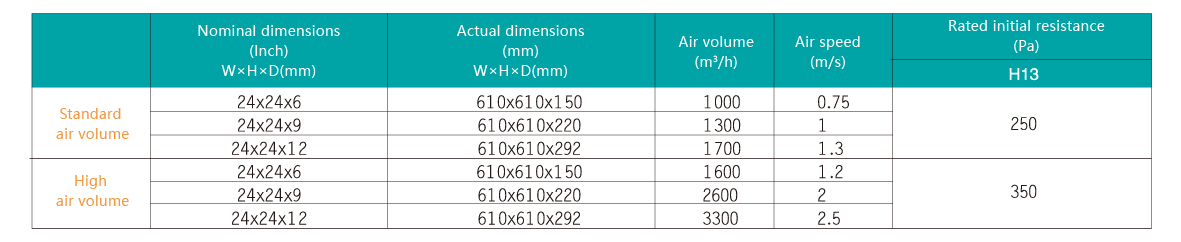

Dimensions

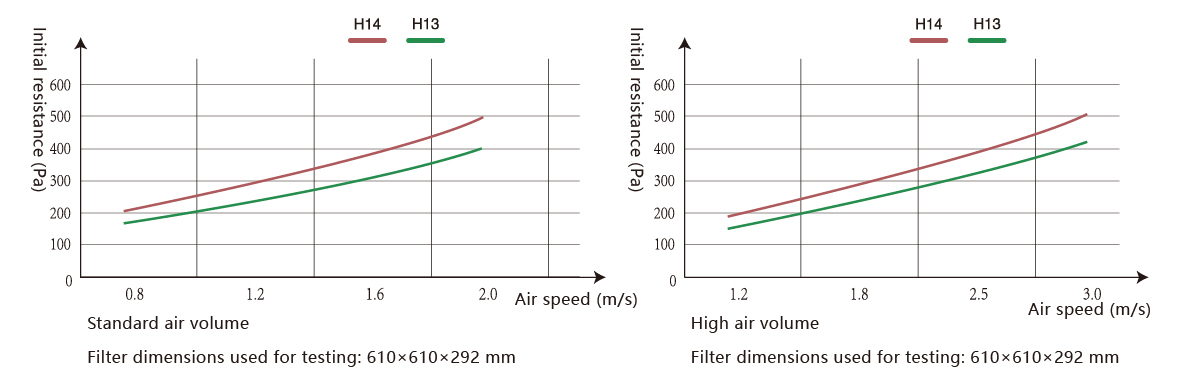

Initial resistance - air speed relationship graph

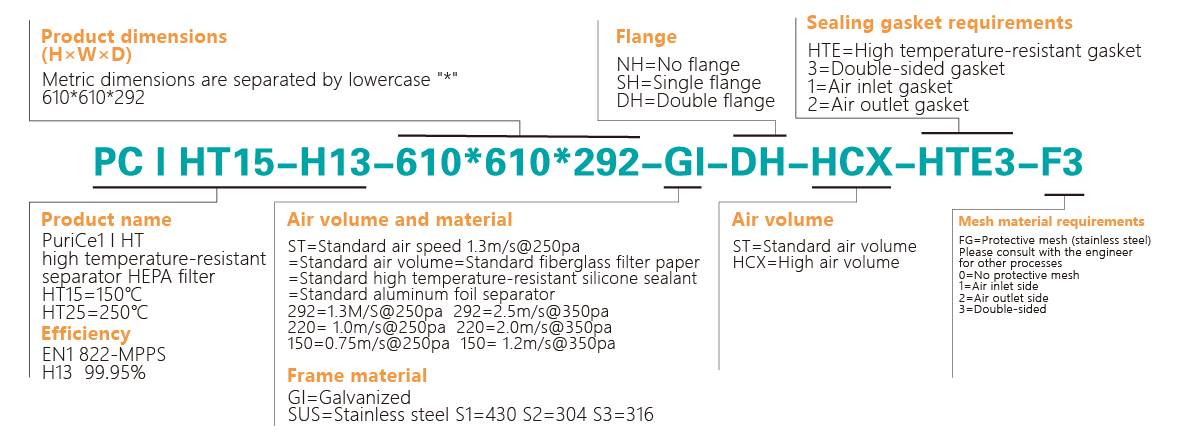

Naming Rules

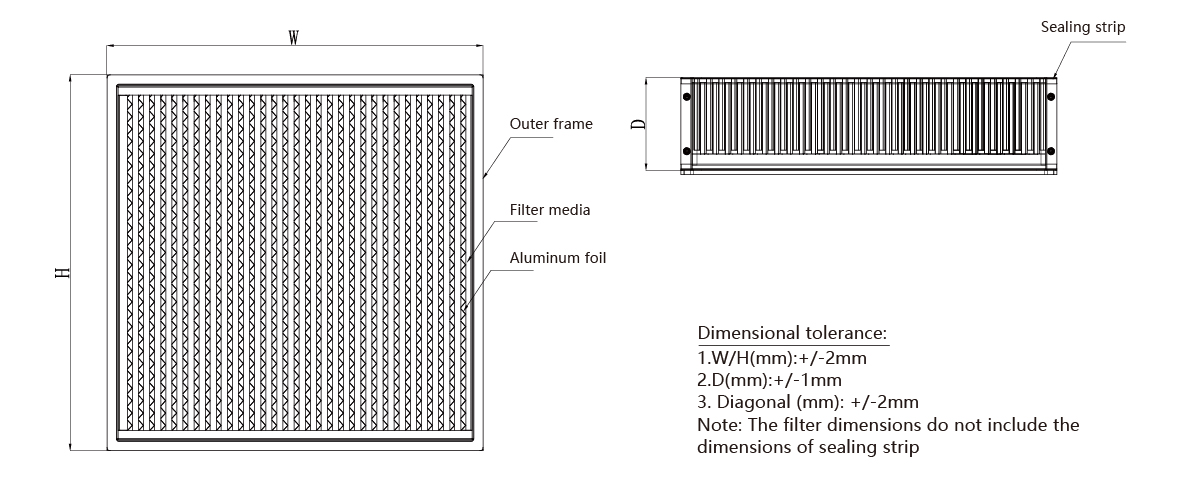

Drawing
