Product features:

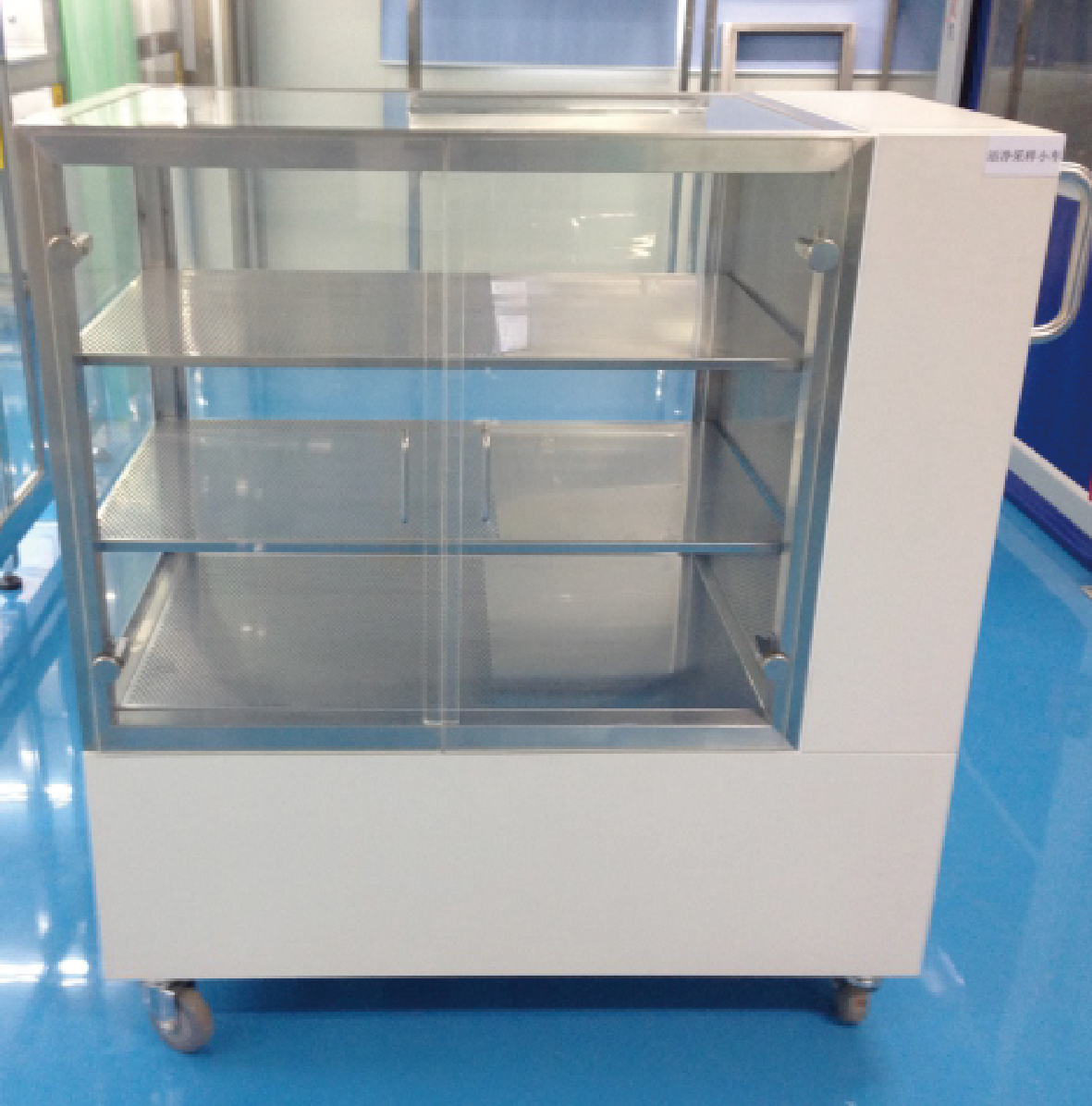

● The working area is made of stainless steel frame with colorless transparent glass, with novel structure and easy observation.
● The self-supplied rechargeable DC power supply can realize wireless operation of the vehicle, which can work continuously for 2-3 hours after 8~12 hours of charging.
● The horizontal unidirectional air supply method ensures that the items on each shelf are protected by clean airflow, effectively preventing contamination.
● It is suitable for the air supply system with variable air volume, ensuring adjustable air speeds (high/low), reliable operation, low consumption and energy saving.
● Utility and inverter batteries can be used alternately, which is flexible, convenient, safe and reliable.
● The differential pressure gauge is optional, and displays differential pressure at both ends of the HEPA filter in real time.
● Optional PAO interface is available for HEPA filter leakage verification to meet GMP specification requirements.
| Model | ZKSJ-YD-1000 |
| Cleanliness class | 5 (Class 100) |
| Filtration efficiency | ≥99.99%(@≥0.3μm) |
| Average air speed (m/s) | ≥0.3 |
| Noise (dB(A)) | ≤60 |
| Power supply | ~220V+22V、50Hz+1HZ |
| Rated power | 300 |
| Capacitor capacity (AH) and quantity | 38x② |

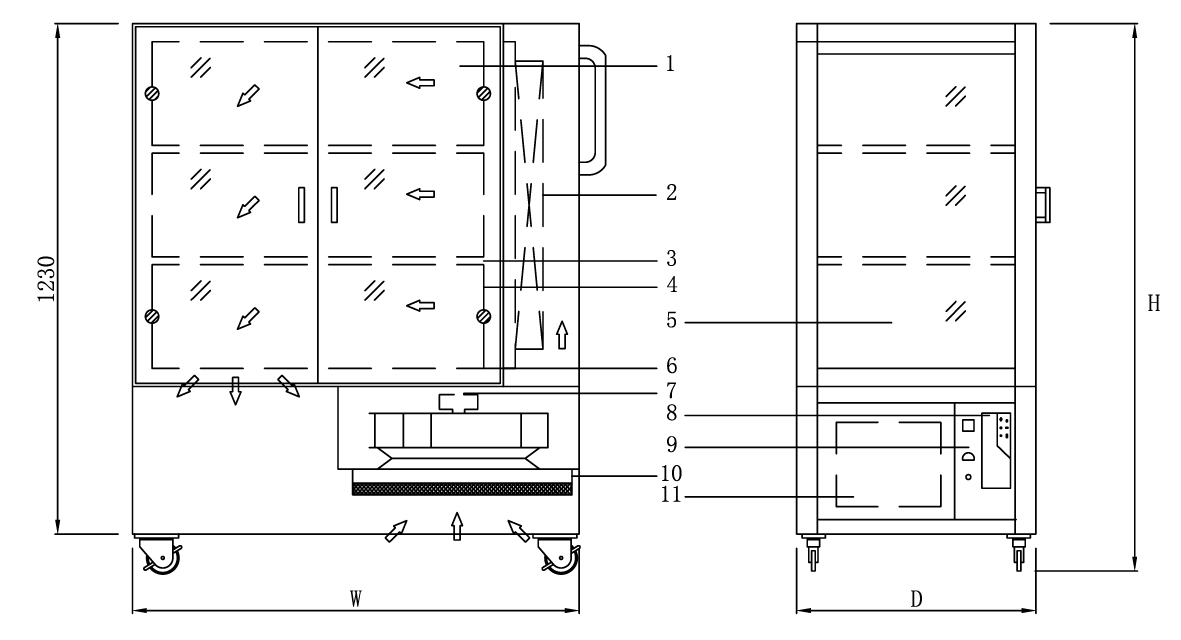

| Working area dimensions (mm) (W×D×H) | 840x600x670 |
| External dimensions (mm) (W×D×H) | 1175x633x1230 |
