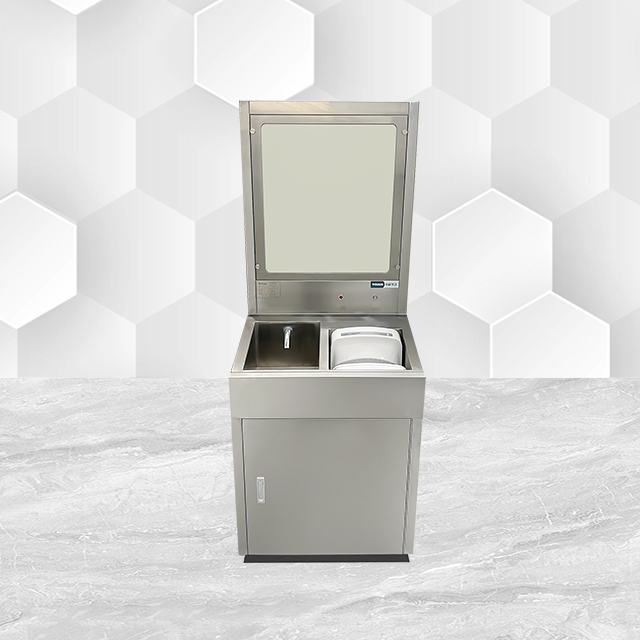

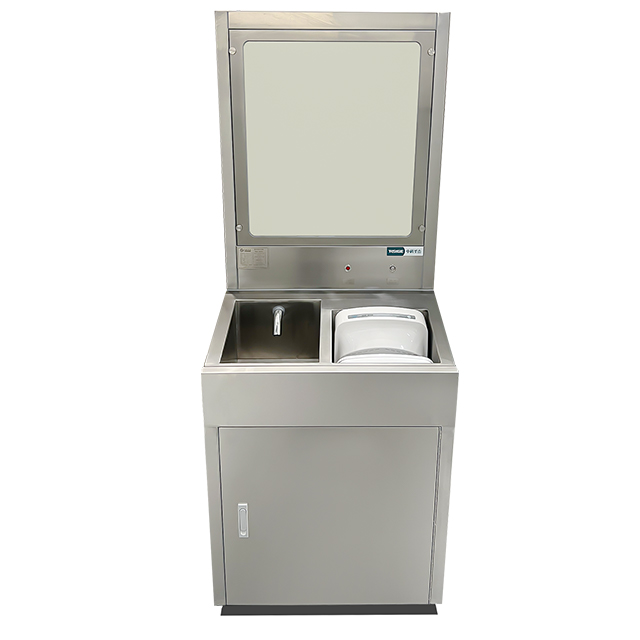

Automatic Hand Washing And Drying Machine

Product Overview

Combining 360° spray nozzles, food-grade detergent dispenser, and high-velocity air drying, it delivers a 15-second complete hand cleaning cycle—removing 99.9% of bacteria. Constructed with 304 stainless steel (IP65 waterproof rating), it features infrared motion sensors (touchless operation) and a self-cleaning interior. Compliant with FDA, GMP, and HACCP standards, it’s ideal for pharmaceutical plants, food processing facilities, and hospitals.

Scenario-Based Solutions

Pharmaceutical Cleanroom Entry

At cleanroom access points, the machine enforces proper hand hygiene before personnel enter. The touchless design prevents cross-contamination, while the built-in HEPA-filtered air dryer avoids recontamination post-washing—meeting GMP Annex 1 hand hygiene requirements.

Food Processing Plants

In meat, dairy, or bakery facilities, the machine reduces microbial transfer from hands to products. The stainless steel surface resists corrosion from acidic cleaners, and the detergent dosage control ensures compliance with food safety regulations (e.g., FSIS, EU 10/2011).

Hospital Operating Rooms

In OR prep areas, the machine’s 15-second fast cycle supports frequent hand cleaning without delaying procedures. The HEPA-filtered dryer eliminates lint (common with paper towels), maintaining sterile environments for surgeries.

Key Product Features

3-in-1 function: pre-rinse (warm water, 38℃), detergent wash, and HEPA-filtered air dry (100m/s velocity).

Touchless operation: infrared sensors activate all functions (no physical contact).

GMP-compliant materials: 304 stainless steel, food-grade silicone hoses, and NSF-certified detergent.

Self-cleaning: automatic interior flushing and UV-C disinfection after 50 uses.

Smart monitoring: cycle counter and low-detergent alarm (connects to facility management systems).

Technical Support & Related Services

We offer on-site installation (water/electrical connection), operator training, and 1-year warranty. Customization includes: logo engraving, adjustable water temperature (30-45℃), and compatible detergent options (alcohol-based, chlorhexidine). Maintenance services include quarterly nozzle cleaning and annual pump inspection. Documentation includes material certificates, hygiene test reports, and installation guides.

FAQ

Q1: What are the water and power requirements for the machine?

A1: It requires 220V/50Hz power (1.2kW) and 0.2-0.6MPa water pressure. Cold water connection is standard; optional water heater for warm water (38℃ default). Water consumption: 0.8L per cycle.

Q2: How often does the detergent need to be refilled?

A2: The 5L detergent tank lasts 1,250 cycles (25-30 days in high-traffic areas). The machine alerts users via LED light when detergent is at 10% capacity. We offer bulk detergent supply with auto-delivery.

Configuration description:

1. Control

A. Automatically supply water when the hand reaches the automatic sensor faucet, with a sensing distance of 25 cm, and with the water filter to provide clean water;

B. Automatically blow out clean hot air filtered by the HEPA filter when the hands reach below the nozzle; and the airspeed is adjustable;

C. Automatically supply water even after power failure.

2. Material

The product is made of SUS304# overall, and the washbasin panel is seamlessly welded

3. Vanity mirror, convenient for people to tidy clothing;
