In pharmaceutical manufacturing, cleaning is far more than a routine maintenance activity. It is a critical process directly linked to product quality, regulatory compliance, and patient safety.
Traditional manual cleaning methods often suffer from inconsistencies caused by operator differences, incomplete documentation, and limited traceability. As regulatory requirements continue to become stricter, pharmaceutical companies increasingly rely on automated cleaning technologies to ensure standardized and validated cleaning performance.
A GMP pharmaceutical appliance washer and dryer is specifically designed to automate the cleaning and drying of pharmaceutical equipment, containers, glassware, filling components, pipelines, and production tools. By providing repeatable, verifiable, and fully traceable cleaning cycles, these systems help manufacturers achieve compliance with GMP regulations while improving operational efficiency.

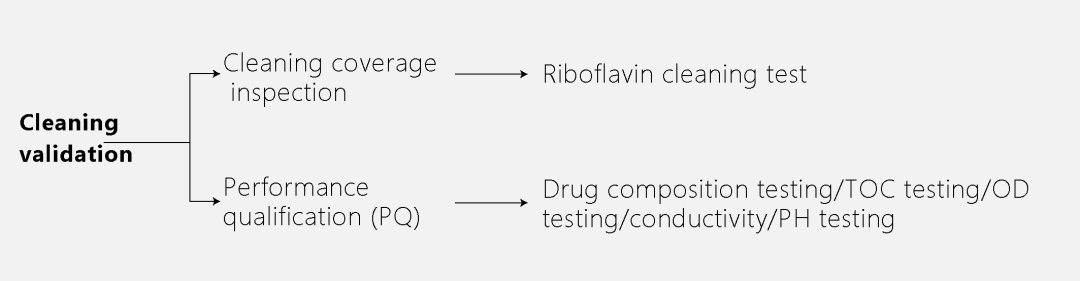

Cleaning validation is one of the most important requirements in pharmaceutical production.
The purpose of cleaning validation is to demonstrate and document that a cleaning procedure consistently removes product residues, cleaning agents, and microbial contaminants to predefined acceptance limits.
Without proper cleaning validation, manufacturers may face risks such as:
- Product cross-contamination
- Batch rejection
- Regulatory non-compliance
- Production delays
- Increased operating costs
An automated pharmaceutical washer and dryer helps eliminate variability while generating accurate cleaning records that support validation requirements.

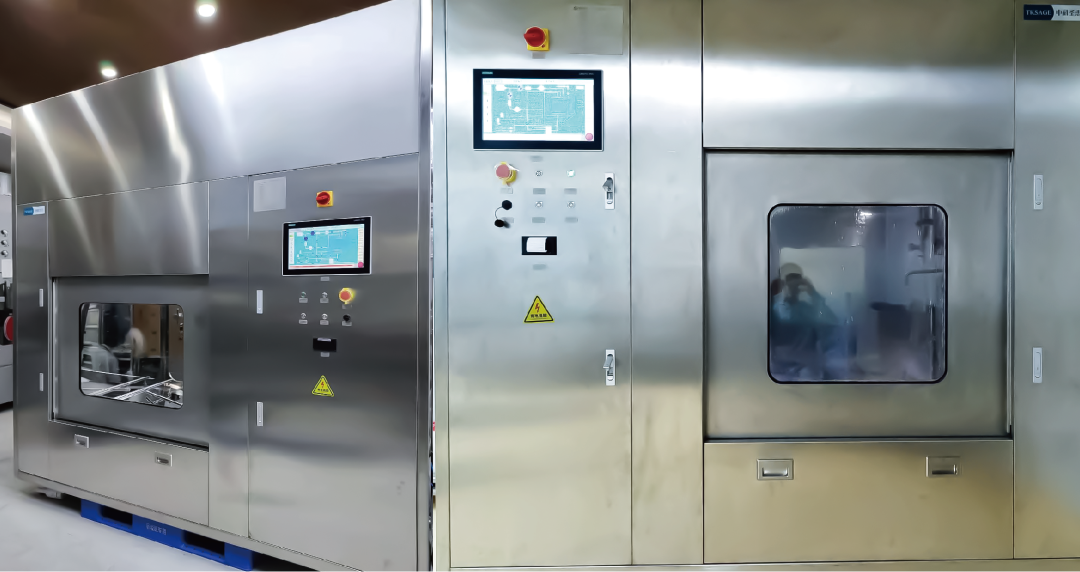

A GMP pharmaceutical appliance washer and dryer is an automated cleaning system designed for pharmaceutical production environments.
The equipment combines washing, rinsing, and drying functions into a fully controlled process. Through programmable cleaning cycles, the system ensures that every item receives consistent treatment according to validated cleaning procedures.
Compared with manual cleaning, automated washing systems provide significantly higher levels of repeatability, documentation, and process control.

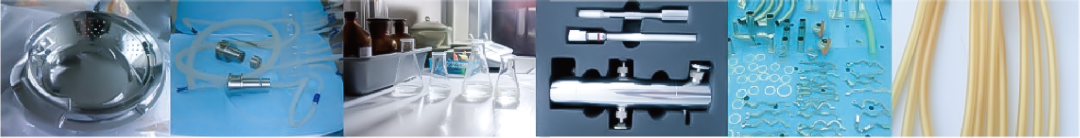

Typical applications include:
- Stainless steel containers
- Filling machine components
- Glassware
- Production utensils
- Transfer vessels
- Pharmaceutical pipelines
- Laboratory equipment
- Process accessories
The system can effectively replace manual cleaning operations while supporting modern pharmaceutical quality management systems.
A GMP pharmaceutical appliance washer and dryer typically operates through a multi-stage cleaning cycle.
The process begins with a pre-wash stage that removes loose particles, residues, and contaminants from equipment surfaces.
This stage prepares the items for deeper cleaning while reducing overall detergent consumption.
During the washing stage, high-pressure and high-flow cleaning technology delivers cleaning solutions to all product-contact surfaces.
Specially designed spray systems ensure complete coverage, including hard-to-reach internal areas.
After washing, purified water is used to remove detergent residues and remaining contaminants.
The rinsing process helps ensure that cleaned items meet pharmaceutical cleanliness requirements.
Following rinsing, hot air drying technology rapidly removes residual moisture.
Efficient drying helps prevent microbial growth and allows equipment to return to production more quickly.
A complete cleaning and drying cycle can typically be completed within 70 minutes, depending on the application and equipment configuration.
The system automates the entire cleaning process, from pre-washing and washing to rinsing and drying.
Automated operation minimizes human intervention, reduces labor costs, and ensures consistent cleaning performance across every cycle.
Advanced spray systems deliver high-pressure and high-flow cleaning solutions throughout the washing chamber.
This technology effectively removes pharmaceutical residues, powders, liquids, and contaminants from both external and internal surfaces.
Even complex components and hard-to-clean equipment can be cleaned thoroughly and consistently.
Different pharmaceutical products and equipment require different cleaning methods.
Customized loading racks can be designed according to the shape, size, and cleaning requirements of various items, ensuring optimal cleaning coverage and improved washing efficiency.
The system can be equipped with online conductivity testing technology to monitor cleaning effectiveness during operation.
This feature helps verify the removal of cleaning agents and residues while supporting cleaning validation requirements.
Following the washing and rinsing stages, a high-temperature hot air drying system rapidly removes residual moisture.
Fast drying reduces equipment turnaround time and helps prevent microbial growth caused by remaining water.
The double dosing pipeline design allows precise control of cleaning agents throughout the washing process.
This improves cleaning efficiency while reducing chemical waste and ensuring repeatable process performance.
Every cleaning cycle can be recorded and stored automatically.
Critical process parameters such as temperature, conductivity, cycle duration, and alarm events can be documented for future review and audit purposes.
This fully supports GMP documentation requirements.
The entire operation process is continuously monitored.
Operators can easily track equipment status, process parameters, and cleaning progress through the control system, ensuring safe and reliable operation.
Compared with traditional manual cleaning methods, automated pharmaceutical washing systems provide several significant advantages.
These include:
- Improved cleaning consistency
- Reduced operator dependency
- Enhanced GMP compliance
- Better cleaning validation support
- Increased production efficiency
- Lower labor costs
- Reduced contamination risks
- Full process traceability
- Faster equipment turnaround times
- Improved product quality assurance
As pharmaceutical manufacturing continues to adopt digitalization and automation, automated washing and drying systems have become an increasingly important investment.
GMP pharmaceutical appliance washers are widely used for cleaning production equipment and accessories used in solid dosage, sterile products, biologics, and vaccine manufacturing.
The equipment supports contamination control programs by providing validated cleaning processes for cleanroom tools and production components.
Laboratories utilize pharmaceutical washers for cleaning glassware, testing instruments, sample containers, and other laboratory equipment.
Biotechnology manufacturers use automated washing systems to maintain cleaning consistency and reduce contamination risks during sensitive production processes.
Equipment capacity should match the volume and type of items requiring cleaning.
Larger production facilities may require higher-capacity systems to maintain operational efficiency.
The system should support GMP documentation, cleaning validation protocols, and regulatory compliance requirements.
Effective drying capabilities are essential for minimizing downtime and preventing microbial contamination.
Customized loading racks should be available to accommodate specific production equipment and process requirements.
Modern pharmaceutical facilities should select systems capable of recording, storing, and exporting cleaning data for audit and validation purposes.
Cleaning validation is a documented process that demonstrates a cleaning procedure consistently removes residues and contaminants to acceptable levels.
Automated cleaning provides greater consistency, repeatability, traceability, and compliance with GMP requirements while reducing human error.
Typical items include containers, filling machine parts, glassware, pipelines, transfer vessels, laboratory equipment, and various production accessories.
Depending on equipment configuration and cleaning requirements, a complete cleaning and drying cycle can typically be completed within 70 minutes.
Yes. Complete process documentation, data recording, and validation support help manufacturers meet GMP audit requirements.
The Cigeair WD-M Series is designed to meet the demanding requirements of modern pharmaceutical manufacturing facilities.
Key advantages include:
- GMP-compliant design
- Fully automated cleaning and drying process
- High-pressure high-flow cleaning technology
- Customized loading rack solutions
- Online conductivity monitoring
- High-temperature hot air drying
- Dual dosing pipeline system
- Comprehensive process monitoring
- Full data recording and printing capabilities
- Cleaning validation support documentation
These features help pharmaceutical manufacturers improve cleaning performance, increase operational efficiency, and maintain regulatory compliance.
Looking for a reliable GMP pharmaceutical appliance washer and dryer for your pharmaceutical facility?
Cigeair provides advanced automated cleaning and drying solutions designed to support cleaning validation, GMP compliance, and production efficiency.
Contact our technical team today to discuss your application requirements and receive a customized pharmaceutical cleaning solution.
