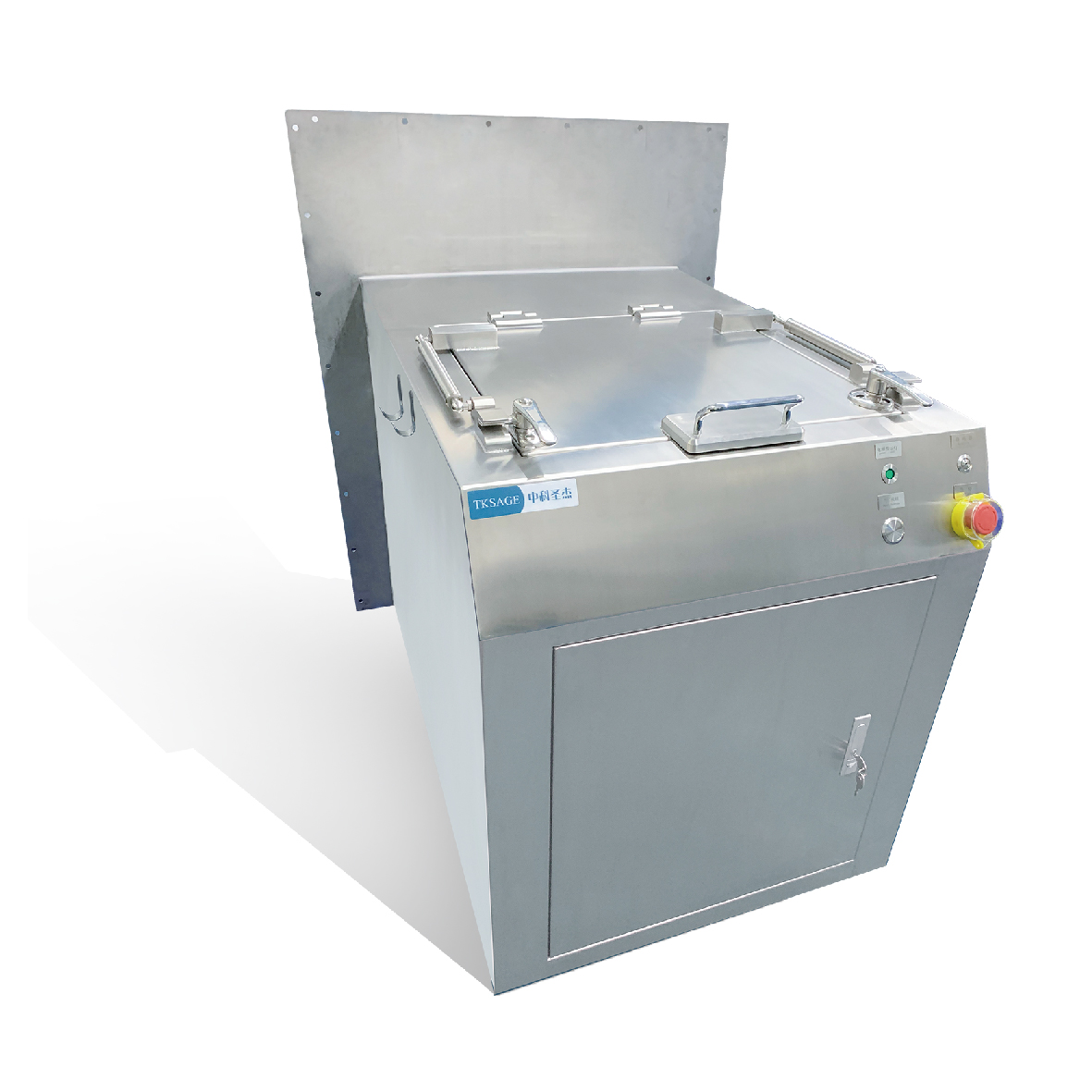

Aqueduct Transfer System

Product Overview

As a leading manufacturer and trusted supplier of critical cleanroom equipment, we engineer the Aqueduct Transfer System to meet the most rigorous decontamination demands. Specifically designed for high-level biosafety laboratories, this unit utilizes complete liquid immersion to eradicate the risk of cross-contamination during material transfers between varying classification zones.

• Completely prevents cross-area contamination through liquid submersion

• Engineered strictly for high-level biosafety compliance

• Robust, heavy-gauge stainless steel construction for maximum longevity

• Advanced electromagnetic interlocking ensures operational integrity

Product Description

The Aqueduct Transfer System represents the pinnacle of isolation technology, meticulously crafted to safeguard your most sensitive research and production environments. When handling critical material transfers, the smooth, brushed finish of the heavy-gauge stainless steel conveys an immediate sense of industrial-grade durability and premium craftsmanship. It operates with a quiet, reassuring precision; the subtle click of the electromagnetic locks and the smooth, controlled glide of the hydraulic linkage reflect superior engineering designed to withstand rigorous daily use. By submerging items entirely in a decontamination liquid, this system physically severs the chain of airborne and surface pathogens, ensuring that your controlled environments remain impeccably sterile.

Beyond its imposing physical presence, the system acts as an impenetrable fortress against cross-contamination. Facility managers will appreciate how the fully welded inner cavity eliminates microscopic crevices where contaminants typically harbor. The integration of pressure and liquid sealing mechanisms creates a failsafe barrier, providing absolute peace of mind during high-stakes laboratory operations. Every curve, weld, and component is designed to minimize maintenance downtime, maximize operational continuity, and elevate the overall safety standard of your critical workflows.

Product Specifications

Key Features & Highlights

Elevate your facility's safety protocols with a transfer unit engineered for flawless execution. This system goes far beyond basic material passing, offering a sophisticated, multi-layered defense mechanism against microscopic threats while streamlining daily operations.

• Failsafe Interlocking:

• The dual-door electromagnetic lock ensures that both sides can never be breached simultaneously, maintaining the absolute integrity of your cleanroom pressure cascade.

• Precision Time Management:

• Operators are strictly locked out until the programmable immersion cycle is fully complete, effectively removing human error from the decontamination equation.

• Acoustic and Visual Alerts:

• Immediate buzzer sounds and LCD notifications alert personnel to any door left open for an extended period, preventing accidental environmental exposure.

• Seamless BMS Connectivity:

• Real-time liquid level data is fed directly to your central Building Management System, allowing for remote oversight and proactive facility maintenance.

• Dual-Threat Eradication:

•  While optimized for liquid immersion, the inclusion of dedicated VHP fumigation ports allows for comprehensive gas-phase sterilization when protocols demand it.

Advanced Capabilities & Design Dimensions

Our engineering approach focuses on solving the complex challenges faced by modern biosafety facilities. Every aspect of this transfer system has been optimized for regulatory compliance, extreme longevity, and uncompromising operator safety.

• Application & Biosafety Compliance:

• Tailor-made for biosafety laboratories, this unit utilizes complete liquid immersion decontamination. It effectively halts cross-contamination during material transit, fulfilling the rigorous isolation requirements of high-level biocontainment facilities.

• Premium Material & Anti-corrosion:

• The inner trough is forged from national standard T=3.0mm 316L brushed stainless steel, surrounded by a robust 2.0mm 304 stainless steel exterior. This fully welded cavity resists the harshest chemical disinfectants, preventing rust and leaks over decades of continuous soaking.

• Sealability & Safety Interlock:

•  Fortified with double airtight doors utilizing both pressure and liquid sealing. The front and back doors feature an electromagnetic interlock, strictly preventing simultaneous opening. Prolonged door opening triggers an immediate buzzer, blocking airflow and contamination from both physical and programmatic angles.

• Intelligent Control & BMS Integration:

• Driven by a highly responsive PLC and LCD touchscreen, allowing precise customization of soaking times. A built-in high-precision sensor monitors the 240mm liquid range, triggering low-level alarms and transmitting real-time data to your laboratory's BMS platform for centralized digital monitoring.

• Disinfection Expansion & Drainage:

• Future-proofed with two quick-fit ports for VHP (Vaporized Hydrogen Peroxide) fumigation, enabling both liquid and gas sterilization. A bottom-mounted quick connector with a ball valve ensures the rapid, safe discharge of waste liquids during routine maintenance.

• Usability & Easy Installation:

• Designed with the operator in mind, the cover plates feature hydraulic linkages and limit devices for effortless, safe access. It comes standard with two side-mounted rakes for secure item retrieval. The unit's flush-wall installation design ensures a pristine, crevice-free integration into any cleanroom architecture.

Why Choose Us

Sourcing critical containment equipment requires a partner who deeply understands the uncompromising nature of biosafety. As a dedicated manufacturer and trusted industry provider, we deliver more than just hardware; we provide long-term assurance for your most vital operations.

• Uncompromising Quality Control:

• Every single weld is meticulously inspected, and every electromagnetic interlock is rigorously tested before leaving our facility, ensuring out-of-the-box reliability.

• Industry-Specific Expertise:

• We understand the complex nuances of cleanroom dynamics and design our systems to integrate flawlessly with your existing wall panels and digital monitoring networks.

• Long-Term Durability:

• By utilizing ultra-thick 316L and 304 stainless steel, we drastically reduce your total cost of ownership, virtually eliminating the need for premature equipment replacements.

• Responsive Technical Support:

• From initial architectural specification to post-installation troubleshooting, our expert engineering team provides the insights needed to keep your operations running smoothly.

Frequently Asked Questions (FAQ)

Navigating the technical specifications of biosafety transfer systems can be complex. Below are detailed answers to common inquiries from facility managers and procurement specialists regarding our aqueduct system's capabilities.

• Q: How does the system prevent operator error during the decontamination cycle?

• A: The integrated PLC control system enforces a mandatory soaking time. Until the pre-set immersion duration has fully elapsed, the electromagnetic locks physically prevent the receiving door from opening, entirely removing the risk of premature item extraction.

• Q: Can this unit be integrated into our existing central monitoring software?

• A: Yes, the integrated liquid level meter features a dedicated signal output. It transmits real-time liquid level feedback and low-level alarm signals directly to your facility's Building Management System (BMS) for centralized oversight.

• Q: What happens if a door is accidentally left ajar by personnel?

• A: The system is equipped with an intelligent monitoring protocol. If either cover plate remains open beyond the permitted timeframe, an audible buzzer alarm will activate, and an alert will display on the LCD screen to prompt immediate closure.

• Q: Is the system capable of handling gas-based sterilization in addition to liquid immersion?

• A: Absolutely. We have equipped the unit with two quick-fit disinfection ports specifically designed for Vaporized Hydrogen Peroxide (VHP) fumigation, giving your facility the flexibility of dual-mode decontamination.

• Q: How is waste liquid managed safely during routine cleaning?

• A: The system features a dedicated drainage outlet equipped with a quick connector and a secure ball valve acting as a stop valve. This ensures that hazardous decontamination fluids can be drained safely, precisely, and efficiently without exposing the surrounding cleanroom environment.
