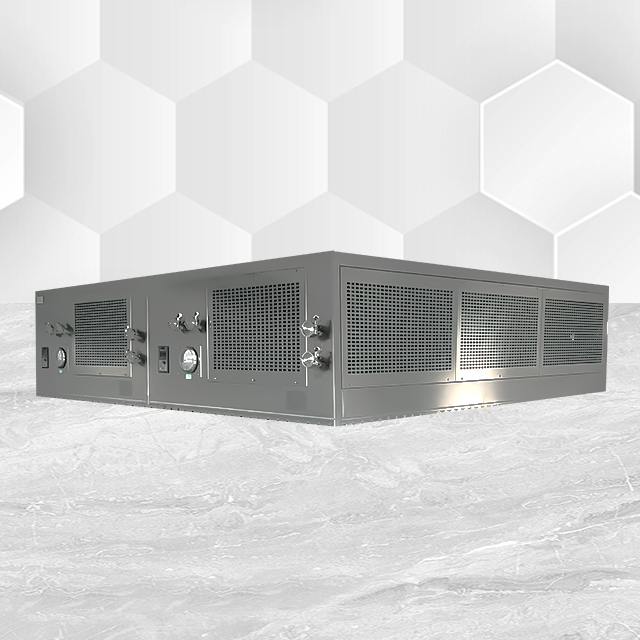

Class A Laminar Flow Hood

Introduction

The Class A Laminar Flow Hood is a localized air purification equipment developed by TKSAGE to provide high-cleanliness environments for precision operations. It features a compact structure, SUS304 stainless steel cabinet, and double-layer negative pressure design, ensuring uniform air distribution and Class A cleanliness (ISO 14644-1). Suitable for both wall-mounted and floor-standing installation, it is widely used in industries requiring sterile or dust-free operations, such as pharmaceuticals, laboratories, and microelectronics.

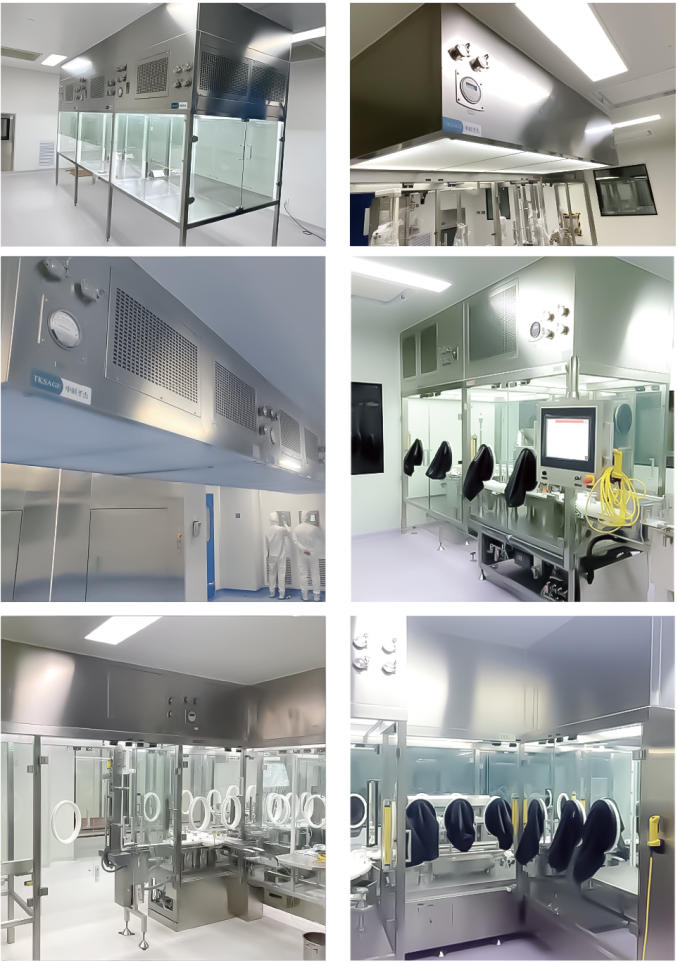

Scenario-Based Solutions

Pharmaceutical Formulation & Testing

In pharmaceutical R&D labs and sterile drug production lines, the Class A Laminar Flow Hood creates a contamination-free zone for drug mixing, sample testing, and filling. Its gel-sealed HEPA filter prevents air leakage, while the 0.45-1.3 m/s adjustable air speed maintains a stable sterile environment, complying with FDA and GMP requirements.

Biological Laboratory Research

Biological labs handling cell cultures, microorganisms, or genetic materials require strict sterile conditions. This laminar flow hood provides a dust-free and bacteria-free workspace, protecting samples from external contamination and ensuring the accuracy of experimental results. The low noise (≤65 dB) design also improves the laboratory working environment.

Microelectronic Component Assembly

Microchips, sensors, and other precision electronic components are vulnerable to dust during assembly. The Class A Laminar Flow Hood delivers uniform clean air to the operation area, eliminating static electricity and dust interference. Its inverter control system allows precise air speed adjustment, adapting to the sensitivity of different components.

Product Features

Superior Cleanliness Performance: Achieves Class A cleanliness with HEPA filters, ensuring 99.99% filtration efficiency for 0.3μm particles.

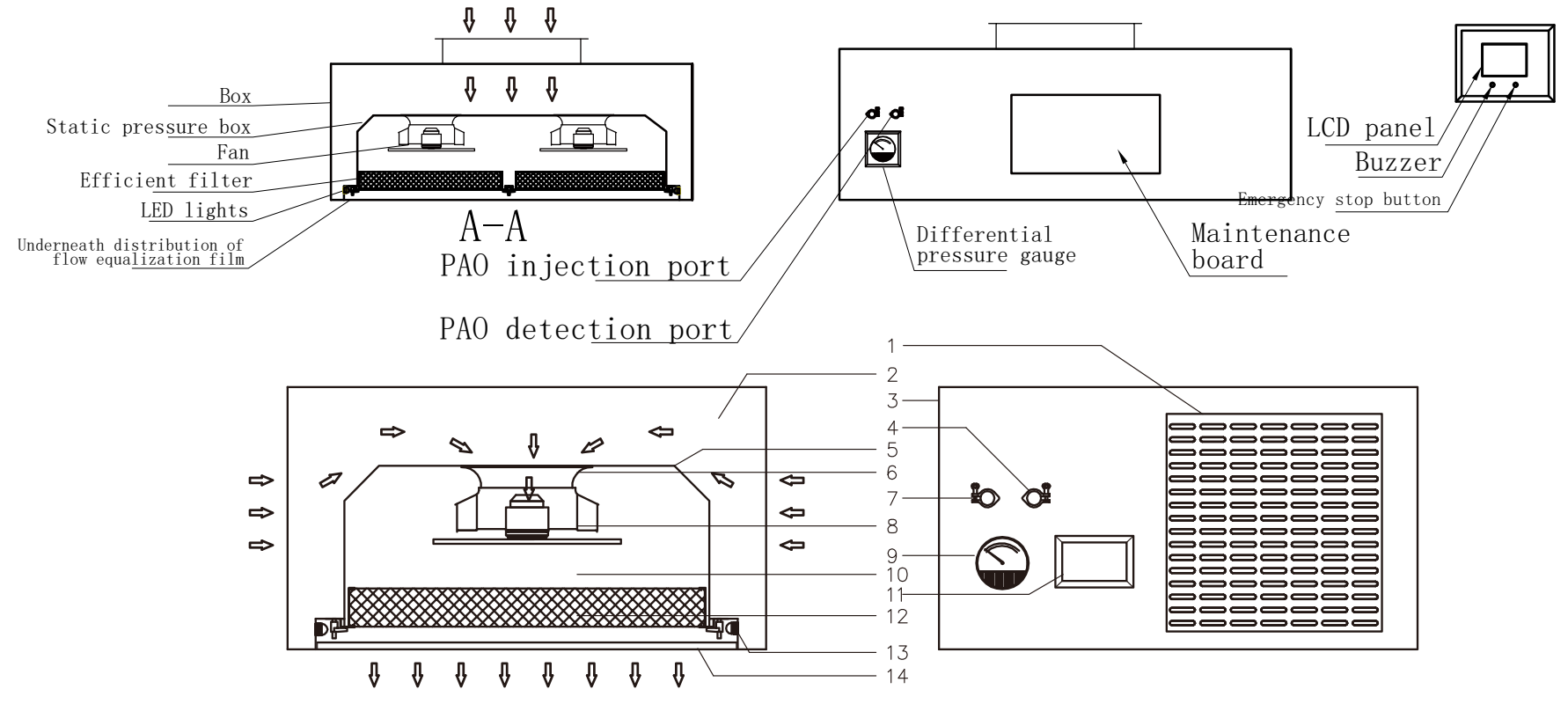

Double-Layer Negative Pressure Structure: Eliminates air leakage risks, maintaining a stable positive pressure in the working area.

Durable & Easy to Clean: SUS304 stainless steel cabinet with one-time sheet metal bending, smooth surface, and no dead ends for easy disinfection.

Intelligent Control: LCD panel and inverter control enable automatic constant or step air speed adjustment, with real-time differential pressure monitoring.

Flexible Installation: Available in wall-mounted or floor-standing types, with multiple models to fit different workspace sizes.

Technical Support & Services

We provide comprehensive support for the Class A Laminar Flow Hood to meet customer needs:

Custom Design: Customize overall dimensions, air volume, and control modes according to customer URS files, supporting belt-shaped clean area connection.

Installation & Commissioning: Professional team handles on-site installation, air speed calibration, and PAO detection to ensure compliance with cleanliness standards.

Training & Documentation: Provide operation manuals, maintenance guides, and on-site training for staff to master equipment use and daily maintenance.

After-Sales Guarantee: 1-year warranty for the whole machine, free technical consultation, and fast supply of replacement parts (filters, fans).

Model

Overall dimensions               (mm)

Rated air volume             (m3/h)

Air speed (m/s)

Cleanliness class

Noise (dB)

Illumination (Lux)

Control mode

Power (KW)

ZKSJ-AJCLZ1100

800X600X600

600~800

0.45±20%

A级

65

≥300

Inverter control/LCD screen control

0.5

ZKSJ-AJCLZ1200

1200X600X600

800~1000

ZKSJ-AJCLZ1201

1200X900X600

1500~1800

0.6

ZKSJ-AJCLZ1500

1500X1000X600

2400~2600

0.6

ZKSJ-AJCLZ2000

2000X1000X600

3200~3500

1.0

ZKSJ-AJCLZ2001

2000X1500X600

5200~5500

1.3

Note: The specifications listed in the table are for customers’ reference only, and the Class A gel seal laminar flow hood can be designed and made according to the URS file of customers .
