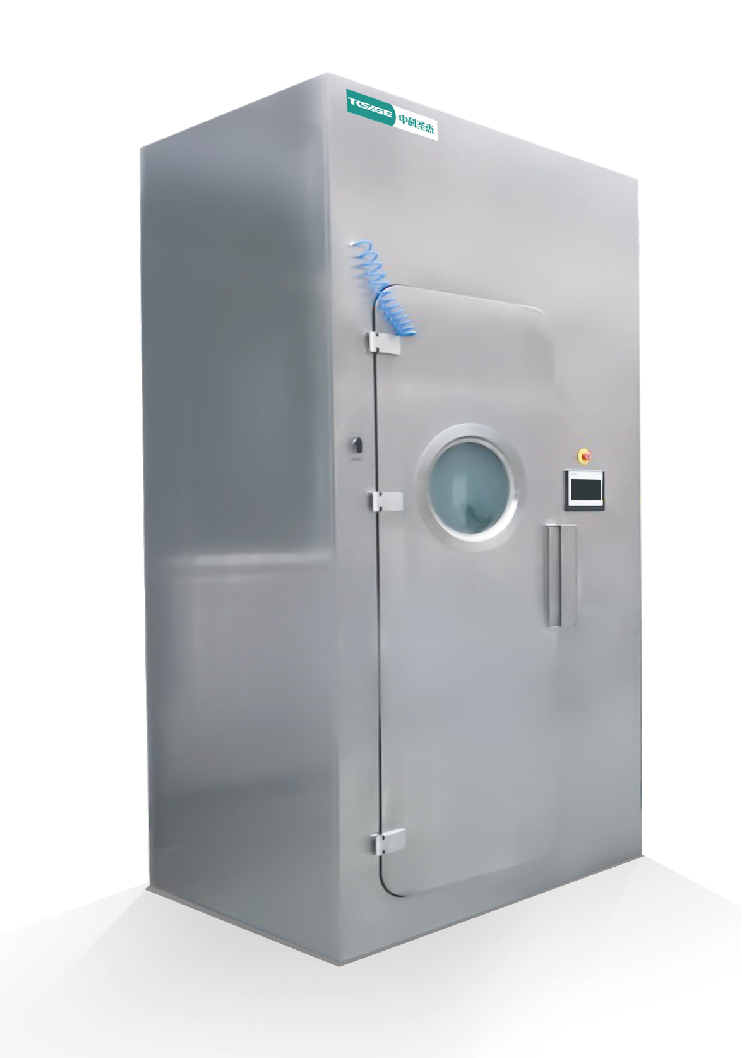

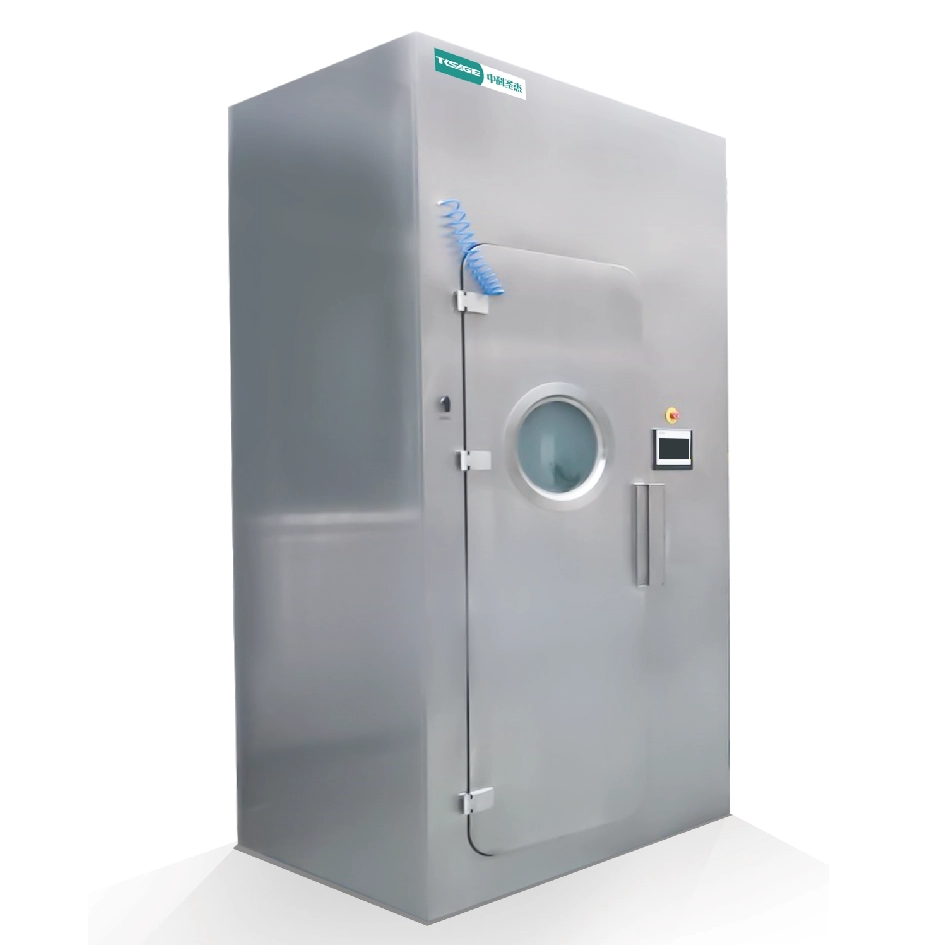

Cigeair || What's Forced Shower System？

Product application

Cigeair has independently developed a forced shower system utilized in specialized environments to ensure the adaptability of personnel working in high biological risk areas when exiting negative pressure areas (toxic areas). This design is specifically applicable to P3/P4 biosafety laboratories or pharmaceutical plants with high disinfection and sterilization requirements. It features robust isolation capabilities and a focus on performance, ensuring the separation and sealing between the negative pressure or core area (toxic area) and ordinary areas.

Specification:

External: 1450*1200*2700mm  Internal: 1230*1070*1980mm

Technical description:

1.The cabinet is constructed by bending and welding 304 sanded board and 304 round tube (T=2.0 mm).

2.It is equipped with an air intake system, an exhaust system, and a pressure differential system to maintain a negative pressure state inside the shower room. Through settings, it can automatically regulate internal pressure differences and promptly monitor the internal conditions, providing timely feedback to the control system.

3.It is equipped with a water inlet system that needs to be connected to factory-provided hot and cold water sources. The water temperature can be automatically adjusted through settings.

4.A drainage system is integrated to discharge water after showering, with a water trap and backflow prevention device included to prevent both gas and water backflow.

5.It is equipped with airtight doors and an interlock system. The airtight doors cannot be opened simultaneously, effectively preventing cross-contamination between clean and non-clean areas.

6.Control system: Equipped with a touchscreen + PLC + sensor closed-loop control system, providing real-time monitoring and adjustment of equipment status, ensuring the maintenance of the ideal operational state.

6.Power: AC220V/50HZ, power: 2.0kw.
