The Ultraviolet Sterilization Transfer Window is equipped with three sets of built-in high-energy pulse sterilization components, each comprising three pulse sterilization lamps. Each lamp has a rated power of 1KW per lamp, a rated power supply of 2KV per lamp, and a luminous mainte- nance ≥95%, an alternating flash with a flashing frequency of 2-3 times per second, achieving 360° sterilization without dead angles.
HDY-MJ-800
TKSAGE
| Quantity: | |
|---|---|

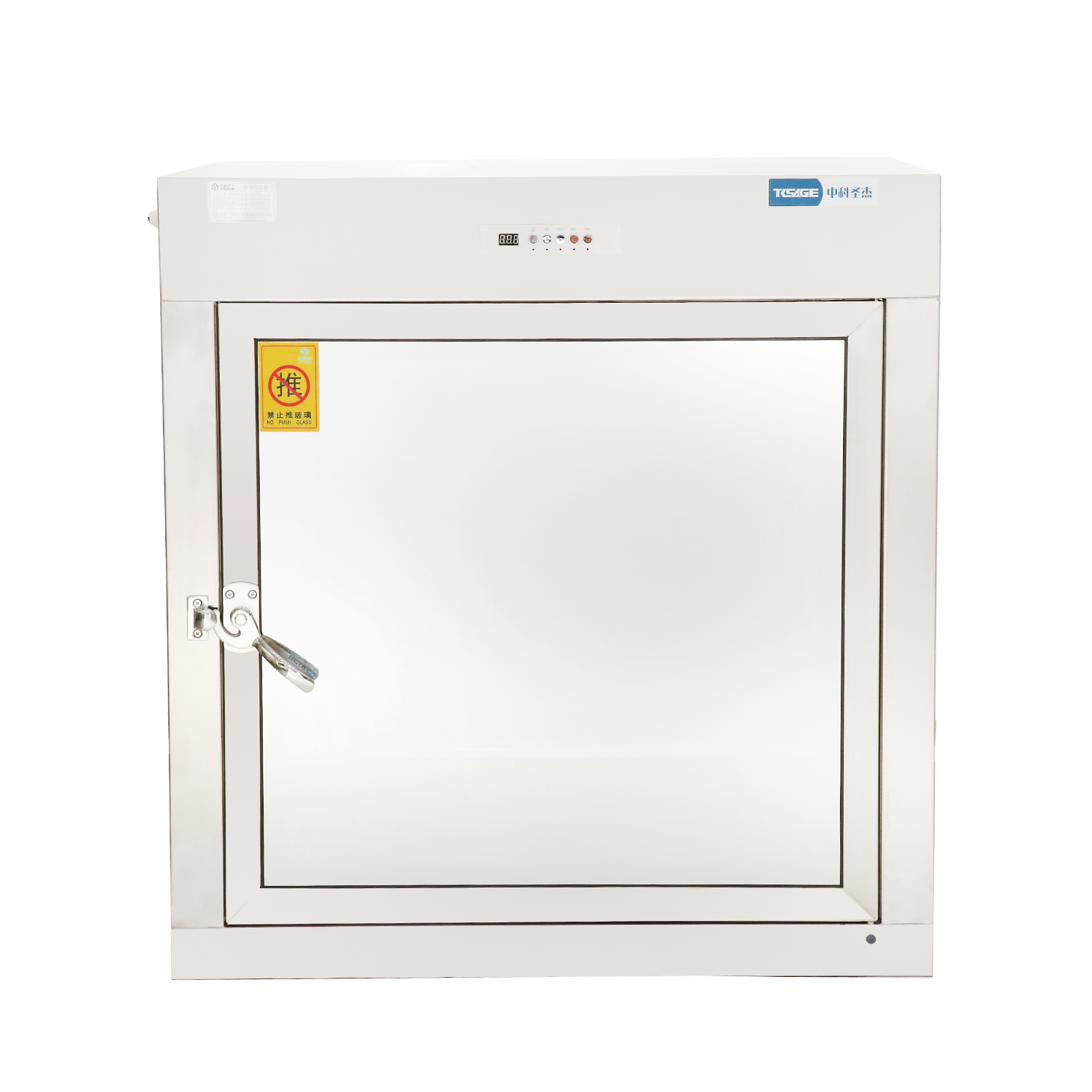

The Ultraviolet Sterilization Transfer Window is an advanced item transfer and sterilization device designed for transferring items from non-clean to clean environments. It features a top-mounted closed-loop sealed rectangular ultra-strong nanocatalytic magnetic lamp (200W, 185-254nm wavelength) and three sets of high-energy pulse sterilization components (each with three 1KW lamps), achieving 360° sterilization without dead angles. With a sterilization time of ≥5 minutes and a total sterilization rate of ≥99% (supported by third-party test reports), it effectively eliminates bacteria, viruses, spores, and nucleic acids. Constructed with high-quality 304 stainless steel and equipped with a dual-door electronic interlock system, it ensures airtight item transfer, making it ideal for biological laboratories, pharmaceutical plants, and cleanrooms.
For BSL-2/3 laboratories transferring culture media, experimental equipment, or samples between non-clean and clean areas, the pass box prevents cross-contamination via high-efficiency sterilization. The 360° no-dead-angle design ensures all surfaces of items are disinfected, protecting experimental integrity and operator safety.
In pharmaceutical production workshops (e.g., sterile drug production, API processing), raw materials, packaging materials, or tools need sterile transfer between different clean zones. The xenon light sterilization system rapidly disinfects items within 5 minutes, meeting GMP requirements for contamination control and ensuring production process hygiene.
Medical device manufacturers transferring components or finished products between non-sterile and sterile areas rely on this pass box to maintain sterility. The 304 stainless steel inner wall is easy to clean and disinfect, while the interlock system prevents simultaneous door opening, avoiding air exchange between clean and non-clean areas.
Dual sterilization systems: 200W nanocatalytic magnetic lamp (185-254nm) and 3 sets of high-energy pulse lamps (1KW each), achieving ≥99% sterilization rate.
360° no-dead-angle sterilization with alternating flashes (2-3 times/second), ensuring comprehensive disinfection of item surfaces.
High-quality 304 stainless steel construction (mirror inner wall) for corrosion resistance and easy cleaning.
Dual-door electronic interlock system prevents simultaneous door opening, blocking cross-contamination.
LCD display for working status monitoring, sterilization timing, and alarm reminders, enabling intuitive operation.
8mm thick tempered glass observation window (shock and UV resistant) for real-time item monitoring.
We offer end-to-end technical support for the Xenon Light Pass Box. Our services include on-site installation and commissioning, operator training (covering sterilization parameter setting and maintenance), and calibration of sterilization lamps to ensure consistent performance. We provide genuine replacement lamps and components, with a warranty on core parts (e.g., sterilization lamps: ≥60000H for nanocatalytic lamps, ≥20000H for pulse lamps). Additionally, we supply third-party sterilization test reports and provide technical consultations for customizing sterilization programs based on specific item types.
A1: The standard sterilization time is ≥5 minutes, with a total sterilization rate of ≥99%. The time can be adjusted via the LCD touchscreen based on item type and contamination risk (range: 5-30 minutes). For highly contaminated items, extend the sterilization time for enhanced effectiveness.
A2: The top nanocatalytic magnetic lamp has a service life of ≥60000 hours, and each high-energy pulse lamp has a service life of ≥20000 hours. We recommend regular performance testing (every 6 months) and replacement when UV intensity drops below 1000 μW/cm² to maintain sterilization efficiency.
A3: The standard working cavity dimensions are 800800800mm (installation dimensions: 10801120880mm). For larger items, we offer custom-sized pass boxes with adjusted cavity and installation dimensions to meet your specific transfer needs.
