VHP Head Cover Fumigation Chamber: Working Principle, Sterilization Validation And Applications

Introduction

In pharmaceutical manufacturing facilities, biosafety laboratories, medical institutions, and sterile production environments, preventing cross-contamination during personnel and equipment transfer has become increasingly important. Protective head covers, respirators, and personal protective equipment frequently move between clean and contaminated areas, creating potential contamination risks if sterilization procedures are inadequate.

Traditional sterilization technologies often present limitations such as material damage, chemical residues, lengthy processing times, and incomplete penetration into complex structures. To address these challenges, Vaporized Hydrogen Peroxide (VHP) technology has become a preferred sterilization solution due to its high efficiency, low operating temperature, residue-free characteristics, and excellent compatibility with sensitive materials.

A VHP Head Cover Fumigation Chamber is specifically designed for the sterilized transfer and decontamination of protective head covers and related respiratory equipment. By combining advanced VHP generation technology with intelligent process control and validation systems, the equipment provides reliable aseptic transfer solutions for highly regulated environments.

What Is a VHP Head Cover Fumigation Chamber?

A VHP Head Cover Fumigation Chamber is a specialized sterilization device that utilizes vaporized hydrogen peroxide as the sterilizing agent to eliminate microorganisms from protective head covers, respirators, and other related protective equipment.

The system is designed specifically for contamination-sensitive environments where equipment transfer requires strict sterilization control.

Its primary functions include:

• Low-temperature sterilization

• Broad-spectrum microbial elimination

• Residue-free processing

• Automated sterilization cycles

• Validation and traceability support

Compared with conventional sterilization methods, VHP technology provides a more material-friendly and environmentally safe approach.

Why Is VHP Sterilization Necessary?

Protective equipment often contains complex geometries and hidden areas that are difficult to sterilize effectively using conventional methods.

Challenges associated with traditional sterilization technologies include:

• High-temperature damage to sensitive materials

• Residual chemical contamination

• Limited penetration capability

• Long sterilization cycles

• Reduced operational efficiency

VHP sterilization overcomes these limitations by providing dry vapor capable of penetrating complex structures while maintaining material integrity.

Key benefits include:

• Rapid sterilization cycles

• High microbial reduction efficiency

• Compatibility with sensitive materials

• Minimal environmental impact

• Reliable aseptic transfer performance

Working Principle of VHP Head Cover Fumigation Chamber

The system operates through a coordinated process involving vapor generation, microbial inactivation, and catalytic decomposition.

VHP Generation Process

The sterilization process begins by introducing hydrogen peroxide solution into the vaporization system.

Typically:

• Hydrogen peroxide concentration: 35%

• Vaporization temperature: 120–150°C

Through flash evaporation technology, the liquid hydrogen peroxide rapidly transforms into dry vapor.

This process avoids:

• Liquid residue formation

• Surface condensation

• Material moisture damage

The generated VHP vapor then enters the chamber for sterilization.

Sterilization Mechanism

VHP vapor possesses strong oxidative properties and can penetrate complex structures including:

• Head cover folds

• Respirator interiors

• Protective equipment gaps

• Valve components

Microbial inactivation occurs through multiple mechanisms:

• Destruction of cell membrane structures

• Protein oxidation

• Enzyme inactivation

• DNA and RNA damage

This broad-spectrum mechanism effectively eliminates:

• Bacteria

• Viruses

• Fungi

• Molds

• Bacterial spores

For highly resistant biological indicators such as Geobacillus stearothermophilus, the system can achieve:

• 6-log microbial reduction

• Sterility Assurance Level (SAL) = 10⁻⁶

Catalytic Residue Removal

After sterilization, a catalytic decomposition module activates automatically.

Residual hydrogen peroxide rapidly decomposes into:

• Water vapor

• Oxygen

Unlike ethylene oxide or formaldehyde sterilization, VHP leaves no toxic residues after processing.

Residual concentration is continuously monitored to ensure safe operating conditions.

Main Equipment Structure

The VHP Head Cover Fumigation Chamber adopts a modular design specifically developed for protective head covers and respiratory protective equipment. The system integrates sterilization performance, airtight containment, process automation, and validation functions into a single platform.

Main Chamber Structure

The chamber structure is designed to meet stringent pharmaceutical and biosafety requirements.

Typical configurations include:

• Inner chamber made of 316L stainless steel

• External housing constructed from SUS304 stainless steel

• Fully welded rounded-corner design

• Surface polishing for easy cleaning and disinfection

• Corrosion-resistant construction

The rounded-corner structure minimizes contamination accumulation and eliminates cleaning dead zones.

Double-Door Interlocking System

To prevent cross-contamination between clean and non-clean areas, the chamber adopts a double-door interlocking mechanism.

Key features include:

• Mechanical interlocking

• Electromagnetic interlocking

• Airtight sealing structure

• Observation windows

• Automatic locking control

The two doors cannot be opened simultaneously, effectively isolating airflow between different areas.

VHP Generation and Monitoring System

The sterilization system integrates several advanced components for stable vapor generation and process control.

Core modules include:

• High-precision metering pumps

• Flash evaporation modules

• Temperature sensors

• Humidity sensors

• VHP concentration sensors

• Pressure sensors

Real-time monitoring ensures stable sterilization parameters and traceable process data.

Loading and Airflow Circulation System

The chamber uses dedicated loading structures designed specifically for head covers and respiratory protective equipment.

Key components include:

• Removable stainless steel loading racks

• HEPA filtration systems

• Air circulation fans

• Uniform airflow distribution channels

• Catalytic decomposition modules

This design ensures VHP vapor reaches all equipment surfaces and eliminates sterilization blind zones.

Key Technical Parameters

Sterilization effectiveness depends heavily on stable process control.

Typical operating parameters include:

Hydrogen Peroxide Solution:

• Concentration: 35%

Vaporization Parameters:

• Vaporization temperature: 120–150°C

Sterilization Parameters:

• VHP concentration: 5–15 ppm

• Chamber temperature: 25–45°C

• Relative humidity: 30–60%

• Sterilization duration: 30–60 minutes

Residue Removal Parameters:

• Decomposition time: 15–30 minutes

• Residual concentration: ≤1 ppm

Pressure Parameters:

• Chamber pressure: +5 Pa to +10 Pa

Precise control of these parameters ensures process consistency and repeatable sterilization results.

Main Application Scenarios

The VHP Head Cover Fumigation Chamber is specifically designed for sterile transfer applications involving respiratory protective equipment and protective head covers.

Biosafety Laboratories

In BSL-3 and BSL-4 laboratories handling infectious microorganisms, personnel protective equipment requires reliable sterilization before transfer between containment zones.

Applications include:

• Positive-pressure respirators

• Protective head covers

• Respiratory systems

• Personal protective equipment

The system helps prevent pathogen leakage and contamination transfer.

Pharmaceutical Manufacturing

Sterile pharmaceutical production environments require strict contamination control measures.

Typical applications include:

• Aseptic preparation workshops

• Vaccine manufacturing facilities

• Biopharmaceutical production lines

• Cleanroom transfer systems

The VHP chamber helps maintain aseptic transfer procedures and GMP compliance.

Medical Device Manufacturing

Medical device production often requires sterile transfer of protective equipment and accessories.

Applications include:

• Sterile production workshops

• Clean assembly areas

• Controlled manufacturing environments

Medical and Healthcare Facilities

Healthcare institutions use VHP sterilization systems to minimize contamination risks associated with protective equipment.

Typical applications include:

• Infectious disease hospitals

• Isolation wards

• Healthcare protective equipment management

• Sterile treatment areas

Research Institutions

Research laboratories and cell culture facilities require contamination-free environments for experimental reliability.

Applications include:

• Cell culture laboratories

• Biological research centers

• Sterile testing facilities

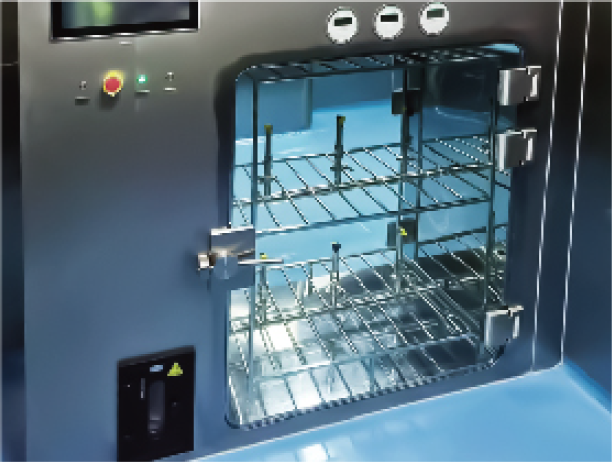

Sterilization Effectiveness Validation

Reliable sterilization performance requires systematic validation procedures.

Biological Indicator Validation

Biological indicators containing Geobacillus stearothermophilus are placed at difficult-to-sterilize locations such as:

• Respirator interiors

• Head cover folds

• Valve structures

Successful sterilization requires complete microbial inactivation with no biological growth detected after testing.

VHP Distribution Validation

Multiple monitoring locations are established inside the chamber to verify concentration uniformity.

Validation criteria generally include:

• Concentration deviation ≤ ±2 ppm

• No low-concentration zones

• Stable distribution throughout the chamber

Periodic Revalidation

Regular performance validation ensures long-term sterilization reliability.

Typical schedules include:

• Quarterly verification

• Semi-annual validation

• Annual performance qualification

Complete process records support regulatory audits and compliance requirements.

Why Choose Cigeair VHP Head Cover Fumigation Chamber?

Cigeair provides customized VHP sterilization solutions designed for pharmaceutical, biosafety, medical, and research applications.

Key advantages include:

• Low-temperature sterilization technology

• Residue-free sterilization process

• Intelligent PLC control system

• Real-time parameter monitoring

• GMP-compliant design

• Complete validation support

• Custom chamber configurations

• Reliable long-term operation

Frequently Asked Questions

Does VHP sterilization leave chemical residues?

No. Hydrogen peroxide vapor decomposes into water vapor and oxygen, leaving no harmful chemical residues.

Can VHP sterilize complex protective equipment structures?

Yes. VHP vapor has excellent penetration capability and can effectively sterilize folds, valves, gaps, and difficult-to-access areas.

What Sterility Assurance Level can be achieved?

The system can achieve a Sterility Assurance Level (SAL) of 10⁻⁶ with a 6-log microbial reduction.

Is VHP sterilization suitable for heat-sensitive materials?

Yes. Low-temperature processing makes VHP technology suitable for silicone, plastics, and other heat-sensitive materials.
