Modern industries demand stricter contamination control to protect sensitive manufacturing processes. However, maintaining massive, facility-wide ultra-pure environments is quickly becoming economically unsustainable. Facilities waste immense energy cooling and filtering vast empty spaces. Costs spiral out of control when engineers attempt to treat entire buildings to extreme standards.
Engineers and facility managers now face a crucial design dilemma. They must carefully choose between macro-level room filtration and micro-level tool integration. Relying solely on broad ceiling grids often overworks the HVAC infrastructure. Conversely, poor local integration fails to protect sensitive yields. Striking the right balance is critical for operational success.
This article breaks down the core comparison between these two approaches. We examine the choice between traditional ceiling-mounted units and localized, equipment-integrated systems. You will discover how to achieve your target ISO classifications efficiently. We will show you how to protect your product without over-engineering facility HVAC loads.

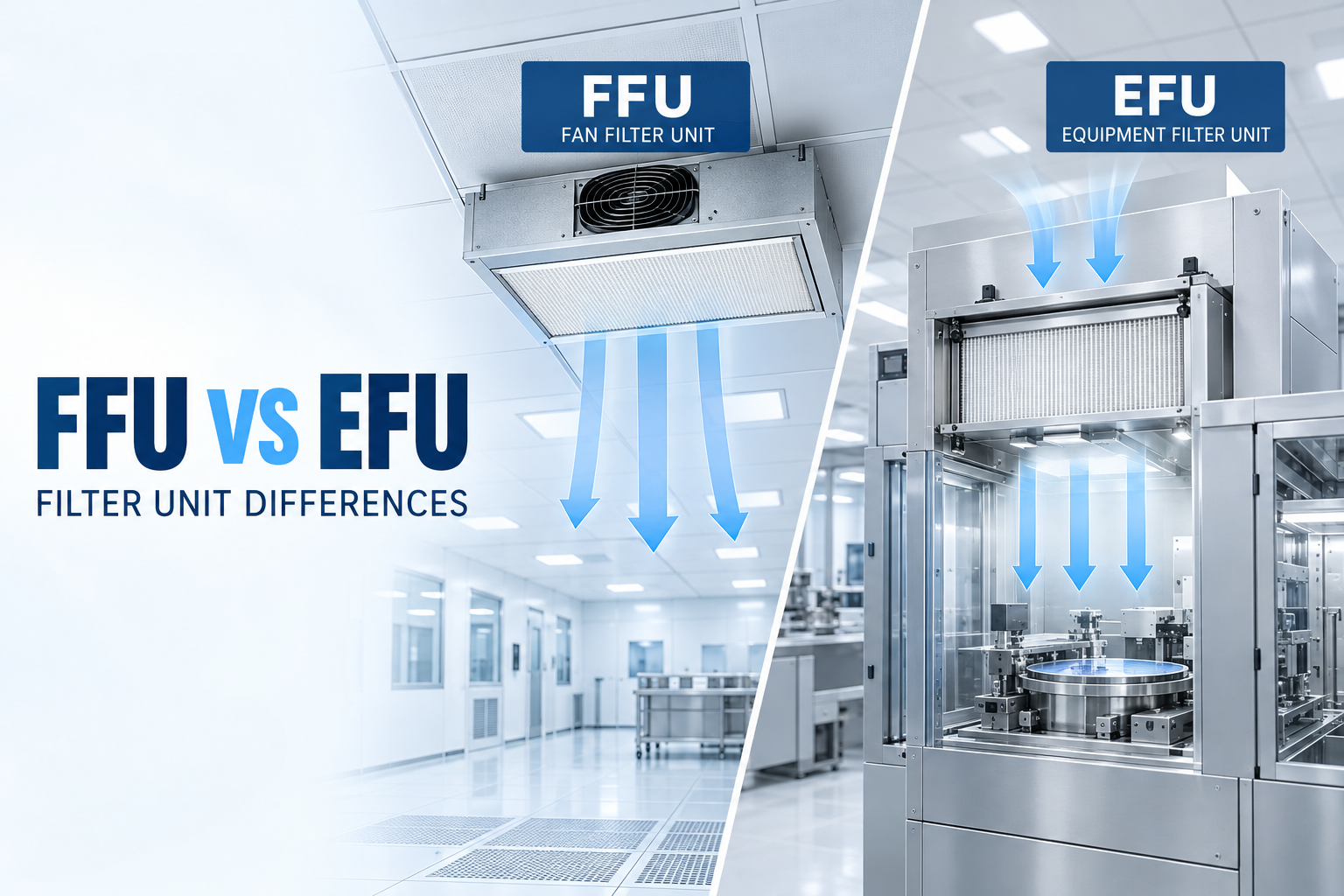

Scale of Application: A Fan Filter Unit (FFU) provides macro-level cleanroom air filtration for entire rooms (ISO 4–8), while an Equipment Filter Unit (EFU) targets micro-environments directly inside machinery (ISO 1–3).
Design & Footprint: EFUs feature ultra-compact form factors and specialized vibration control for sensitive process tools, whereas FFUs are standardized for standard ceiling grids.
Cost Efficiency: Integrating a PuriFan EFU into specific equipment allows facilities to downgrade the ambient room classification, significantly reducing overall energy consumption and HVAC CapEx.
Maintenance Protocol: FFUs often utilize room-side replaceable designs for facility maintenance, whereas EFUs require tool-side access coordinated with equipment downtime.
Understanding the architectural distinction between macro and micro filtration is your first step. Facilities deploy these technologies for fundamentally different spatial goals.
Industry professionals define the FFU as the standard building block for traditional cleanrooms. You will typically find them mounted inside modular T-grid or teardrop ceiling systems. These units operate together to create a macro-environment. They push air downward to achieve broad, sweeping unidirectional airflow. This laminar flow covers large facility footprints.
FFUs manage the ambient background environment. They protect personnel and prevent gross contamination across wide spaces. However, treating an entire room to highly stringent standards wastes significant energy. FFU networks require substantial structural ceiling support. They also demand robust facility-side electrical distribution.
Engineers design EFUs specifically for integration directly into OEM machinery. Common applications include semiconductor Equipment Front End Modules (EFEMs), pharmaceutical isolators, and automated handling tools. Rather than filtering the entire room, an EFU creates a localized mini-environment. It protects the product exactly where exposure occurs.
These units operate independently of the primary ceiling filtration system. They provide a micro-climate of ultra-pure air. This approach isolates critical process zones from ambient room fluctuations. Using EFUs allows facilities to keep the broader room at a lower, less expensive cleanliness classification.
Comparing performance capabilities reveals stark engineering differences. We must analyze how each unit handles spatial constraints, vibration, and airflow dynamics.
Table 1: Technical Capability Comparison
| Feature | Fan Filter Unit (FFU) | Equipment Filter Unit (EFU) |
|---|---|---|
| Spatial Integration | Standardized architectural grids (2x2, 2x4, 4x4). | Customized, ultra-low-profile machinery enclosures. |
| Vibration Control | Standard tolerances suitable for room occupancy. | Aggressive dynamic balancing for sensitive metrology. |
| Airflow & Pressure | Designed for standard HEPA/ULPA pressure drops. | Specialized motor curves for internal ducting and baffles. |
| Target Environment | Ambient room (ISO 4–8). | Tool-level mini-environment (ISO 1–3). |
Spatial constraints dictate your filtration choices. FFUs utilize standardized dimensions tailored for standard architectural grids. Manufacturers build them in 2x2, 2x4, or 4x4 sizes. This standardization simplifies large-scale ceiling installations. The depth of an FFU is generally forgiving, as ceiling plenums usually offer ample vertical space.
Conversely, EFUs feature highly customized, ultra-low-profile designs. Process tool manufacturers battle severe spatial constraints. They cannot afford bulky filtration units inside tight machine enclosures. EFUs bypass these limitations through compact motor designs and optimized housing geometries. They fit where standard ceiling units simply cannot.
Vibration metrics critically separate these two technologies. FFU vibration tolerances remain standard for general room occupancy. Slight ceiling vibrations rarely impact the facility floor. Therefore, FFU motor balancing focuses primarily on energy efficiency and acoustic noise reduction for human operators.
EFUs require aggressive dynamic balancing. Negligible vibration is an absolute necessity. EFU systems often sit directly above sensitive metrology equipment or advanced lithography tools. Even microscopic harmonic resonance can destroy product yields. Engineers isolate EFU motor plenums to ensure zero structural transfer to the host machine.
Airflow requirements also diverge significantly. FFUs generate enough pressure to overcome standard HEPA or ULPA filter resistance. They maintain positive room pressurization against adjacent corridors. Their airflow paths remain relatively unobstructed once air exits the filter face.
EFUs face a much harsher aerodynamic reality. They must navigate internal equipment ducting and tight baffles. They require specialized motor curves to handle highly specific localized flow rates. Tool enclosures create unpredictable back-pressure. EFU fans must actively adjust to maintain precise laminar flow directly over the product.
Selecting the right unit requires a rigorous evaluation of your process needs. Following structured criteria ensures you deploy the correct cleanroom air filtration strategy.
Evaluate the massive energy penalty of cooling and filtering an entire room. Deploying hundreds of FFUs requires a colossal upfront facility investment. Furthermore, the operational expense of continuously moving huge volumes of air is staggering. Facility managers must account for these long-term power demands.
Compare this to the upfront cost of integrating localized units. Purchasing customized EFUs increases the capital expenditure of the process tool itself. However, it slashes the facility's overall HVAC burden. You can downgrade the broader room classification. This strategy yields significant financial returns through drastically lower monthly utility bills.
Assess your specific product requirements. Does your process demand ISO 1, 2, or 3 conditions? Achieving this extreme cleanliness facility-wide via FFUs is rarely viable. The required air change rates would create unsustainable turbulence and noise.
EFUs effectively bridge this gap. They deliver ISO 1–3 conditions directly at the critical zone. By enveloping the product in a pristine micro-environment, you protect sensitive yields. The surrounding room can safely operate at a manageable ISO 7 or 8 level.
Heat dissipation is a hidden danger in micro-environments. EFUs introduce heat directly into the closed machine enclosure. Advanced EC motors run efficiently, but they still reject thermal energy. In a tightly sealed tool, this heat rapidly accumulates.
You must evaluate whether your localized cooling capacity can handle this internal heat rejection. Some EFUs feature integrated cooling coils to offset motor heat. Failing to manage this thermal load leads to process instability. Temperature fluctuations can ruin chemical reactions or warp precision components.
Control architectures differ vastly between macro and micro systems. FFUs typically connect to a facility-wide Building Management System (BMS). Alternatively, they link to a central programmable logic controller (PLC). Facility engineers command them in large zones or grids.
EFUs demand much closer integration. They must communicate seamlessly with the specific tool’s onboard controller. They use protocols like Modbus or localized analog signals. The EFU must sync its fan speeds with distinct tool states. For example, it might lower RPM during idle phases and ramp up during active processing.
Confirm all relevant compliance frameworks before specification. Both units must meet standards like CE, UL, and ISO 14644-1. However, EFUs face far stricter scrutiny regarding material outgassing. This is known as Airborne Molecular Contamination (AMC).
Because the EFU sits mere inches from the wafer or product, any chemical off-gassing causes immediate defects. Manufacturers must build EFUs using specialized low-outgassing potting compounds and sealants. Standard FFUs rarely face this level of AMC scrutiny.
Engineers often learn hard lessons when crossing the boundaries of macro and micro filtration. Avoid these common industry mistakes to ensure seamless operation.
Specifying an oversized unit for a small tool enclosure is a frequent error. Forcing a standard fan filter unit FFU into a confined machine space causes severe aerodynamic issues. The excessive airflow bounces off internal machine walls.
This creates violent turbulence. Instead of sweeping particles away, the turbulence suspends them directly above your product. You must precisely match the fan curve to the tool's volume. More airflow does not automatically equal cleaner air.
Failing to account for filter replacement clearance creates massive operational headaches. Never install a top-access unit where facility ceiling infrastructure blocks it. Maintenance teams cannot service the unit without tearing down adjacent ductwork.
Always verify the maintenance access routes. If ceiling clearance is tight, specify bottom-loading or room-side replaceable designs. Ignoring serviceability turns a routine 20-minute filter swap into a 12-hour facility shutdown.
Hard-mounting standard architectural units onto high-precision OEM equipment is a critical failure. Standard units lack proper mechanical isolation. Their motor harmonics travel directly through the tool frame.
This leads to yield-killing tool resonance. Sensitive metrology equipment will fail calibration. Always utilize specialized EFUs equipped with isolated motor plenums. They absorb internal vibrations before they reach the equipment chassis.
Making the final selection requires aligning your architectural strategy with your process constraints. Use this clear breakdown to shortlist the correct technology.
Choose facility-level ceiling units for broad architectural applications. They excel in scenarios requiring sweeping coverage.
Building new ISO 5–8 cleanrooms: They form the ideal grid for standard large-scale facilities.
Upgrading legacy rooms: They easily convert old turbulent-flow spaces into modern laminar flow environments.
Dynamic exposure: Specify them when product exposure happens dynamically across the entire room, rather than inside closed tools.
Choose specialized tool-level units when extreme precision and isolation are paramount. Incorporating a PuriFan EFU is ideal for specific micro-environments.
Designing OEM equipment: They integrate perfectly into new semiconductor tools or pharma isolators.
Upgrading existing machinery: They help legacy tools handle tighter, next-generation contamination thresholds.
Deploying isolated mini-environments: They isolate the process entirely, saving on massive facility-wide HVAC upgrades.
The choice between FFU and EFU is never a matter of one being universally superior. It is a matter of strategic architectural intent. You must decide whether you are filtering the facility or filtering the tool. Understanding this distinction prevents massive engineering missteps and budget overruns.
For maximum return on investment, modern facilities should actively utilize a hybrid approach. Deploy traditional FFUs for ambient ISO 7 or 8 background environments. Simultaneously, implement specialized EFUs for localized ISO 2 or 3 critical process zones. This balanced methodology ensures optimal product protection while aggressively minimizing energy consumption.
Do not finalize your cleanroom design without analyzing the aerodynamics of both your room and your machinery. Consult with an engineering team for comprehensive airflow modeling today. We highly recommend downloading a technical spec sheet to verify high-purity EFU integration requirements for your next project.
A: No. EFUs protect the product inside the specific tool enclosure. However, you still need baseline ambient filtration provided by FFUs. This background macro-filtration protects the operators. It also prevents gross contamination from migrating through the facility and entering the tool when doors open.
A: It features a specific focus on ultra-low vibration and strict micro-environment thermal management. Additionally, it provides seamless integration with OEM tool PLCs. This differs vastly from generic standard units, which are primarily designed for simple room-side ceiling applications.
A: FFUs increasingly feature room-side replaceable (RSR) filters. This allows technicians to swap filters without breaching the ceiling plenum. EFUs require maintenance protocols strictly integrated into the machine's specific downtime schedule. Servicing them often requires localized tool teardown and careful calibration.
A: Both can be utilized depending on process requirements. However, EFUs predominantly use PTFE ULPA filters. These specialized filters easily achieve ISO 1–2 classifications. They offer minimal off-gassing (AMC) and maintain much lower pressure drops in tight machine spaces.
