Views: 0 Author: Site Editor Publish Time: 2026-06-10 Origin: Site
In pharmaceutical manufacturing, biotechnology laboratories, medical device production, and semiconductor facilities, maintaining product sterility and environmental cleanliness is a fundamental requirement. While many facilities focus on cleanroom design and air filtration systems, material transfer remains one of the most vulnerable stages in contamination control.
During the movement of sterile products, components, containers, or tools between critical process areas, materials may be exposed to airborne particles, microorganisms, or cross-contamination risks. Even a brief interruption of environmental protection can compromise product quality, lead to batch rejection, or create regulatory compliance issues.
To address these challenges, many GMP-compliant facilities utilize a Class A Laminar Flow Transfer Cart. Acting as a mobile ISO 5 clean environment, this specialized equipment provides continuous protection during material transportation and ensures that critical products remain within a validated clean zone throughout the transfer process.

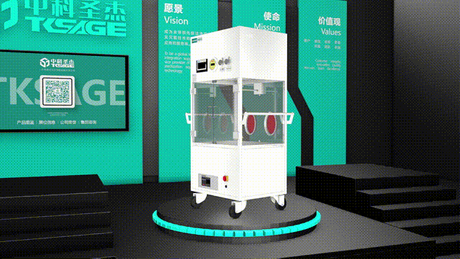

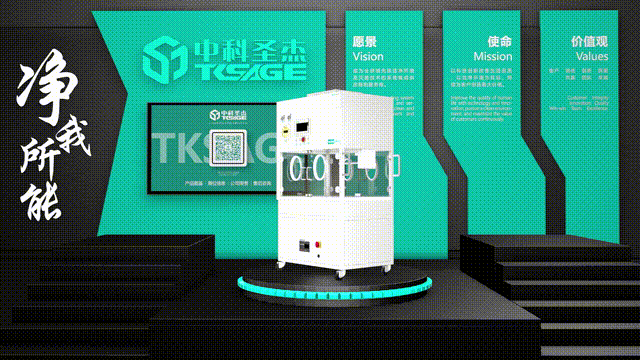

A Class A Laminar Flow Transfer Cart is a mobile cleanroom transfer system equipped with an integrated air purification unit capable of maintaining an ISO Class 5 (Grade A) environment during transportation.
Unlike conventional transfer carts, which only provide physical transportation, a laminar flow transfer cart continuously generates HEPA-filtered unidirectional airflow to create a localized sterile environment around the transferred materials.
The system is specifically designed for high-risk aseptic operations such as:
* Sterile pharmaceutical production
* Lyophilized product handling
* Vaccine manufacturing
* Open-container material transfer
* Isolator and RABS docking
* Semiconductor component transportation
* Medical device manufacturing
By maintaining continuous clean airflow throughout the transfer process, the cart effectively eliminates contamination risks associated with open material handling.
Traditional material transfer methods often introduce several contamination-control challenges.
During transfer between clean zones, products may be exposed to surrounding air, increasing the possibility of particle and microbial contamination.
Static cleanliness classifications within cleanrooms do not automatically protect materials while they are moving between processing areas.
Materials transferred across different cleanroom zones may carry contaminants that affect product quality or process integrity.
A Class A Laminar Flow Transfer Cart addresses these challenges by creating a mobile clean environment that follows the material throughout the transfer process.
This enables seamless movement between:
* Filling lines
* Lyophilizers
* Aseptic staging areas
* Isolators
* RABS systems
* Sterile packaging zones
without compromising cleanliness requirements.
The performance of a Class A Laminar Flow Transfer Cart depends on the integration of several critical systems.
The cart body is typically manufactured from SUS304 or pharmaceutical-grade SUS316L stainless steel.
Key advantages include:
* Excellent corrosion resistance
* Compatibility with alcohol and VHP disinfection
* Easy cleaning and sanitization
* Smooth surfaces without contamination traps
The enclosed work area is designed with safety glass sliding doors and optional glove ports to support sterile operation while maintaining operator convenience.
The purification system serves as the core of the transfer cart.
It generally consists of:
The pre-filter captures larger particles before they reach the HEPA filter.
Benefits include:
* Reduced HEPA loading
* Improved filtration efficiency
* Extended filter service life
The final filtration stage uses an H14 HEPA filter with a filtration efficiency of at least 99.995% at 0.3 μm.
This filtration performance enables the cart to maintain ISO Class 5 cleanroom standards throughout operation.
A variable-speed DC fan continuously supplies clean air through a flow-equalizing layer.
Typical airflow specifications include:
* Air velocity: 0.36–0.54 m/s
* Recommended velocity: approximately 0.45 m/s
* Uniform airflow distribution
* Minimal turbulence
The result is a stable laminar airflow barrier that continuously removes contaminants from the protected workspace.
The working principle of a Class A Laminar Flow Transfer Cart is based on continuous air purification and unidirectional airflow protection.
The process begins when ambient air enters the system through the pre-filter. Large airborne particles are captured before reaching the main filtration stage. The air is then forced through an H14 HEPA filter, where particles and microorganisms are effectively removed.
After filtration, the clean air passes through an airflow equalization layer that distributes airflow uniformly across the working area. This creates a stable vertical laminar airflow barrier that continuously sweeps contaminants away from the material surface.
The airflow cycle can be summarized as follows:
Ambient air enters the purification system.
The pre-filter removes larger particles.
The HEPA filter captures microscopic contaminants.
Clean air is distributed evenly through the airflow equalization layer.
Vertical laminar airflow protects the transferred materials.
Return air exits through the lower section of the cart.
Real-time monitoring continuously verifies system performance.
This closed-loop protection system ensures that materials remain within a validated ISO 5 clean environment throughout transportation.
Class A Laminar Flow Transfer Carts are designed to meet strict cleanroom and pharmaceutical industry requirements.
The protected working area must achieve ISO Class 5 cleanliness.
Typical limits include:
≤3,520 particles ≥0.5 μm per cubic meter
Continuous particle control during operation
GMP Grade A Requirements
For pharmaceutical applications, the cart must comply with GMP Grade A standards.
Requirements typically include:
Microbial concentration ≤1 CFU/m³
No visible contamination
Continuous environmental protection
To maintain aseptic conditions, airflow must remain stable and uniform.
Typical specifications:
Air velocity: 0.36–0.54 m/s
Recommended operating velocity: 0.45 m/s
Airflow uniformity deviation: ≤20%
Pharmaceutical-grade models commonly utilize:
SUS316L stainless steel
Surface roughness Ra ≤0.8 μm
Pharmaceutical-grade sealing materials
Chemical-resistant construction
Before delivery, the equipment should undergo:
Airflow visualization testing
Particle counting verification

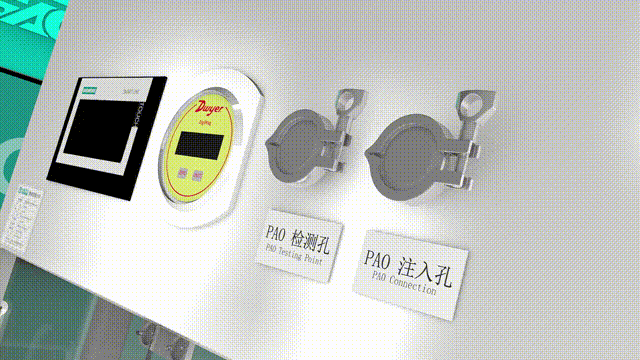

HEPA filter integrity testing
Differential pressure testing
Air velocity measurement
Operational stability testing
These validation procedures ensure compliance with regulatory expectations and customer qualification requirements.
The pharmaceutical industry represents the most common application for Class A Laminar Flow Transfer Carts.
Typical uses include:
Sterile vial transfer
Vaccine production
Lyophilized product handling
Aseptic material movement
Sterile component transportation
The cart provides continuous environmental protection during movement between critical production stages.
Modern pharmaceutical facilities often utilize isolators and Restricted Access Barrier Systems (RABS).
A laminar flow transfer cart enables seamless docking between:
Filling lines
Isolators
RABS systems
Freeze dryers
Packaging areas
This minimizes contamination risks during material transfer.
Semiconductor production environments require strict particulate control.
The transfer cart helps protect:
Silicon wafers
Optical components
Precision electronic assemblies
Microchips
from airborne contamination and surface defects.
Medical device manufacturers use transfer carts for:
Sterile implant handling
Surgical instrument transfer
Packaging component movement
Final assembly operations
Biotechnology and Research Laboratories
Research facilities benefit from contamination-controlled transportation of:
Cell culture materials
Biological samples
Laboratory reagents
Sterile media
Choosing the correct transfer cart requires careful evaluation of operational requirements.
The internal workspace should match the size and quantity of materials being transported.
Common configurations include:
800 × 600 × 750 mm
1000 × 600 × 750 mm
Customized dimensions
Always verify:
HEPA filter grade
Filter efficiency certification
Airflow uniformity performance
For pharmaceutical applications, H14 HEPA filtration is generally recommended.
Long operating times are critical for uninterrupted protection.
Recommended runtime:
Minimum 8 hours
Automatic switching between mains power and battery operation
Modern GMP facilities increasingly require:
Airflow monitoring
Differential pressure monitoring
Alarm management
Data recording capability
Audit trail support
These features improve compliance and operational reliability.
For pharmaceutical environments:
SUS316L stainless steel is preferred.
For electronics manufacturing:
SUS304 stainless steel may be sufficient.
Routine maintenance directly affects cleanliness performance and equipment lifespan.
Operators should regularly clean:
Stainless steel surfaces
Glass panels
Glove ports
Handles and contact surfaces
Recommended cleaning agents include:
75% Isopropyl Alcohol
Neutral disinfectants
Approved cleanroom cleaning solutions
Typical replacement interval:
Every 1–3 months
depending on operating conditions.
HEPA filters should be replaced when:
Differential pressure doubles from the initial value
Airflow performance decreases
Integrity testing fails
Most facilities replace filters every 6–12 months based on usage intensity.
Monthly inspection should verify:
Stable operation
No abnormal noise
No excessive vibration
Proper airflow output
Regular inspection of wheels and braking systems helps ensure:
Smooth movement
Safe positioning
Reduced particle generation
What cleanliness level does a Class A Laminar Flow Transfer Cart provide?
Most pharmaceutical models provide ISO Class 5 (Grade A) cleanliness during operation.
Can the cart maintain cleanliness while moving?
Yes. The integrated purification system continuously supplies HEPA-filtered laminar airflow during transportation.
Why is differential pressure monitoring important?
Differential pressure monitoring helps determine filter loading conditions and indicates when filter replacement is required.
How long can the cart operate on battery power?
Most GMP models support at least 8 hours of continuous operation.
Is SUS316L necessary?
For pharmaceutical and biotechnology applications, SUS316L is generally recommended because of its superior corrosion resistance and cleanability.
Cigeair specializes in contamination-control equipment for pharmaceutical manufacturing, biotechnology laboratories, medical device production, and cleanroom applications worldwide.
Our Class A Laminar Flow Transfer Carts feature:
ISO 5 / GMP Grade A protection
H14 HEPA filtration systems
Stable laminar airflow technology
SUS304 or SUS316L construction
Long battery runtime
Intelligent monitoring systems
Customized dimensions and configurations
Full validation support
Each system is engineered to provide reliable contamination control throughout critical material transfer operations.
Looking for a reliable Class A Laminar Flow Transfer Cart for your pharmaceutical or cleanroom project?
Cigeair provides customized contamination-control solutions designed to meet the highest standards of GMP compliance, sterile manufacturing, and cleanroom operation.
Contact our engineering team today to discuss your application requirements and receive a tailored solution for your facility.
