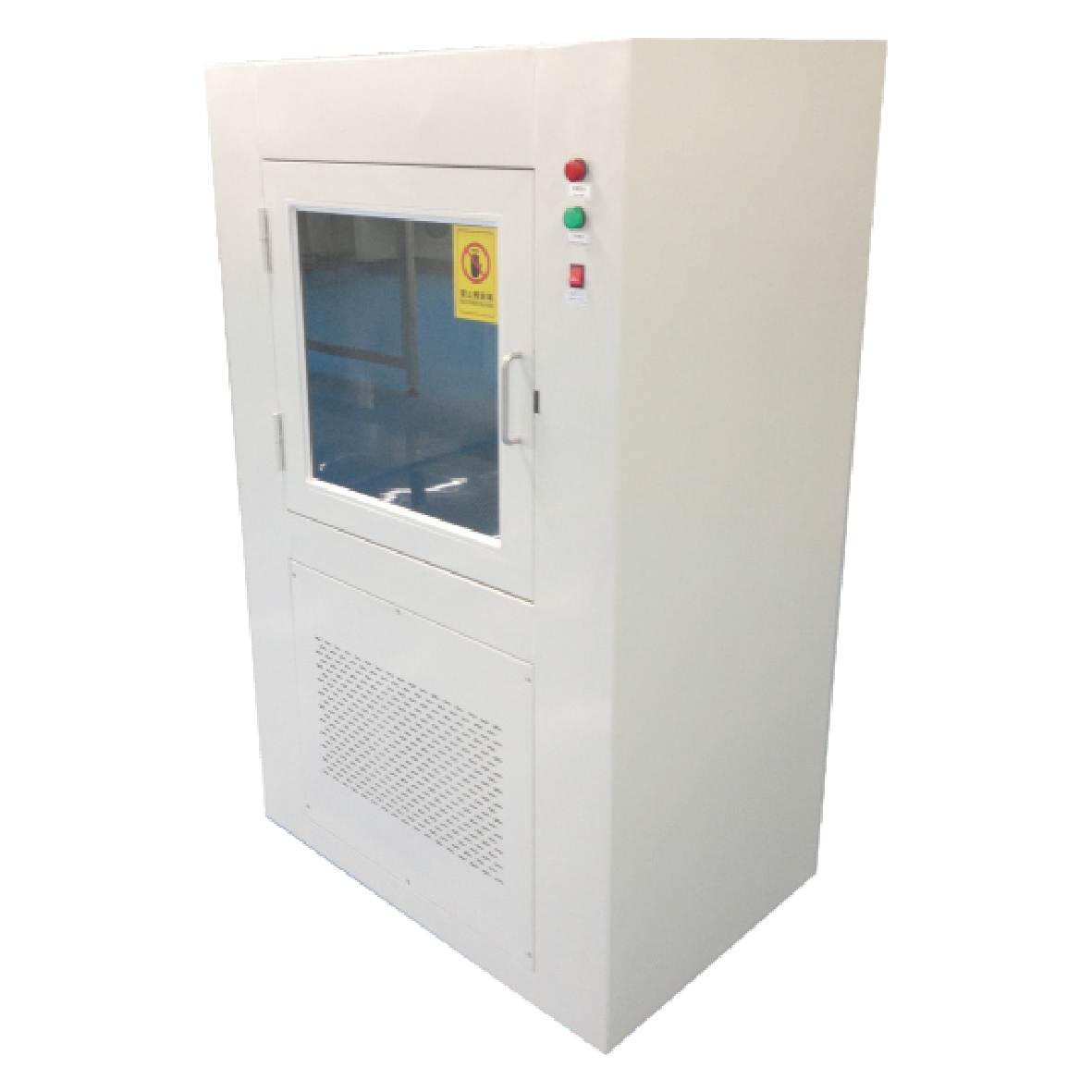

The air shower pass box is designed based on the air shower. Its fan can quickly blow out air which is filtered through the HEPA filter, and the filtered clean airflow can reach up to 20 m/s or more after spraying from the stainless steel spray nozzle, thus effectively and quickly removing the dust particles attached to the surface of objects. The air can be recirculated through the primary-efficiency filter and then HEPA filter, realizing significant filtration effect and high reusability.

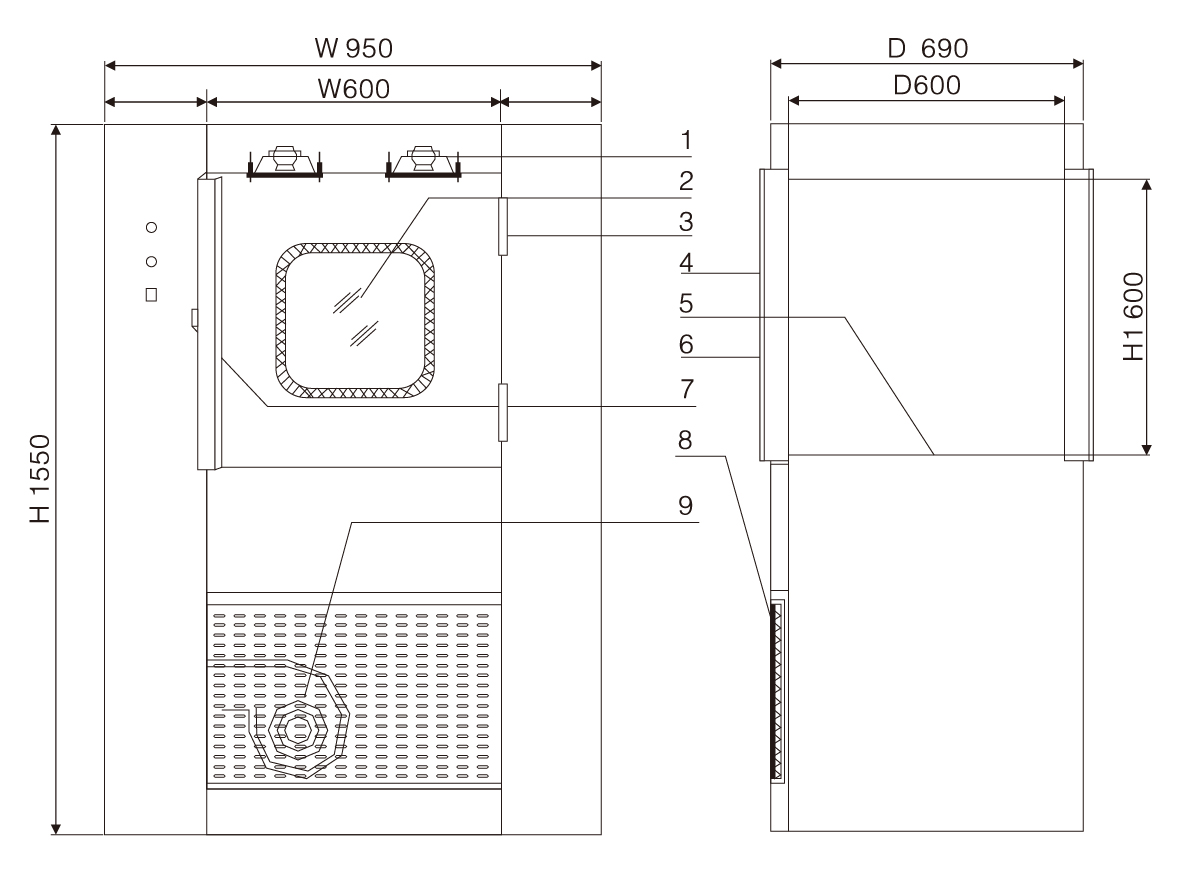

 | Description: 1. Air nozzle 2. Glass 3. Hinge 4. Door 5. Stainless steel mesh plate 6. Handle 7. Electronic lock 8. Primary-efficiency mesh plate 9. Fan | Optional accessories:
1. Air pressure gauge 2. Intercom 3. UV lamp 4. Drum |
| Model | Air Shower Pass Box |
| Overall dimensions (mm) | W950×D690×H1550 |
| Air shower dimensions (mm) | W600×D600×H600 |
| Air speed at nozzle (m/s) | 18-22 |
| Number of nozzles | 4 |
| Blowing time (s) | Set to 10s by default, ranging from 10s-99s (adjustable) |
| Cabinet main material | Cold-rolled steel plate for cabinet, and stainless steel for inner wall |
| HEPA filter dimensions | 484×484×120mm |
| Filtration efficiency | 99.99at0.3μm |
| Fan power (W) | 750 |
| Supply voltage | 380V50Hz |
