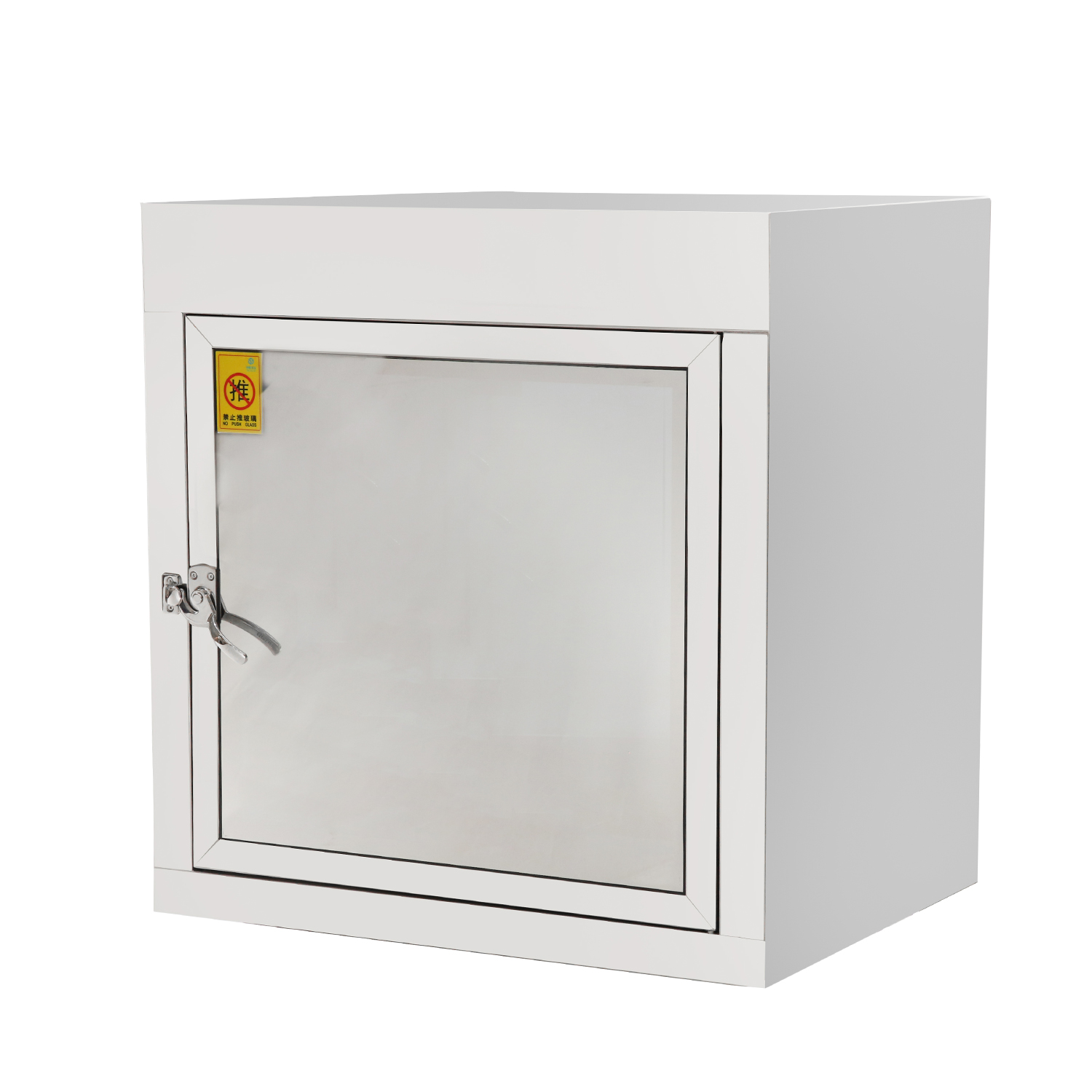

Cleanroom standard pass-through window

Product Overview

The Cleanroom standard pass-through window is a specialized air purification equipment used in conjunction with clean workshops. It is designed for the transfer of medium and small-sized cargo between clean rooms of the same or different cleanliness levels, or between clean rooms and non-clean rooms. By reducing the number of door openings and closings in clean rooms, it minimizes the intrusion of external contaminated air, thereby maintaining the cleanliness of the clean area. The product is widely used in microtechnology, electronic industry, biological laboratories, pharmaceutical factories, hospitals, food processing industry, and other places requiring air purification, providing a safe and efficient cargo transfer channel.

Scenario-Based Solutions

Transfer Between Clean Room and Non-Clean Room

In pharmaceutical factories, raw materials need to be transferred from non-clean storage areas to clean production workshops. The Clean Pass Box is installed at the interface between the two areas. After placing the raw material packaging in the pass box, the external door is closed, and the UV sterilizer is activated for disinfection. After disinfection, the internal door (connected to the clean room) can be opened to take out the materials, avoiding direct contact between the clean room and the external environment and preventing contamination.

Transfer Between Different Cleanliness Level Zones

In electronic manufacturing workshops, components need to be transferred from Class 1000 clean zones to Class 100 clean zones. The Clean Pass Box’s double-door interlocking function ensures that only one door can be opened at a time, preventing air flow between different cleanliness zones. The high-efficiency filtration system inside the pass box further purifies the air around the cargo, ensuring that the transferred components meet the cleanliness requirements of the target zone.

Cargo Transfer in Food Processing Workshops

In food processing plants, semi-finished products need to be transferred between processing zones and packaging zones. The Clean Pass Box’s stainless steel structure is easy to clean and corrosion-resistant, complying with food hygiene standards. The UV sterilization function kills bacteria and microorganisms on the surface of the cargo, ensuring food safety during the transfer process and avoiding cross-contamination between different processing links.

Key Features

UV Sterilization System: Equipped with a UV sterilizer that can be switched on and off independently. It effectively kills bacteria, viruses, and other microorganisms on the surface of the cargo, ensuring the cleanliness of the transferred items.

Double-Door Interlocking Design: The inner and outer doors are interlocked, and only one door can be opened at any time. This prevents air convection between different cleanliness zones and fundamentally avoids cross-contamination.

High Sealing Performance: The equipment adopts an inner and outer housing design, with rounded treatment around the inside to ensure gap-free connection. The door seal is made of high-quality materials, enhancing airtightness and reducing air leakage.

Humanized Configuration: Equipped with pairing paging intercoms, facilitating communication between operators inside and outside the clean room. The double-layer tempered glass door and stainless steel meniscus handle ensure convenient operation and durability.

Diverse Size Options: Offers multiple models (ZKSJ-CLCDC 400/500/600/800) with overall dimensions ranging from 600x470x450mm to 1000x870x850mm. It can meet the transfer needs of different sizes of cargo.

Technical Support & Services

Pre-Sales Customization: According to the customer’s cargo size, transfer frequency, and clean room layout, recommend suitable models or customize the size of the pass box to ensure perfect integration with the on-site environment.

Installation and Debugging: Send professional technicians to conduct on-site installation, adjust the interlocking function and sealing performance, and test the UV sterilization effect to ensure the equipment operates normally.

Operation and Maintenance Training: Train the customer’s staff on the use of the centralized control panel, UV sterilizer switch, intercom system, and daily cleaning and maintenance methods.

After-Sales Guarantee: Provide a one-year warranty. For problems such as door interlocking failure or UV lamp damage during use, respond within 48 hours and provide replacement parts and repair services.
