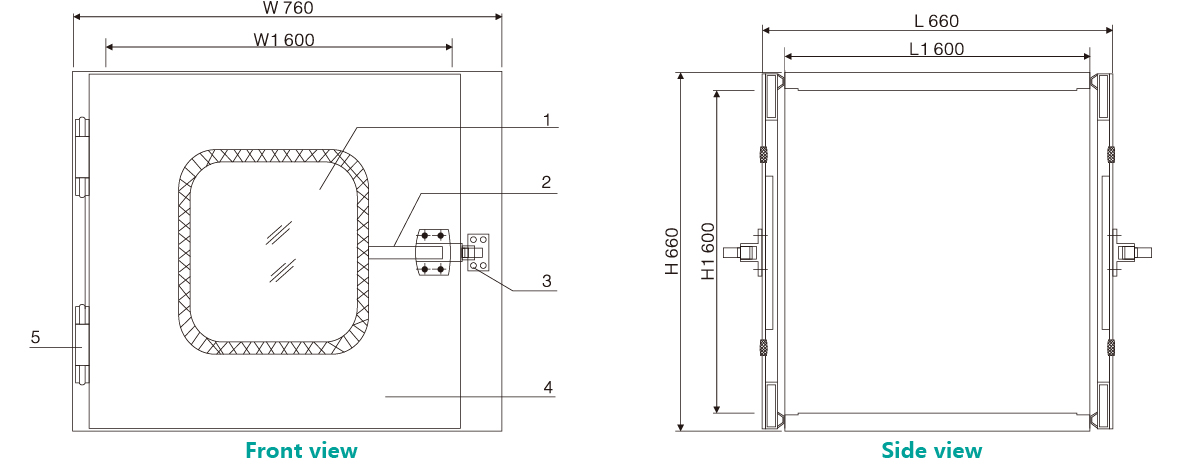

 | Description:
1. Plexiglass 2. Handle 3. Mechanical lock 4. Door 5. Hinge
| Optional accessories:
1. Intercom 2. Stainless steel material 3. UV lamp 4. Drum |
Introduction

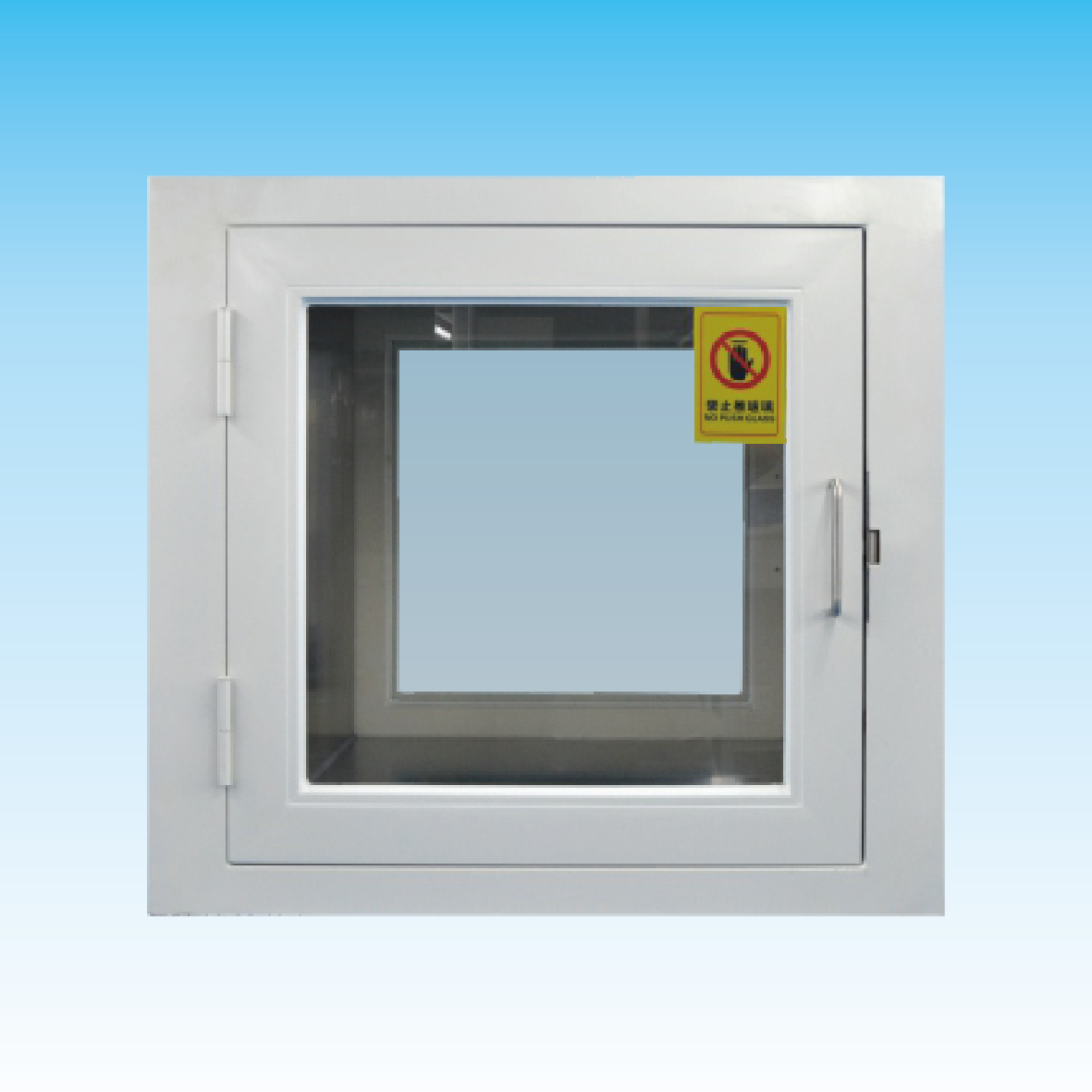

The Common Pass Box by TKSAGE is an essential contamination control device for cleanrooms, designed for safe and efficient item transfer. It features double-door interlocking (mechanical or electronic) to prevent air exchange between clean and non-clean areas, reducing the number of staff entries into cleanrooms and minimizing contamination risks. The pass box is economical, compact, and easy to install, widely used in microtechnology, biological laboratories, pharmaceutical factories, hospitals, food processing, and electronics industries. It ensures that items are transferred without compromising cleanroom cleanliness.
Scenario-Based Solutions
Biological Laboratories
Biological labs handling cell cultures, pathogens, or sterile samples need to transfer test tubes, Petri dishes, and reagents safely. The Common Pass Box’s interlocking design prevents external air from entering the lab, while the optional UV lamp sterilizes items during transfer, protecting experimental samples from contamination.
Pharmaceutical Factories
Pharmaceutical production requires strict control of item transfer between cleanrooms (e.g., raw materials, tools, finished products). The pass box acts as a buffer zone, ensuring that items are decontaminated (via optional UV sterilization) before entering the clean area, complying with GMP standards and reducing cross-contamination risks.
Electronics & LCD Factories
Electronic components and LCD panels are sensitive to dust and static. The Common Pass Box provides a dust-free transfer channel, with stainless steel inner walls to reduce static generation. It minimizes staff movement between cleanrooms, protecting precision components from dust and improving production efficiency.
Product Features
Double-Door Interlocking: Mechanical or electronic interlocking prevents simultaneous opening of two doors, blocking air exchange and contamination.
Durable & Hygienic: Cold-rolled steel cabinet with plastic spraying and stainless steel inner walls, easy to clean and corrosion-resistant.

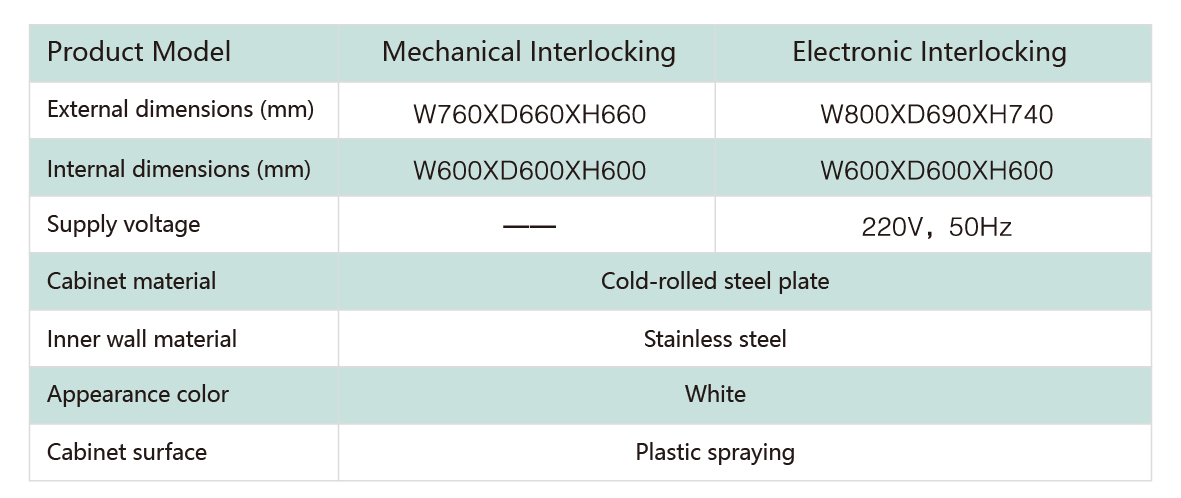

Compact & Space-Saving: Small footprint (external dimensions as small as W760×D660×H660 mm) fits limited spaces in cleanrooms.
Optional Accessories: Supports UV lamps, intercom systems, drums, and stainless steel materials to meet specific industry needs.
Economical & Practical: Cost-effective solution for item transfer, reducing cleanroom operation and maintenance costs.
Technical Support & Services
We offer comprehensive services for the Common Pass Box to meet customer requirements:
Customization: Choose between mechanical or electronic interlocking, customize dimensions, and select accessories according to user needs.
Installation & Commissioning: Professional team provides on-site installation, interlocking function testing, and operation guidance.
After-Sales Maintenance: 1-year warranty for the whole machine, free technical consultation, and fast supply of replacement parts (locks, UV lamps).
Documentation & Compliance: Provide product certificates and compliance reports to meet industry regulations (GMP, ISO).
FAQ
Q1: What are the power supply requirements for electronic interlocking models?
A: Electronic interlocking models use 220V 50Hz power supply, while mechanical interlocking models require no power.
Q2: What is the internal volume of the pass box?
A: The internal dimensions are W600×D600×H600 mm for both mechanical and electronic interlocking models, suitable for most small to medium-sized items.
Q3: How to use the optional UV lamp?
A: The UV lamp is installed inside the pass box, automatically activating when the doors are closed, sterilizing items for a set time (adjustable according to user needs) to ensure decontamination.
