Biological Safety Isolation Valve: The Essential "Valve" Force in Biosafety

I.Core Definition of the Isolation Valve

Leakage Valve, Airtight Valve

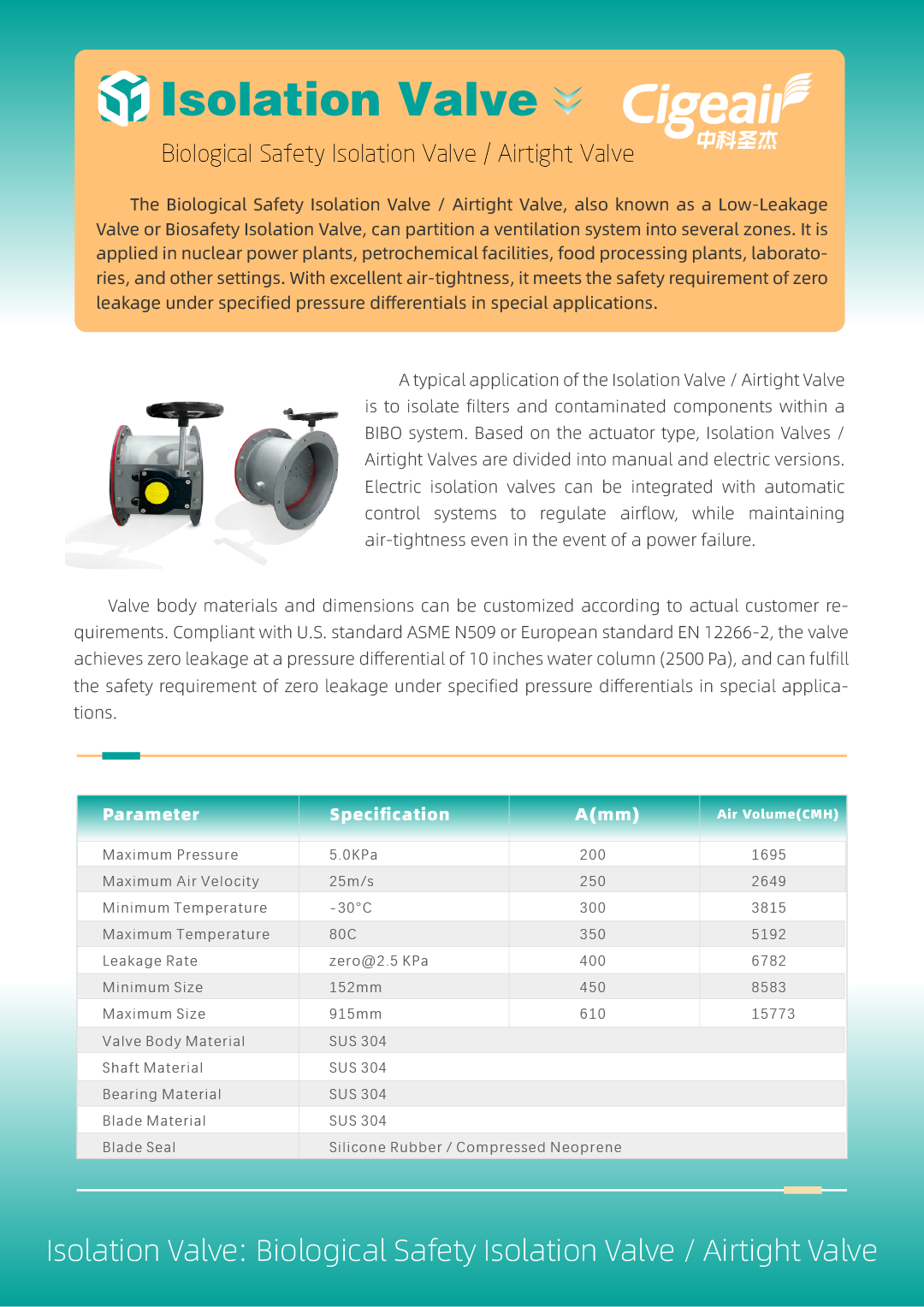

•The Biological Safety Isolation Valve (also known as a Low-Leakage Valve/Airtight Valve) is a control device installed within ventilation ductwork. It utilizes a precision sealing structure to segment the system into independent zones, enabling airflow blockage and achieving low/zero leakage under specified pressure differentials. Its core functions are to isolate contaminated sections, protect personnel and the environment, and ensure disinfection safety.

• Typical Applications: Isolating the HEPA filter within a BIBO (Bag-In/Bag-Out) filter housing system to block contaminated airflow during filter replacement; achieving zonal isolation in the main supply and exhaust ducts of BSL-3/4 laboratories to prevent pathogen spread.

II. Working Principle of the Isolation Valve

Electric Type / Manual Type

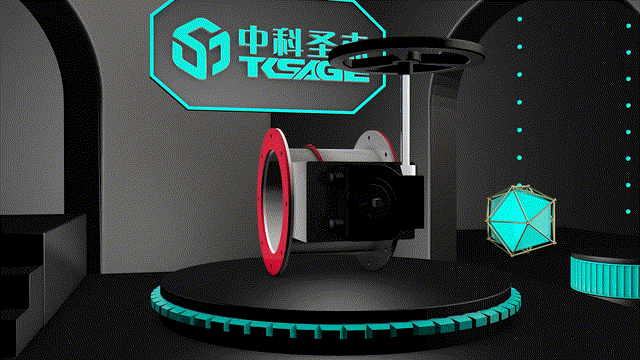

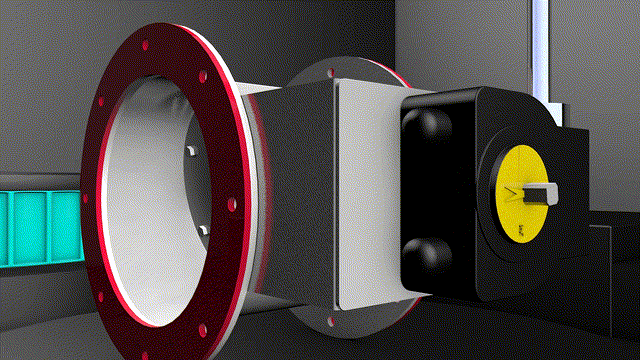

Core Principle: It employs a rotating disc-type sealing structure where the valve blade tightly mates with the sealing ring, and the sealing force is further enhanced under pressure differential. The electric type is driven by an actuator, with a spring return mechanism to maintain sealing in case of power loss; the manual type is locked via a mechanical handle.

III. Isolation Valve Selection Guide

Application Scenarios and Core Advantages

【Electric Isolation Valve】

Applicable Scenarios: BSL-3/4, Pharmaceutical Cleanrooms (Automatic Control)

Core Advantages: Can interface with BMS; automatically seals upon power loss

【Manual Isolation Valve】

Applicable Scenarios: Small Laboratories, Maintenance Access Points

Core Advantages: Simple structure, low cost, high reliability

【Round Valve】

Applicable Scenarios: Round Duct Systems

Core Advantages: Easy installation, low airflow resistance

【Rectangular Valve】

Applicable Scenarios: Rectangular Ducts / Cleanroom Ceiling Installations

Core Advantages: Adapts to large ducts, large sealing surface area

• Key Selection Points: Prioritize matching system pressure differentials (e.g., ±2500Pa), leakage rate standards, compatibility with disinfectants (hydrogen peroxide/formaldehyde), and ensuring port dimensions match the ductwork.

IV. Key Parameters of the Isolation Valve

Leakage Rate, Pressure Resistance Range

• Leakage Rate: Under a pressure differential of ±2500Pa, the one-hour leakage rate is ≤0.25% of the test chamber volume (this standard is still met after 5000 open/close cycles).

• Pressure Resistance Range: Standard models can withstand ±2500Pa, with some products capable of reaching 5000Pa, meeting extreme operating conditions.

• Material Compatibility: Resistant to disinfectant gases such as formaldehyde and vaporized hydrogen peroxide; constructed with corrosion-resistant 304/316L stainless steel.

• Service Life: Capable of ≥10,000 open/close cycles while maintaining stable long-term sealing performance.

International Standards: ASME N509, EN 12266-2 (Zero Leakage Certification), ISO 14644 (Cleanrooms), EN 1822 (HEPA/ULPA Testing).

Chinese Standards: GB 50346-2011 "Technical Code for Biosafety Laboratory Buildings", GB 19489-2008 "General Requirements for Laboratory Biosafety".

V. Application Scenarios for Isolation Valves

Air Showers, BIBO, Pass-Through Boxes, Laminar Flow Hoods

High-Level Biosafety Laboratories (BSL-3/4): Installed in main supply/exhaust ducts and before/after BIBO filter housings to isolate pathogens and ensure the safety of maintenance personnel.

Pharmaceutical and Biologic Manufacturing Facilities: Used for isolation between sterile and non-sterile zones to prevent cross-contamination, meeting GMP compliance requirements.

Nuclear Power and Petrochemical Industries: Employed for isolating pipelines carrying radioactive/toxic gases, enabling rapid shut-off under accident conditions.

Food Processing and Medical Sectors: Used for ventilation control in clean zones to prevent microbial contamination, aligning with HACCP system requirements.
