Imagine stepping into a chamber where high-velocity air jets cleanse you of contaminants. What is this marvel? It's an air shower. Essential in contamination control, air showers use powerful air filters to maintain sterile environments. In this post, you'll learn how they work and their role in industries like electronics and pharmaceuticals.

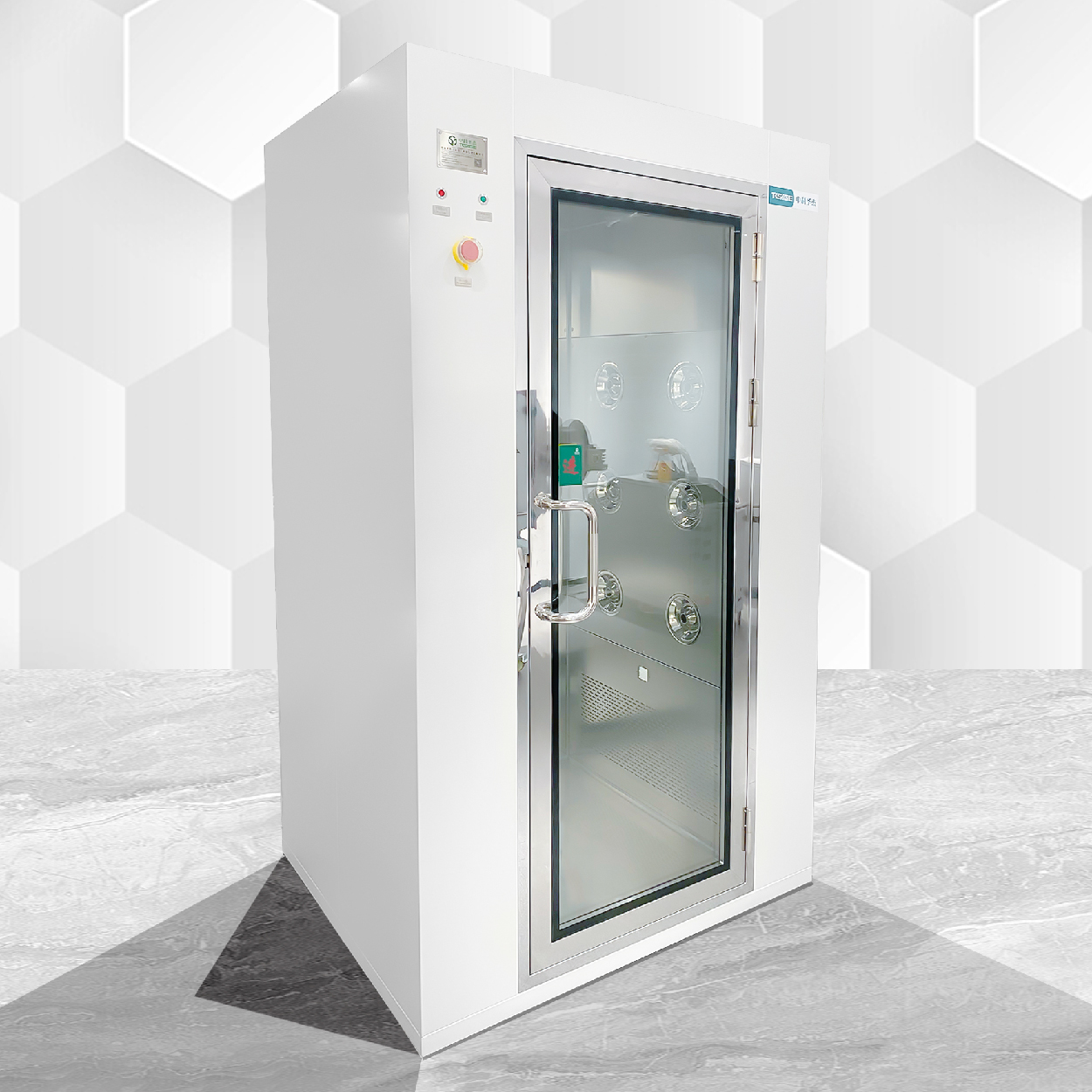

An air shower is a specialized chamber designed to remove contaminants from personnel or objects before entering a clean room or controlled environment. It works by blasting high-velocity, filtered air to dislodge dust, dirt, and biological particles. This process helps prevent contaminants from entering sensitive areas where cleanliness is critical.
The air shower functions as a barrier, ensuring that particles clinging to clothing, skin, or equipment do not compromise the sterile environment. It uses HEPA or ULPA filters to supply clean air at speeds typically between 6,000 and 7,500 feet per minute, enough to shake loose even stubborn particles. The chamber often features interlocking doors to ensure only one door is open at a time, maintaining the clean room's integrity.
Clean rooms require strict control over airborne particles to protect products, processes, and personnel. Air showers serve as a first line of defense by reducing particulate contamination before entry. This is crucial in industries like electronics manufacturing, pharmaceuticals, biotechnology, and medical fields, where even microscopic particles can cause defects or health risks.
In a typical clean room, the allowable particle count is extremely low—often fewer than 100 particles per cubic foot of air. In contrast, normal office air can contain hundreds of thousands of particles. Air showers help bridge this gap by minimizing the transfer of contaminants from outside environments.
By using air showers, facilities maintain the controlled atmosphere essential for product quality and safety. Personnel entering these environments undergo a quick but thorough cleansing cycle, often lasting around 20 seconds, during which they rotate slowly to expose all surfaces to the air jets. This process ensures contaminants are effectively removed from all angles.
Air showers operate by blasting high-velocity air jets onto personnel or objects entering a clean room. These jets, filtered through HEPA or ULPA filters, deliver air at speeds between 6,000 and 7,500 feet per minute. This force dislodges dust, dirt, and biological particles clinging to surfaces. The process typically lasts about 20 to 30 seconds, during which the person inside slowly rotates to expose all sides to the air stream. This rotation helps ensure thorough removal of contaminants.

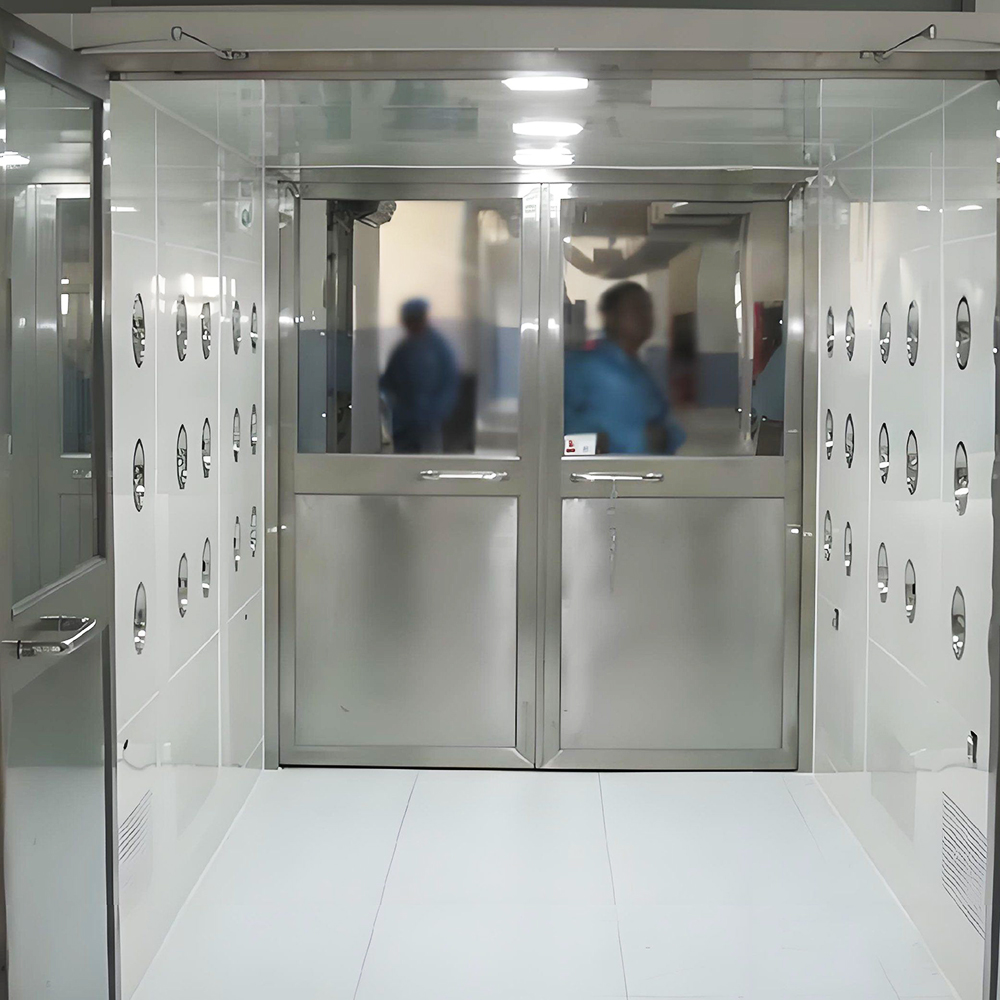

The air shower acts as an air lock between the outside environment and the clean room. It prevents contaminants from entering by removing them before entry. The chamber usually has interlocking doors so only one door can open at a time, maintaining the clean room’s controlled atmosphere.
| Component | Description | Function |
|---|---|---|
| HEPA Filters | High-efficiency filters that capture particles as small as 0.3 microns. | Removes airborne particles to ensure clean air for dislodging contaminants. |
| Centrifugal Blower | A blower that generates high-velocity airflow. | Creates strong air jets to dislodge contaminants from surfaces. |
| Interlocking Doors | Dual doors that lock to prevent simultaneous opening. | Maintains pressure differentials and prevents contamination. |
| Control Panel | System controls for air shower operation, including timers. | Allows operators to manage cycle times and monitor air shower performance. |
| Lighting and Visibility | Internal lighting and transparent panels for visibility. | Ensures proper positioning inside the air shower for effective particle removal. |
| Materials | Stainless steel, aluminum, or other durable materials. | Ensures easy cleaning, longevity, and resistance to corrosion. |
Some air showers include additional features like HEPA-filtered recirculation systems to reduce energy use or ultraviolet lights for added sterilization.
The design aims to maximize air velocity and coverage, ensuring contaminants loosen and are swept away efficiently. Proper sizing accommodates the number of users and the size of items passing through.
Tip: Train personnel on slow, full rotations inside the air shower to maximize contaminant removal and maintain clean room integrity.
Air showers play a crucial role in removing biological contaminants from personnel and objects entering clean rooms. These contaminants include bacteria, viruses, spores, and other microorganisms that could compromise sterile environments. The high-velocity air jets inside the shower dislodge these particles from clothing, skin, and equipment surfaces. The air used is filtered through HEPA or ULPA filters, ensuring no new contaminants enter during the cleaning process.
Biological contaminants often cling to dust or dirt particles on clothing fibers or surfaces. Air showers break this bond by delivering intense bursts of air, shaking loose these particles so they can be captured by the chamber’s filtration system. This process reduces the risk of contamination-related infections, product spoilage, or experimental errors in sensitive industries.
Air showers significantly reduce particulate matter on personnel before they enter controlled environments. Studies and industry reports show that properly used air showers can remove up to 90% of particulates from surfaces. This reduction is critical because even tiny particles can carry microbes or damage delicate manufacturing processes. The effectiveness depends on several factors:
| Factor | Influence on Effectiveness | Impact |
|---|---|---|
| Air Velocity | Air speed of 6,000-7,500 feet per minute is ideal for effective dislodging. | Higher velocities improve particle removal from clothing and surfaces. |
| Duration of Cycle | Cycle times typically last 20-30 seconds. | Longer cycles allow for more thorough cleaning, especially for stubborn particles. |
| User Behavior | Personnel rotating slowly inside the chamber. | Full rotation ensures air reaches all surfaces for complete contaminant removal. |
| Garment Type | Synthetic fibers shed particles more easily than natural fibers. | Choosing the right garments enhances the air shower’s effectiveness. |
By minimizing particulates, air showers help maintain the clean room’s strict particle count limits. This control supports product quality, safety, and compliance with regulatory standards like ISO 14644.
In addition to removing biological contaminants, air showers also reduce chemical residues and dust that could interfere with sensitive processes. Their role as an airlock between contaminated and clean zones is indispensable for contamination control protocols.
Using an air shower correctly is key to maximizing its contamination control benefits. When entering the chamber, stand upright and place your hands on your head or crossed over your chest. This position exposes more surface area to the air jets. Slowly rotate 360 degrees during the cycle, usually lasting about 20 to 30 seconds. This ensures that all sides of your clothing and exposed skin receive thorough air blasting.
Avoid rushing or moving erratically inside the chamber. Quick or jerky movements can reduce the effectiveness of particle removal. Also, do not touch the chamber walls or doors during the cycle to prevent recontamination. Wait for the air shower to complete its full cycle before exiting.
Garment selection plays a significant role in how well contaminants are removed. Synthetic materials like Tyvek or Gore-Tex tend to release particles more easily than natural fibers like cotton or wool. Wearing appropriate cleanroom garments designed for low particle shedding enhances the air shower’s efficiency.
Proper training is essential for personnel. Training programs should cover how to position oneself, rotate fully, and understand the timing of the air shower cycle. Staff should also be aware of the importance of not bypassing the air shower or rushing through it, as this compromises the clean room’s environment.
Training ensures users understand the critical role air showers play in contamination control. It teaches correct entry and exit procedures, proper body positioning, and the need for slow, full rotations. Training also emphasizes the importance of adhering to cycle times and not opening both doors simultaneously.
Garment choice impacts particle shedding and removal. Cleanroom-approved garments made from low-shedding synthetic fibers help minimize contamination risks. These materials allow air jets to dislodge particles easily, improving the air shower’s overall effectiveness. Conversely, natural fibers tend to trap particles, making removal harder.
Facilities should establish clear protocols for garment use, including laundering and maintenance, to keep contamination levels low. Personnel should be reminded regularly about the connection between garment type, air shower performance, and clean room integrity.
Tip: Train all personnel on slow, full rotations and proper hand positioning during air shower cycles to ensure maximum contaminant removal and maintain clean room standards.
Air showers are vital in many industries where contamination control is critical. They help protect sensitive processes and products by removing particles and microbes before personnel or equipment enter clean rooms or controlled environments.
In electronics manufacturing, air showers play a key role. Building integrated circuits, semiconductors, or microchips requires ultra-clean environments. Even tiny dust particles can cause defects or failures in these delicate devices. Air showers reduce particulate contamination on workers and tools, minimizing product defects and improving yield rates. The high-velocity air blasts remove dust and skin flakes that could otherwise settle on circuit boards or wafers.
Pharmaceutical companies rely heavily on air showers to maintain sterile conditions during drug development and production. Contamination could spoil medications or cause harmful reactions. Air showers help remove biological contaminants, such as bacteria and spores, from personnel entering clean rooms. In biotechnology, where experiments involve cells or biomolecules, contamination control is just as critical. Air showers protect sensitive research and manufacturing processes by limiting microbial and particulate intrusions.
Hospitals and medical device manufacturers also benefit from air showers. Surgical suites and sterile processing areas require strict contamination control to prevent infections. Air showers remove contaminants from staff clothing before they enter operating rooms or clean zones. Medical device production demands similar cleanliness to avoid defects or contamination of implants and instruments. Air showers help maintain these sterile environments, supporting patient safety and product quality.
Across these industries, air showers act as a reliable barrier against contamination. They ensure environments meet strict cleanliness standards, protect product integrity, and support regulatory compliance. Proper use and maintenance of air showers remain essential to maximize their benefits in these critical fields.
| Industry | How Air Showers Help | Key Benefits |
|---|---|---|
| Electronics Manufacturing | Removes dust and skin flakes from workers and tools. | Improves yield rates and reduces defects in sensitive components. |
| Pharmaceuticals | Removes biological contaminants from personnel before drug production. | Ensures product purity and compliance with regulatory standards. |
| Medical Industry | Prevents contamination in operating rooms and sterile areas. | Protects patient safety and ensures high-quality medical devices. |
| Biotechnology | Removes microbial and particulate contaminants from research environments. | Maintains sterile conditions for experiments involving cells and biomolecules. |
Air showers come in various sizes and materials to fit different clean room needs. Tailoring dimensions ensures the chamber suits the number of users and the size of objects passing through. For example, a facility handling large equipment might need a wider or taller air shower than one used only for personnel. Modular designs allow easy expansion or reconfiguration, adapting to changing operational demands.
Materials used in air shower construction impact durability, cleanliness, and maintenance. Stainless steel is popular for its corrosion resistance and ease of cleaning, making it ideal for pharmaceutical or biotech environments. Aluminum offers a lighter, cost-effective option, often used in electronics manufacturing. Some air showers incorporate plastics or coated surfaces to reduce particle shedding or static buildup.
Compliance with international and federal standards is critical for air shower design and operation. ISO 14644 outlines clean room classifications and air cleanliness levels, guiding air shower performance requirements. Air showers must help maintain these levels by effectively reducing particulate contamination. In the United States, federal regulations and guidelines also influence air shower standards, including OSHA safety requirements and ADA accessibility rules.
Interlocking door systems, airflow velocity, filtration efficiency, and cycle timing must meet these standards to ensure reliable contamination control. For example, HEPA filters used in air showers must capture at least 99.97% of particles 0.3 microns or larger. Air velocity typically ranges from 6,000 to 7,500 feet per minute to dislodge particles effectively.
Facilities often validate air shower performance through testing and certification, ensuring ongoing compliance. Regular maintenance, filter replacement, and calibration keep the system operating within required parameters. Customization combined with strict adherence to standards guarantees that air showers provide optimal contamination control tailored to each facility’s unique needs.
Air showers play a crucial role in removing contaminants before entering clean rooms, ensuring sterile environments. They benefit industries like electronics, pharmaceuticals, and healthcare by reducing particulates and biological contaminants. Future prospects in contamination control include enhanced air shower designs and technologies. Cigeair offers advanced air showers, providing effective contamination control solutions tailored to various industries. Their products ensure high efficiency and compliance with international standards, supporting clean room integrity and product quality.
A: Air showers use HEPA or ULPA filters to deliver clean air jets that dislodge particles from surfaces, ensuring contaminants are removed before entering a controlled environment.
A: Air showers reduce particulate contamination, protecting products and processes in industries like pharmaceuticals, electronics, and biotechnology.
A: Air showers with air filters remove up to 90% of particulates, maintaining clean room integrity and supporting product quality and compliance.
