What Are The Design And Installation Methods of PuriFan EFU？

Very low volatile materials

Very low volatile materials are selected to meet the extreme cleanliness requirements of the EFU installation process section. For example, if there are requirements for controlling gaseous molecular contaminants, PTFE filter or chemical filter can be selected

Structure and installation method

The body structure includes stereo, integrated, and disassembled types

Installation: Vertical and horizontal installation

Low noise and low vibration design

Adopts DC brushless motor with high efficiency and low energy consumption (domestic and EBM to respond to different customer requirements)

Adopts impeller with high efficiency and low noise, with the dynamic balance grade of G2.5

Adopts strict testing process to ensure that each delivered product is 100% qualified

Dedicated controller

Stand-alone control: Can be operated even without communication

Control display: The controller can display basic information (speed, fault, address)

System connection: Seamless access to customer control system for real-time "monitoring" of EFU.

History query: Set EFU status to LIST, so customers can freely query the operation and status records in any time period.

It can be used as the industrial standard Modbus RTU

Ultra-thin cabinet design

Suitable for use in various space, with the cabinet size as small as 4x4: 160 mm and 2x4:110 mm

Light weight, easy installation and convenient maintenance

A variety of materials available for selection (stainless steel, aluminum, and galvanized iron)

Diversified design

Customizability: Customize the shape and size according to customer needs

Flexibility: Disassembly and maintenance can be completed from within the STOCKER and EQ

Stability: Motor bearing is normal after running 100000H

Intelligence: The unit is compatible with customers' systems and can realize real-time monitoring around the clock

Fool-proof: The unit is equipped with unique power and communication terminal interface to avoid wiring errors

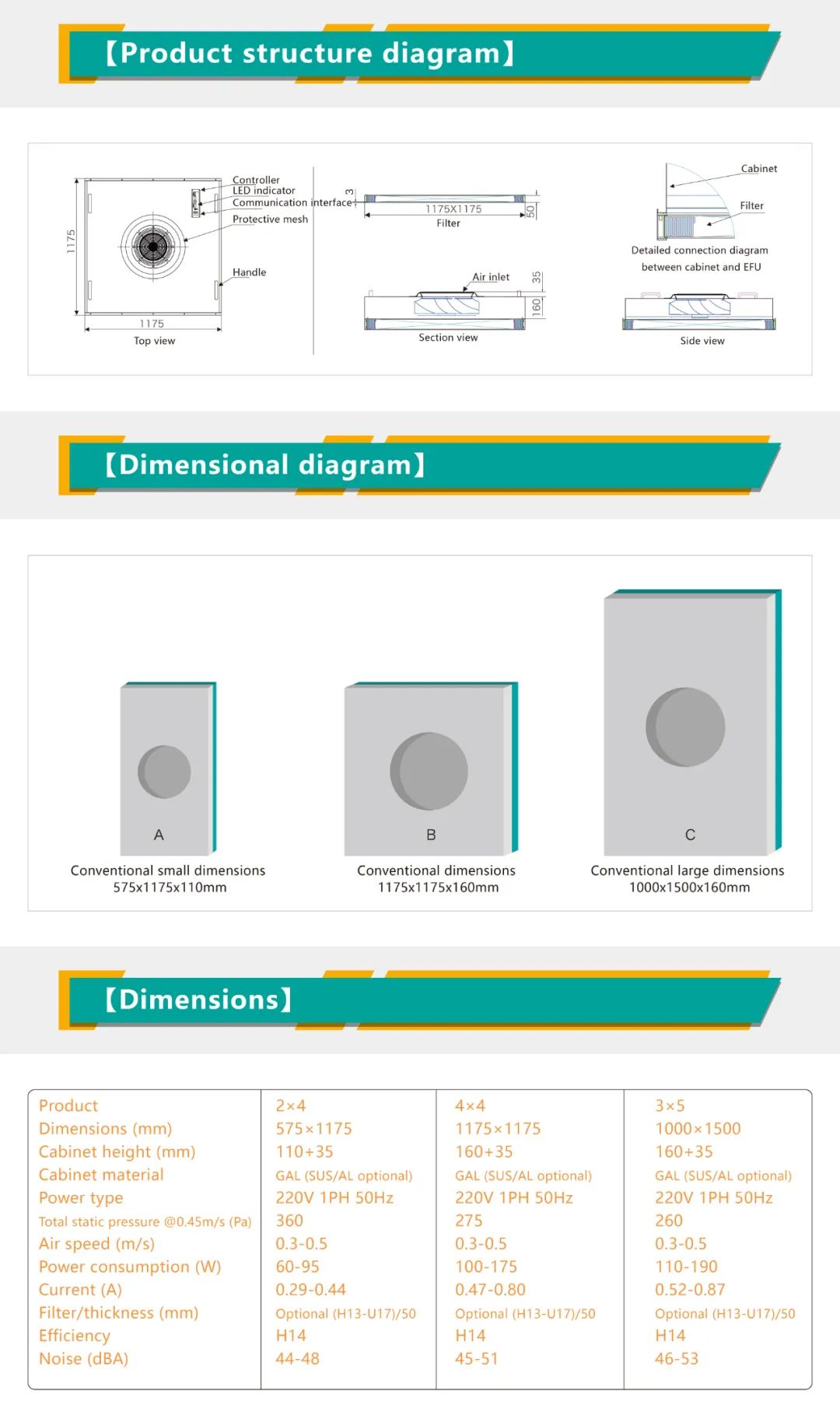

EFU installation diagram

The EFUs are installed in cleanrooms to improve the cleanliness of critical process sections within the micro-environment and can be installed horizontally or vertically
