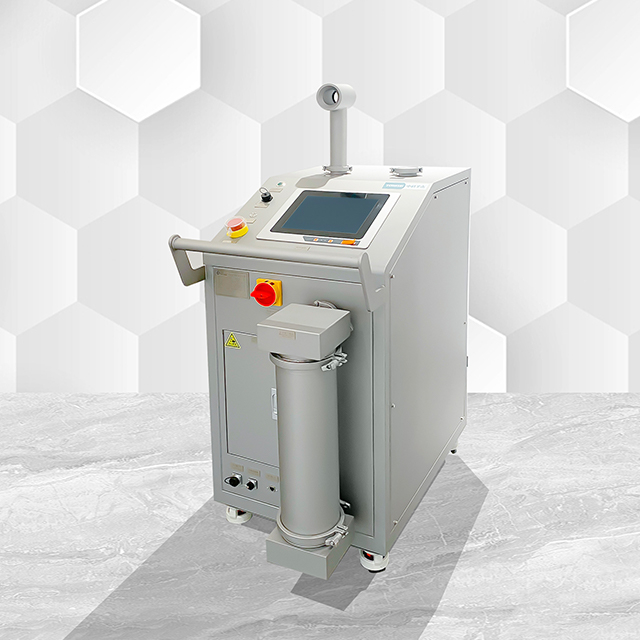

| TKSAGE EN II VHP Generator | |||||||||||||
| Sterilization space (m3) | 0-200m3 | ||||||||||||
| Hydrogen peroxide concentration range | 0-2000ppm | ||||||||||||
| Hydrogen peroxide vaporization rate | 0--15m/min | ||||||||||||
| External dimensions (w*h*d)(mm) | 500mm* 900mm* 700mm | ||||||||||||
| Max power (W) | 2000W | ||||||||||||
| Power supply | 220V, 50Hz | ||||||||||||
For surface disinfection and low-temperature surface sterilization
Applications of TKSAGE-EN II VHP generator
| Isolator | TKSAGE- ENII VHP generator is suitable for low-temperature surface sterilization in small confined spaces, providing a closed sterilization loop to achieve sterilization and degradation in one equipment. This sterilization method complies with FDA and cGMP guidelines. The sterilization is realized by using VHP sterilant, without residue. | |||
| VHP pass box | ||||
| BIBO | ||||
| BSC biosafety cabinet | ||||
| Freeze dryer | ||||
| VHP sterilization room | ||||
| Other small airtight space | ||||
Principle of TKSAGE- EN II VHP generator
TKSAGE-EN uses low-temperature flash vaporization technology to achieve complete vaporization of hydrogen peroxide; The process saturation control technology is adopted to realize no liquefaction and no condensation in the whole process of sterilization; The process monitoring parameters include: temperature, relative humidity, hydrogen peroxide concentration and vapor saturation; The adjustment parameters include: flash temperature, circulating air volume, and peristaltic pump injection rate; The safety control parameters include: hydrogen peroxide concentration, saturation and hydrogen peroxide residual concentration; The VHP generator is integrated with the catalytic degradation, making the sterilization more convenient and faster. |  |  |

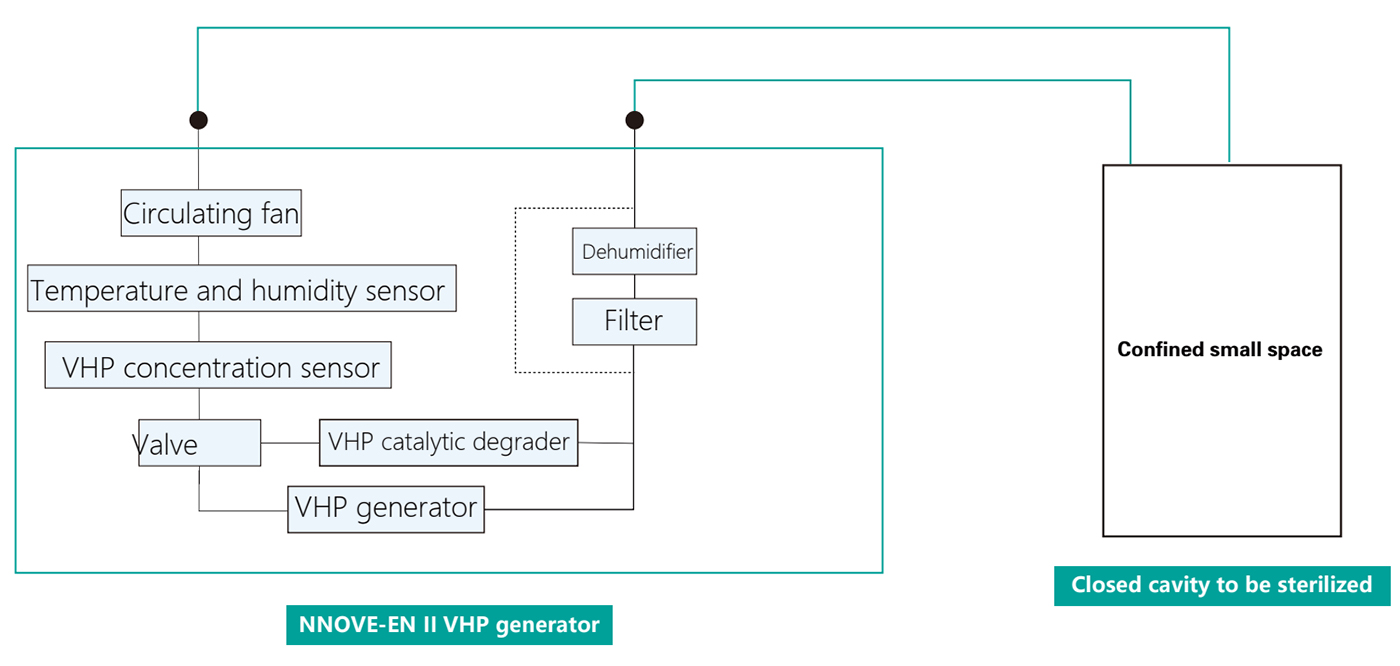

Pipeline connection

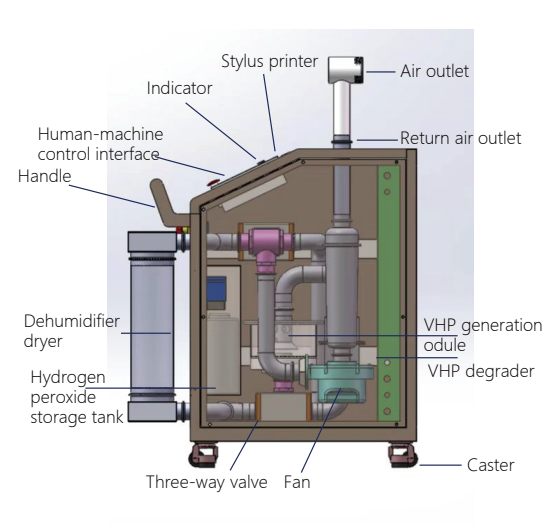

| Drawings of TKSAGE-EN II VHP generator | Pipeline connection diagram |
 |  |

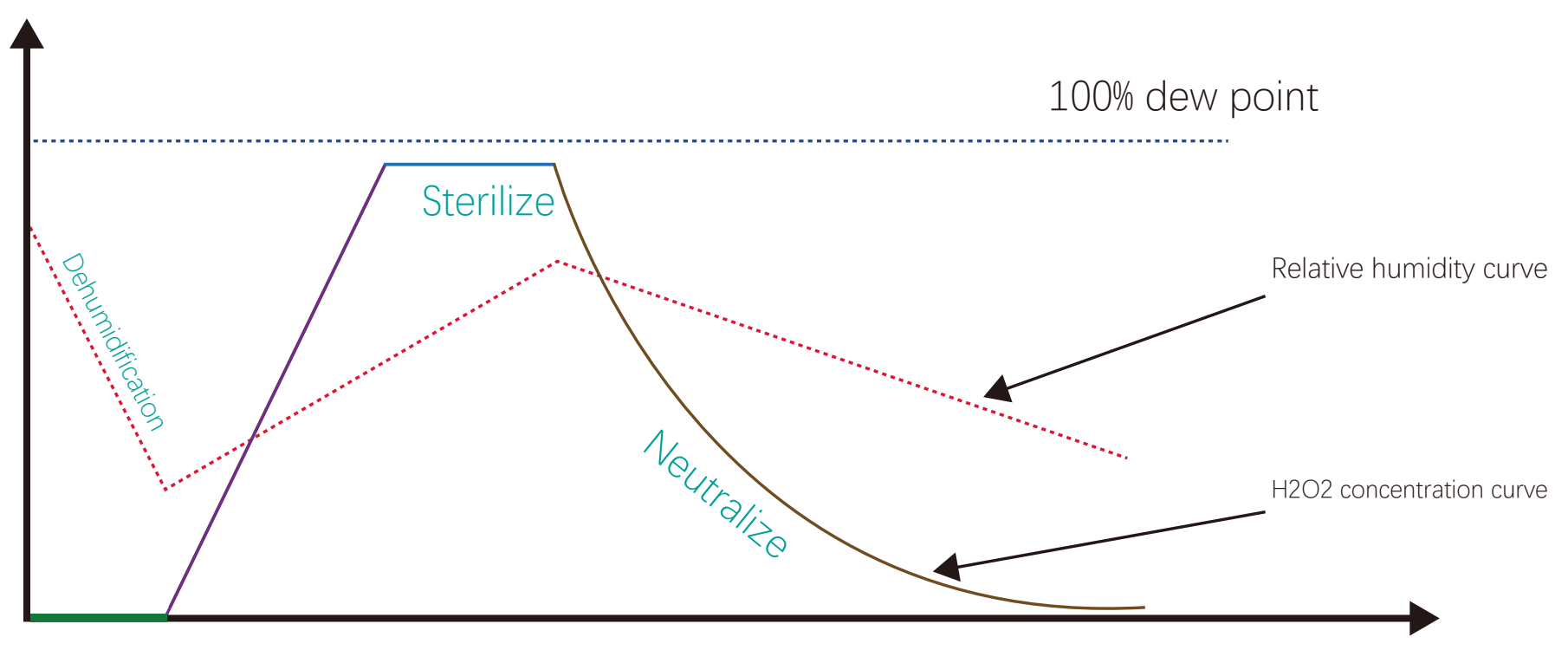

VHP sterilization curve
The sterilization process is divided into four stages: start, balance, sterilize and degrade
Start: Before sterilization starts, the equipment automatically determines whether the sterilization conditions meet sterilization start requirements,i.e.: temperature>15°C, 40%< RH%<60%; automatic dehumidification will start if the
humidity is high;
Balance: The VHP generator starts to produce hydrogen peroxide vapor and circulates it between the cavity and the equipment until it reaches a preset concentration or saturation level;
Sterilize: The equipment starts to record the sterilization effect until the preset sterilization LOG value is reached.
Degrade: At the end of the sterilization process, the equipment automatically enters the VHP degradation stage, which starts to catalyze the degradation of the hydrogen peroxide vapor inside the equipment and the chamber until it reaches the set hydrogen peroxide concentration.
