Have you ever wondered how cleanrooms stay free of contaminants? The secret lies in air showers. These systems play a crucial role in maintaining cleanliness by using high-velocity air filters to remove particles. In this post, you'll learn what air showers are, their importance in cleanrooms, and how they work to ensure a sterile environment.

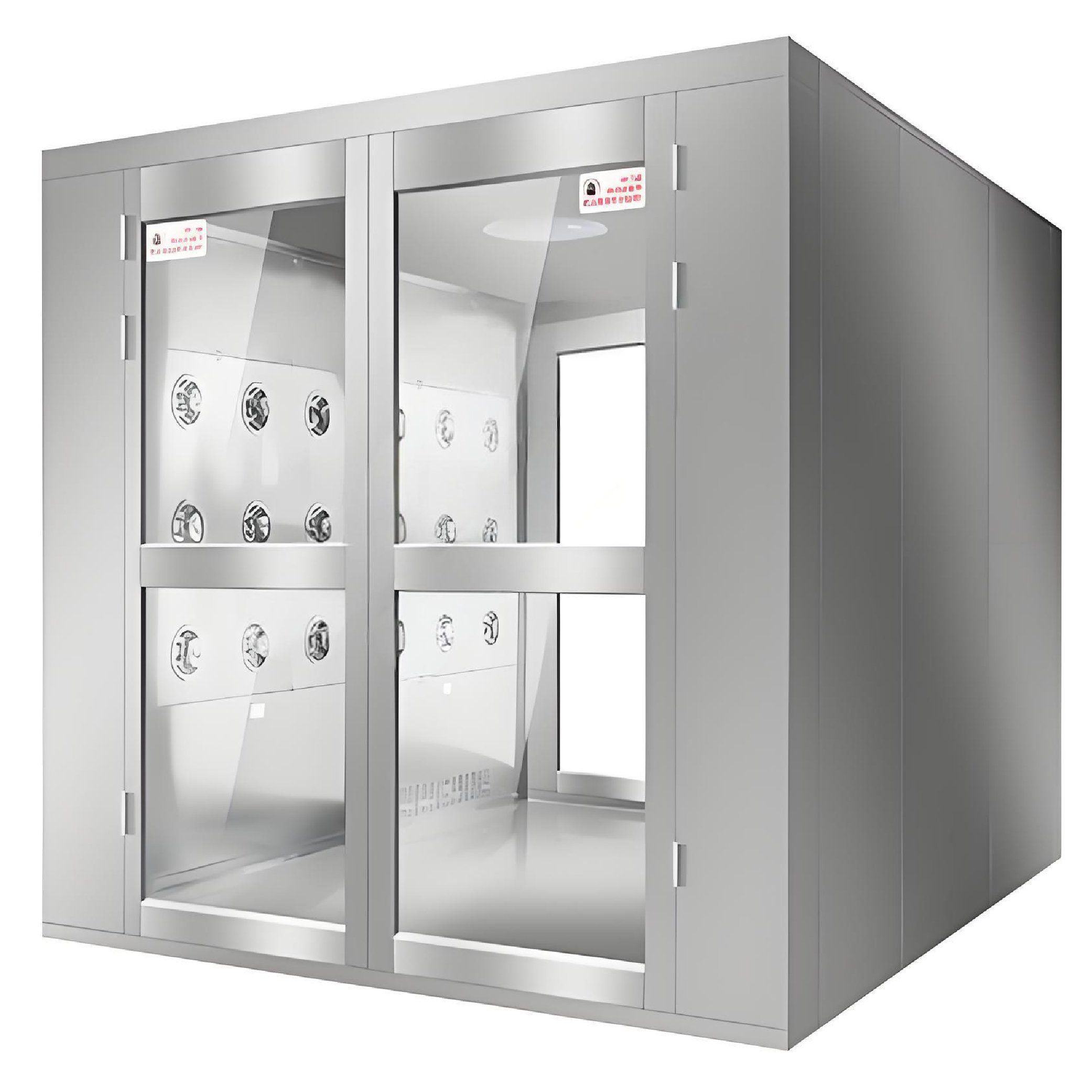

Air showers play a crucial role in maintaining cleanroom integrity by removing contaminants from personnel or materials before entry. They operate through a combination of high-velocity airflow, dual locking doors, and an effective particulate scrubbing process.
At the heart of an air shower is a powerful blower that pushes HEPA-filtered air at high speeds—typically around 22 to 25 meters per second (or about 8,000 feet per minute). This air blasts out through multiple nozzles arranged on the ceiling and walls of the chamber. The fast-moving air dislodges particles such as dust, skin flakes, hair, and fibers from clothing and exposed surfaces.
This airflow is carefully controlled to create a "scrubbing" effect. The air streams flap or pulsate to maximize particle removal, pushing contaminants downward toward filter grilles. This ensures that particles don’t simply get blown around but are effectively captured and removed.
Air showers feature two interlocked doors—one leading into the air shower from the outside, the other from the air shower into the cleanroom. These doors cannot open simultaneously, forming an airlock that prevents contaminants from passing directly into the cleanroom.
When a person or material enters, the first door closes and locks automatically. The air shower cycle then begins, blowing high-velocity air for a set duration, usually between 4 to 40 seconds depending on the system and application. Only after the air shower cycle completes and the chamber is purged of particles does the second door unlock, allowing entry into the cleanroom.
This dual-door system ensures a controlled environment, preventing external contaminants from sneaking in during the cleaning process.
Entry and sealing: The individual or object enters the air shower and the first door locks.
Air blasting: The blower activates, sending high-speed, HEPA-filtered air jets from nozzles positioned strategically around the chamber.
Particle removal: The air jets dislodge particles clinging to surfaces, pushing them toward return air grilles.
Filtration: The dislodged particles are trapped by HEPA filters, which remove 99.99% of particles 0.3 microns or larger.
Purge and exit: After the air blast, a short purge cycle clears remaining particles. Then, the second door unlocks, allowing entry into the cleanroom.
This cycle may last from 4 to 40 seconds, depending on the cleanroom’s classification and contamination risk.
Air showers rely on several key components working together to remove contaminants effectively. These parts ensure the system operates smoothly and maintains cleanroom standards.
The HEPA filter is the heart of the air shower's cleaning power. It captures 99.99% of particles 0.3 microns or larger. These filters remove dust, skin flakes, fibers, and other tiny contaminants from the air before it blasts onto personnel or materials. Most air showers use H13 or H14 grade HEPA filters for high efficiency. Often, a pre-filter is installed before the HEPA filter to trap larger particles, extending the HEPA filter's life and maintaining airflow.
The filters are usually housed inside the air shower chamber and require regular maintenance to keep performance optimal. Clean, functioning filters ensure the air shower blows only clean, contaminant-free air during the cycle.
The blower generates the high-velocity airflow needed to dislodge particles. It pulls air through the HEPA filter and pushes it out through nozzles at speeds of 22 to 25 meters per second (about 8,000 feet per minute). This strong airflow creates the “scrubbing” effect that knocks contaminants off clothing or surfaces.
Most air showers use a centrifugal blower because it can produce steady, powerful airflow while operating quietly and efficiently. Some units have dual blowers for more airflow volume or redundancy. The blower's motor power typically ranges from 0.5 to 1 kW, depending on the air shower size and application.
Air showers feature two interlocked doors forming an airlock. Only one door opens at a time, preventing contaminants from bypassing the cleaning cycle. The first door locks after entry, triggering the blower and air shower cycle. Once complete, the second door unlocks, allowing entry into the cleanroom.
The controller manages the timing and operation of the air shower cycle. It adjusts the duration of the air blast and purge phases, typically between 4 and 40 seconds. Advanced controllers may include programmable logic, alarms, and status indicators for smooth operation and safety.
The door interlock system often uses magnetic or mechanical locks controlled by the controller. This prevents human error and ensures the cleanroom stays protected.
| Component | Description | Function |
|---|---|---|
| HEPA Filter | High-Efficiency Particulate Air filter | Captures 99.99% of particles, ensuring clean air blows through nozzles |
| Centrifugal Blower | Motor-powered fan generating high-velocity air | Blasts air through nozzles, dislodging particles from surfaces |
| Interlocked Doors | Dual door system, preventing both from opening simultaneously | Maintains airlock, ensuring no contamination enters during air shower cycle |
| Controller | Automated system managing air shower operation | Controls air blast duration, interlock mechanism, and system diagnostics |
Air showers play a vital role in keeping cleanrooms free from contaminants. Their use offers several key benefits that help maintain product quality, improve cleanroom performance, and reduce overall costs.
Air showers act as a first line of defense by removing particles like dust, skin flakes, fibers, and other contaminants from personnel or materials before they enter the cleanroom. The high-velocity, HEPA-filtered air blasts off these particles effectively, preventing them from entering sensitive environments. This significantly lowers the chance of contamination, which can otherwise ruin products such as pharmaceuticals, microelectronics, or aerospace components.
By ensuring contaminants are scrubbed off at the entrance, air showers reduce the frequency of costly batch failures and product recalls. They also minimize the risk of cross-contamination between different cleanroom zones, helping facilities meet strict cleanliness standards.
Less particulate buildup: Since fewer contaminants enter, surfaces and equipment stay cleaner longer.
Reduced cleaning frequency: Maintenance teams spend less time wiping down surfaces and cleaning filters.
Extended HEPA filter life: Filters inside the cleanroom don’t clog as quickly, maintaining airflow and filtration performance.
This means cleanrooms can operate more smoothly, with fewer interruptions or costly downtime. Employees benefit from a safer, more controlled environment, which helps maintain high productivity and product quality.
Though air showers require an initial investment, their cost is small compared to the potential losses from contamination events. Installing an air shower can save money over time by:
Preventing product loss: Avoiding contamination-related batch failures reduces waste and rework costs.
Lowering maintenance expenses: Less particulate means fewer filter replacements and cleaning cycles.
Increasing operational uptime: Cleanrooms run more reliably, avoiding costly shutdowns for cleaning or repairs.
Furthermore, air showers are relatively low-maintenance. Regular filter checks and blower servicing keep them running efficiently without adding significant labor or expense.
| Benefit | Description | Impact on Cleanroom Operations |
|---|---|---|
| Reducing Contamination | Removes dust, lint, and particles from personnel or materials before entering cleanroom | Reduces particle load in cleanroom, minimizing product defects and contamination |
| Enhanced Cleanroom Efficiency | Reduces particulate buildup, leading to less frequent cleaning and extended filter life | Saves time on cleaning, improves airflow, and enhances productivity |
| Cost-Effectiveness | Prevents contamination-related product loss and reduces filter maintenance costs | Reduces downtime, maintenance, and long-term operational costs |
| Extending Filter Lifespan | Protects HEPA filters and reduces clogging | Prolongs the lifespan of expensive filters, reducing replacement costs |
Tip: Regularly inspect and maintain HEPA filters in air showers to ensure optimal particle removal and maximize cleanroom protection.
Air showers serve as a critical barrier against contamination in various industries. They help ensure that cleanroom environments stay free from particles that could damage products or disrupt sensitive processes.
Pharmaceuticals: Protects drug manufacturing from contaminants that could spoil batches.
Biotechnology: Keeps research environments free from unwanted particles.
Microelectronics: Prevents dust from damaging tiny circuit components.
Aerospace: Ensures parts meet high precision and cleanliness requirements.
Nanotechnology: Controls particles that could interfere with microscopic processes.
Food Processing: Reduces risk of contamination in sensitive food production areas.
These sectors demand high purity levels, making air showers essential for meeting regulatory and quality standards.
Personnel Decontamination: Workers pass through air showers that blast away dust, skin flakes, and fibers from clothing and exposed surfaces. This reduces contamination risks brought in by humans.
Material Decontamination: Carts, tools, and equipment can be cleaned in specialized air showers designed for materials. This replaces manual wiping, saving time and improving consistency.
By removing contaminants upfront, air showers help maintain the cleanroom’s environment and reduce costly cleaning cycles inside.
Single-Person Units: Compact models for low-traffic cleanrooms.
Multi-Person or Tunnel Units: Larger setups for high-volume personnel flow.
Material Air Showers: Designed to accommodate carts or bulky equipment.
Custom Sizes and Shapes: Options like U-shaped or L-shaped chambers to fit space constraints or workflow patterns.
Materials used vary too, including stainless steel for pharmaceutical use or painted aluminum for electronics. Controls and interlock systems can be tailored for security and operational preferences.
This flexibility allows facilities to select air showers that best match their contamination control needs, space, and budget.
Tip: When selecting an air shower, consider both personnel and material decontamination needs to maximize contamination control throughout your cleanroom operations.
Air showers come in various types, designed to fit different cleanroom needs, sizes, and workflows. Choosing the right type helps maximize contamination control and operational efficiency.
Single-person air showers are compact units meant for one individual at a time. They are ideal for small cleanrooms or low-traffic areas where only occasional entry occurs. These units typically have two interlocked doors and a chamber just large enough for a person to stand comfortably while the air blast removes contaminants.
Multi-person air showers, often called tunnel air showers, accommodate several people simultaneously. These larger units suit high-traffic cleanrooms or facilities with shift changes involving many employees entering or exiting at once. Tunnel air showers can be several feet long and wide enough to allow multiple people to pass through side-by-side or in sequence. This design reduces bottlenecks and speeds up personnel flow while maintaining effective decontamination.
Tunnel air showers are elongated chambers designed for high-volume personnel traffic. They can be modular, allowing multiple units to be linked together to increase length or width depending on the facility’s needs. These units often feature multiple nozzles along the walls and ceiling to ensure thorough cleaning of several people at once.
Cart air showers are specialized units designed to clean materials, tools, or equipment on carts before entering the cleanroom. These units usually have roll-up or sliding doors to accommodate large or bulky items. The air jets inside remove dust and particles from surfaces, replacing manual wiping and saving time. Cart air showers are essential in industries where materials must remain contaminant-free, such as pharmaceuticals or microelectronics.
U-Shaped Air Showers: These units have a U-shaped chamber allowing personnel to enter and exit from different points, helping streamline movement and reduce cross-contamination risks. This shape is useful in tight spaces or where directional flow control is vital.
L-Shaped Air Showers: L-shaped designs fit corner spaces or integrate with existing cleanroom layouts. They provide effective air blasting while optimizing floor space.
These geometric variations provide flexibility, allowing facilities to customize air showers to their unique spatial and operational requirements.
Choosing the right air shower for your cleanroom is key to keeping contamination under control. Several factors affect performance, installation, and maintenance. Let’s explore the main considerations to help you make an informed decision.
Stainless Steel: Ideal for pharmaceutical, biotech, or food industries due to corrosion resistance and easy cleaning.
Powder-Coated Steel: Common in electronics or general manufacturing cleanrooms; offers durability at a lower cost.
Laminated Panels: Used in less demanding environments, providing lighter weight and modular flexibility.
Design also matters. Consider ceiling height, door placement, and chamber size. Some air showers have low-profile designs to fit existing cleanroom ceilings. Shapes vary too—U-shaped or L-shaped units help fit tight spaces or optimize workflow.
HEPA Filters: H13 or H14 grade filters capture 99.99% of particles 0.3 microns or larger.
Pre-Filters: Trap larger particles and extend HEPA filter life.
Check filter accessibility for easy replacement and maintenance.
Interlock systems control the doors, preventing both from opening simultaneously. Magnetic or mechanical locks are common. Advanced controllers allow programmable cycles, alarms, and status displays. Reliable interlocks reduce human error and maintain cleanroom integrity.
Ease of Shipping and Installation: Components arrive pre-assembled or in sections, simplifying onsite setup.
Scalability: Modules can be added or reconfigured as cleanroom needs evolve.
Cost Efficiency: Modular units often reduce installation time and labor costs.
Air showers are essential for maintaining cleanroom integrity by effectively removing contaminants. They enhance cleanroom efficiency, reduce contamination risks, and offer cost-effective maintenance benefits. Integrating air showers into cleanroom operations ensures optimal performance and product quality. By investing in air shower technology, companies can safeguard their cleanroom environments. Consider implementing air showers from TKSAGE for superior contamination control and enhanced cleanroom performance.
A: An air shower uses a HEPA air filter to clean the air before blasting it onto personnel or materials, ensuring that only contaminant-free air is used in the scrubbing process.
A: Air filters are crucial in air showers because they remove particles from the air, ensuring that the high-velocity air used to clean surfaces is free of contaminants.
A: The cost of an air shower varies based on size, type, and features. Modular designs and advanced air filter systems may increase the price.
A: Air showers reduce contamination risks, enhance cleanroom efficiency, and are cost-effective due to their use of HEPA air filters, which extend filter life and reduce maintenance.
