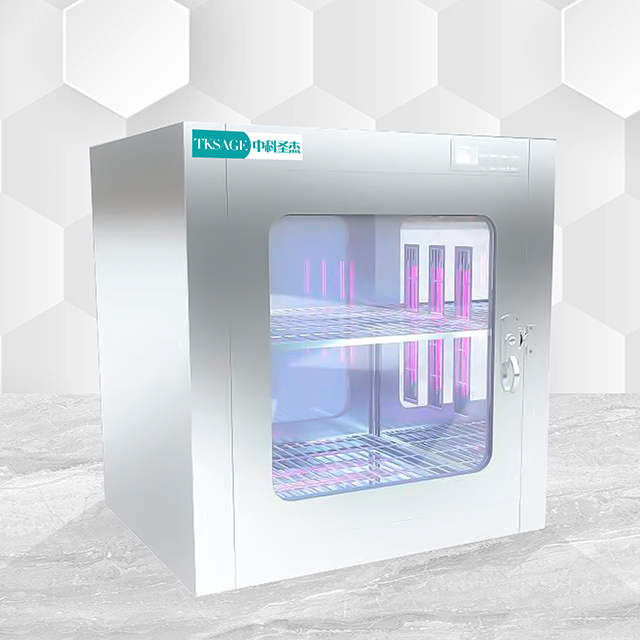

Xenon Light Pass Box

Core Parameters

The product is equipped with a closed-loop sealed rectangular ultra-strong nanocatalytic magnetic lamp on the top, featuring a power of 200W, a specific wavelength of 185--254nm, an operating temperature range of -25°C to 10°C, and a UV intensity ≥1000 μW/cm. It is fitted with a specially tuned dedicated power system to extend the lifespan to ≥60000H.

The transfer box is equipped with three sets of built-in high-energy pulse sterilization components, each comprising three pulse sterilization lamps. Each lamp has a rated power of 1KW per lamp, a rated power supply of 2KV per lamp, and a luminous mainte- nance ≥95%, an alternating flash with a flashing frequency of 2-3 times per second, achieving 360° sterilization without dead angles.

Additionally, each set is fitted with a specially tuned dedicated power system to extend the lifespan to ≥20000H.

Adopts a dual-door electronic interlock device made of stainless steel, equipped with an LCD for displaying the working status, setting sterilization timing, alarm reminder, and other multi-functional parameters.

Sterilization range: Bacteria,viruses, spores, nucleic acids, etc.

Bacterial  killing  efficiency:  Sterilization  time  ≥5min,  total  sterilization  rate  ≥99%  (with third-party testing report provided).

Material pass-through time: ≤5min, 360° sterilization without dead angles.

Observation window: With dimensions of 450*450, 8mm thick tempered glass; shock and UV resistant.
